神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (01-007) - FAN AND PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1000 次

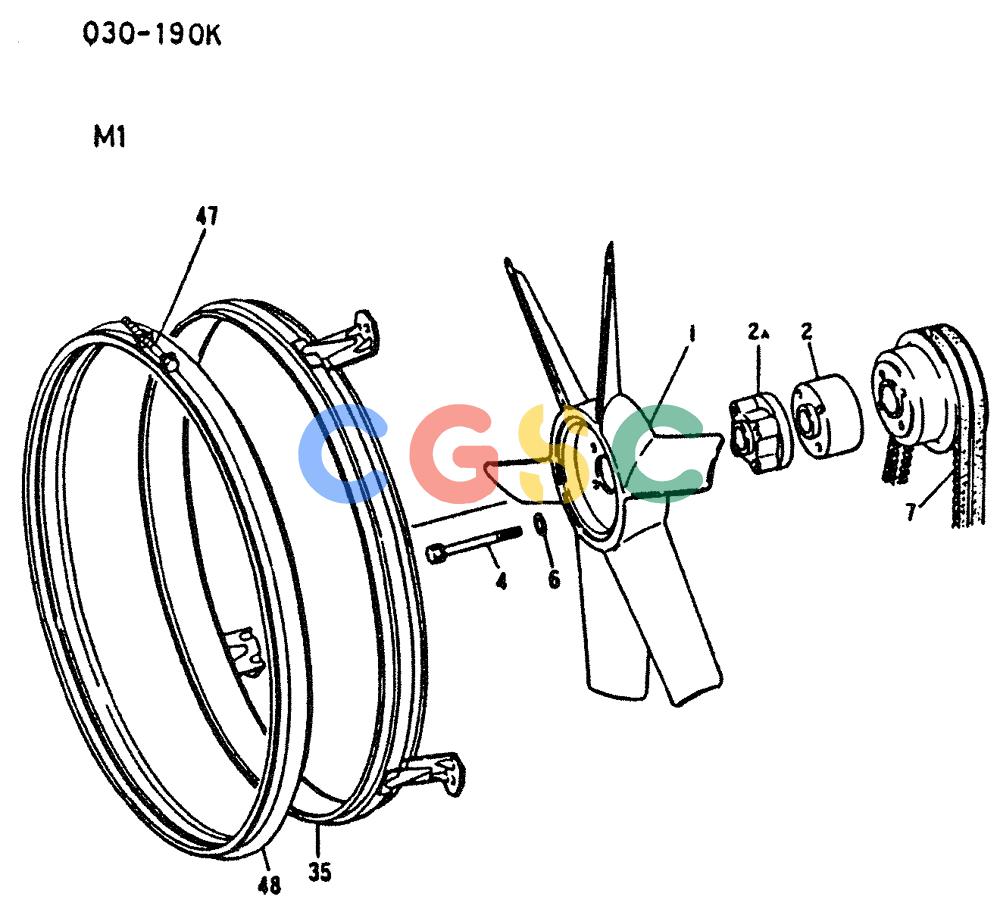

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME070130 | [1] | FAN | KOBFAN,SUCTION TYPE PPG D=600 |
| 2. | VAME038888 | [1] | SPACER | KOBSPACER,FAN L=45 |
| 2A. | VAME047507 | [1] | SPACER | KOBSPACER,FAN L=110 |
| 4. | VAMH000830 | [4] | BOLT,FLANGE 10X110 | |
| 6. | VAMH005027 | [4] | WASHER | KOBWASHER,PLAIN 10 |
| 7. | VAME035061 | [1] | BELT, TRANSMISSION | KOBV-BELT,2 BELTS SET B L=1050 Superseded by part number: VAME902741 |
| 35. | VAME047494 | [1] | SHROUD,FAN | |
| 47. | VAMC012772 | [1] | CLAMP | KOBCLAMP,SEAL |
| 48. | VAMC015988 | [1] | OIL SEAL | KOBSEAL,SHROUD |
