神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (01-008) - OIL PUMP AND GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
139 次

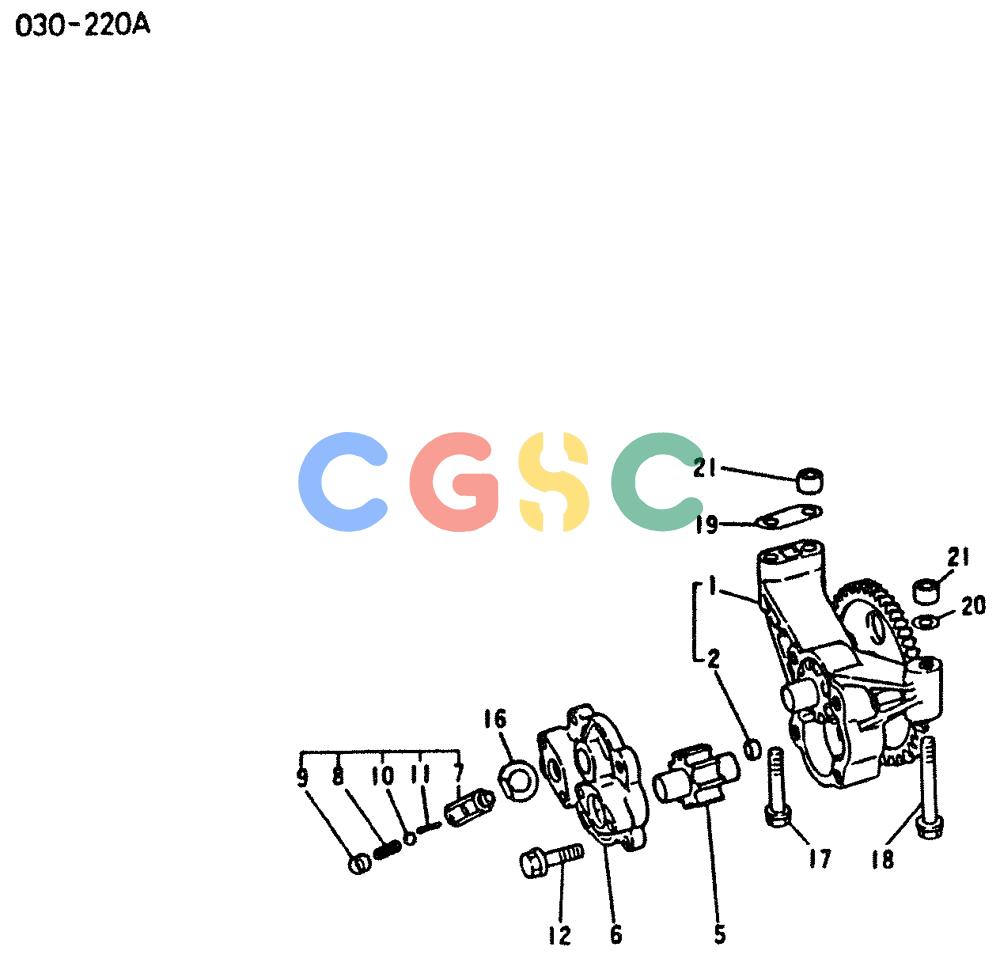

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-16. | VAME034664 | [1] | PUMP | KOBOIL PUMP ASSY |
| 1-2. | VAME034663 | [1] | OIL PUMP GEAR & CASE ASSY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR & CASE,0/PUMP |
| 2. | VAMS471107 | [1] | BUSHING | KOBBUSHING,KNOCK |
| 5. | VAME034668 | [1] | DRIVEN GEAR ASSY | |
| 6. | VAME034064 | [1] | COVER COVER,0/PUMP CASE | COVER COVER,0/PUMP CASE |
| 7-11. | VAME034061 | [1] | HYDRAULIC VALVE | KOBVALVE ASSY |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCASE,VALVE |
| 8. | VAME034013 | [1] | SPRING | KOBSPRING, RELIEF/V |
| 9. | VAME034014 | [1] | SEAT SEAT,SPG | SEAT SEAT,SPG |
| 10. | VAMF540014 | [1] | BALL BALL,STEEL 14 | BALL BALL,STEEL 14 |
| 11. | VAMF472085 | [1] | PIN | KOBPIN SPLIT 4X30 |
| 12. | VAMH000715 | [4] | SCREW | KOBBOLT,FLANGE 10X35 Superseded by part number: 133276A1 |
| 16. | VAME034063 | [1] | WASHER | KOBWASHER,LOCK |
| 17. | VAMH000709 | [1] | BOLT | KOBBOLT,FLANGE 10X50 |
| 18. | VAMH000712 | [2] | SCREW | KOBBOLT,FLANGE 10X65 |
| 19. | VAME034281 | [1] | SHIM | KOBSHIM RH T=0.1 |
| . . | VAME034282 | [1] | SHIM | KOBSHIM RH T=0.2 |
| 20. | VAME034283 | [1] | SHIM | KOBSHIM LH T=0.1 |
| . . | VAME034284 | [1] | SHIM | KOBSHIM LH T=0.2 |
| 21. | VAME031099 | [2] | PIN | KOBPIN,DOWEL |
