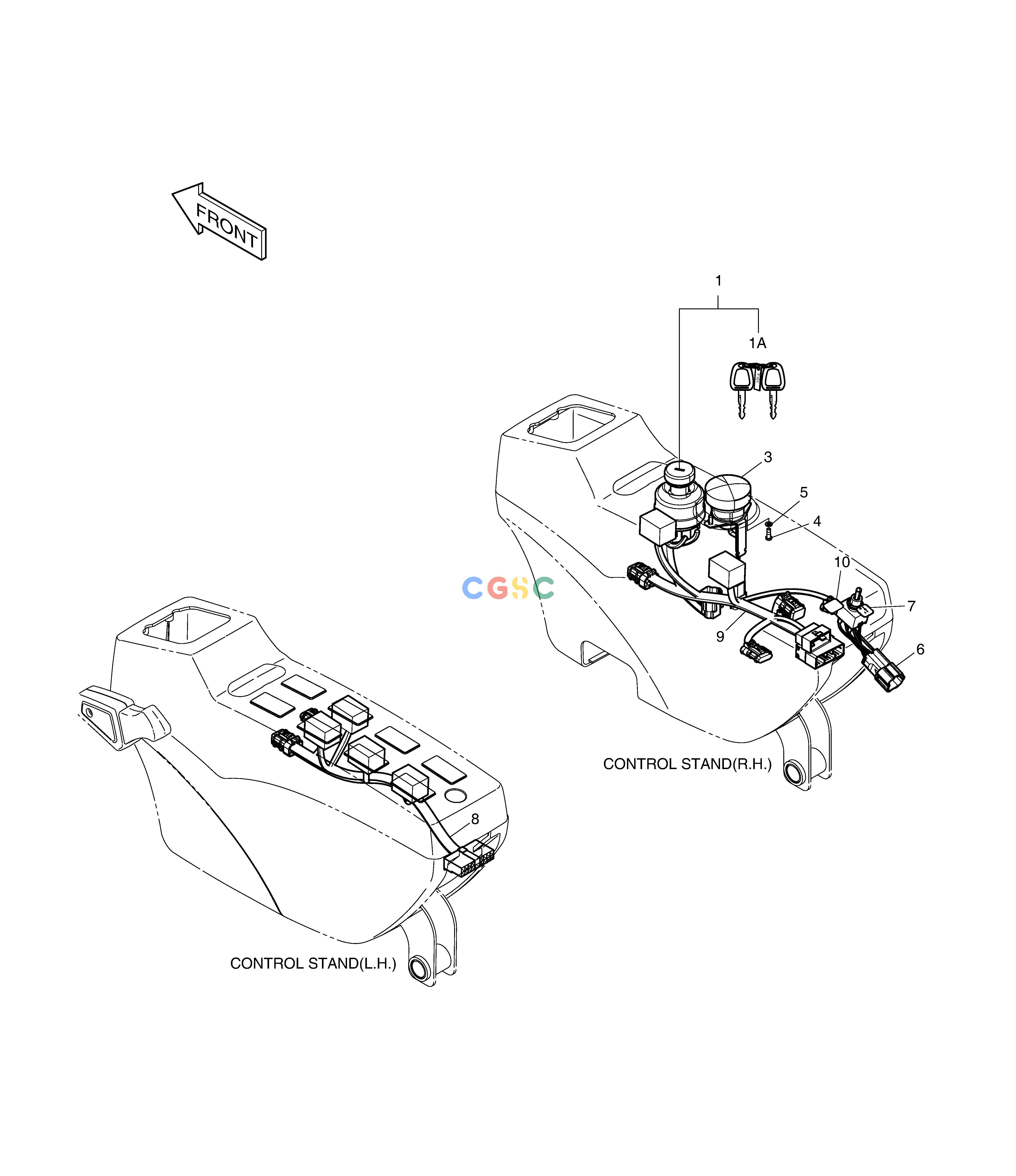

斗山零件查询ELECTRIC PARTS - CONTROL STAND DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-00793A
|
[-] |
|
|
| -. |
K1001326G
|
[-] |
ELECTRIC PARTS-STAND
|
|
| -. |
300619-00793
|
[-] |
|
|
| 1. |
K1001858A
|
[1] |
SWITCH;STARTER
|
|
| 10. |
K1004426
|
[1] |
PLATE,NAME
|
|
| 1A. |
K1009605B
|
[2] |
KEY;STARTER SWITCH
|
|
| 3. |
K1013846
|
[1] |
DIAL;ENGINE CONTROL
|
300661-00004
|
| 3. |
300661-00004
|
[1] |
DIAL,ENGINE CONTROL
|
|
| 4. |
S3450583
|
[2] |
SCREW
|
|
| 5. |
S5100103
|
[2] |
WASHER
|
|
| 6. |
549-00090A
|
[1] |
SWITCH,TOGGLE
|
|
| 7. |
K1004427
|
[1] |
PLATE,NAME
|
|
| 8. |
K1002534A
|
[1] |
HARNESS;STAND(L.H)
|
|
| 8. |
530-00415E
|
[1] |
HARNESS;STAND(L.H)
|
|
| 9. |
310207-01182
|
[1] |
|
|
| 9. |
K1001373C
|
[1] |
HARNESS;STAND(R.H)
|
|
