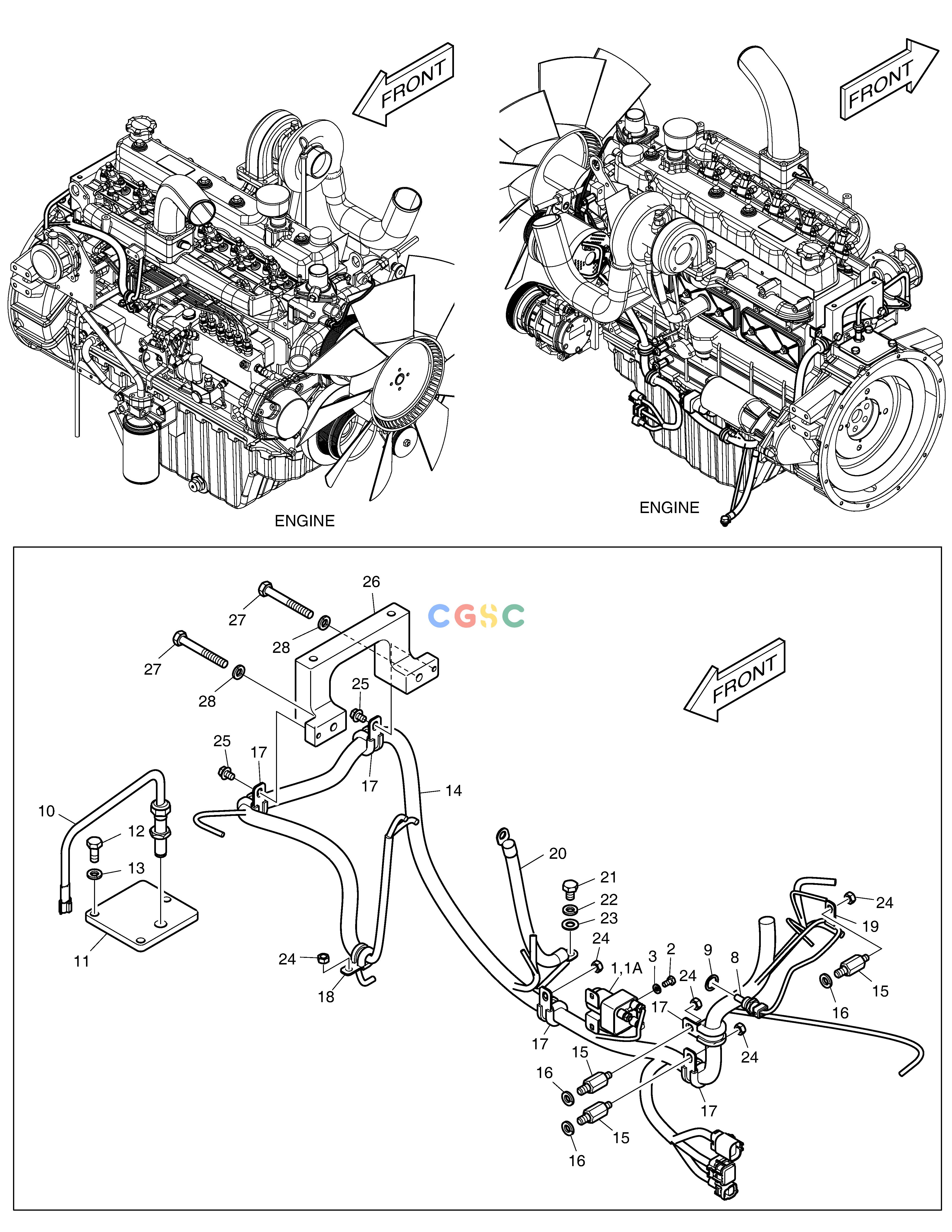

斗山零件查询ELECTRIC PARTS - ENGINE DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
386 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1001328C
|
[-] |
ELECTRIC PARTS;ENGINE
|
|
| 1. |
544-00007
|
[1] |
RELAY;PREHEAT
|
|
| 10. |
2547-1015
|
[1] |
SENSOR;ENG SPEED
|
|
| 11. |
2197-1793
|
[1] |
BRACKET
|
|
| 12. |
S0512066
|
[3] |
. BOLT
|
|
| 13. |
S5102603
|
[3] |
. WASHER
|
|
| 14. |
K1001398B
|
[1] |
HARNESS;ENGINE
|
|
| 15. |
2120-2235
|
[3] |
BOLT;STUD
|
|
| 16. |
S5102603
|
[3] |
. WASHER
|
|
| 17. |
124-00208D3
|
[5] |
CLIP
|
|
| 18. |
124-00208D2
|
[1] |
CLAMP
|
|
| 19. |
2124-1509D10
|
[1] |
CLIP
|
|
| 1A. |
527-00005
|
[1] |
FUSE;PREHEAT RELAY
|
|
| 2. |
S0504453
|
[2] |
BOLT
|
|
| 20. |
553-00001D4
|
[1] |
CABLE;E/G EARTH
|
|
| 21. |
S0511653
|
[1] |
BOLT
|
|
| 22. |
S5102603
|
[1] |
. WASHER
|
|
| 23. |
S5010613
|
[1] |
WASHER
|
|
| 24. |
2121-1305
|
[5] |
NUT
|
|
| 25. |
K1001029
|
[2] |
BOLT
|
|
| 26. |
K1010584
|
[1] |
BLOCK
|
|
| 27. |
S0759166
|
[2] |
BOLT
|
|
| 28. |
S5102603
|
[2] |
. WASHER
|
|
| 3. |
S5102303
|
[2] |
. WASHER
|
|
| 8. |
2547-9038B
|
[1] |
SENSOR,WATER TEMP
|
|
| 9. |
S8180251
|
[1] |
PACKING
|
|
