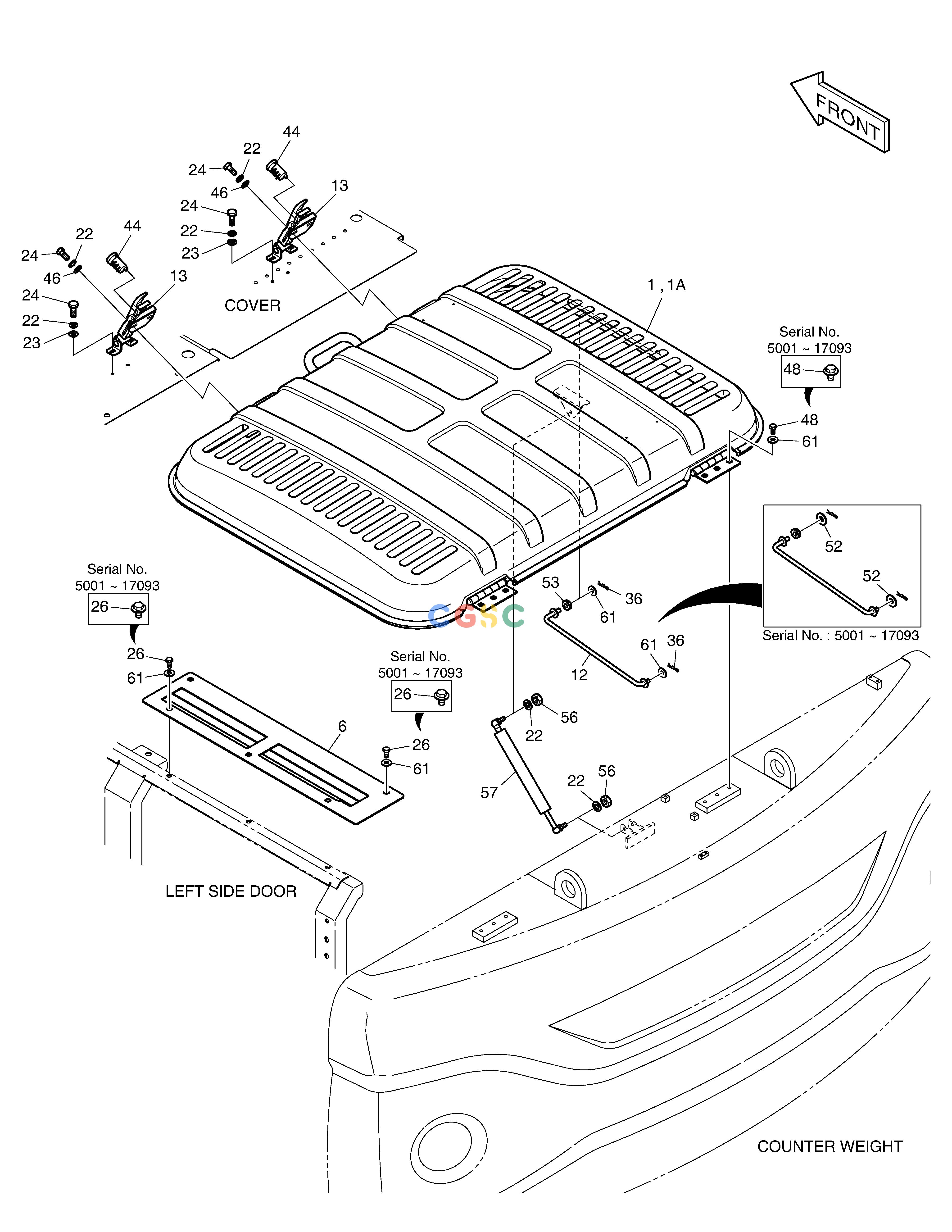

斗山零件查询ENGINE COVER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
184 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1046071C
|
[-] |
COVER ASS'Y
|
|
| 1. |
K1038688C
|
[1] |
ENGINE COVER ASS'Y
|
110506-00047
|
| 1. |
110506-00047
|
[1] |
|
|
| 1. |
110506-00256
|
[1] |
|
|
| 12. |
K1039430C
|
[1] |
STAY
|
|
| 12. |
101582-00823
|
[1] |
|
|
| 13. |
125-00075A
|
[2] |
CATCH
|
|
| 1A. |
1.162-00001
|
[1] |
RUBBER;CUSHION
|
|
| 22. |
S5102503
|
[10] |
. WASHER
|
|
| 23. |
2114-1058D56
|
[4] |
WASHER
|
|
| 24. |
S0508866
|
[8] |
BOLT
|
|
| 26. |
DS0025015
|
[5] |
BOLT
|
|
| 26. |
S0515066
|
[5] |
BOLT
|
|
| 36. |
2705-9002
|
[2] |
PIN
|
|
| 44. |
K1004630
|
[2] |
CYLINDER;KEY
|
|
| 46. |
S5010513
|
[4] |
WASHER
|
|
| 48. |
DS0025019
|
[6] |
BOLT
|
|
| 48. |
S0515066
|
[6] |
BOLT
|
|
| 52. |
2114-1058D54
|
[2] |
WASHER
|
|
| 53. |
K1013812
|
[1] |
BUSHING
|
|
| 56. |
S4012533
|
[2] |
NUT
|
|
| 57. |
DS1001088
|
[1] |
SPRING;GAS
|
|
| 6. |
K1038870B
|
[1] |
COVER
|
|
| 61. |
120804-00079
|
[13] |
WASHER
|
|
