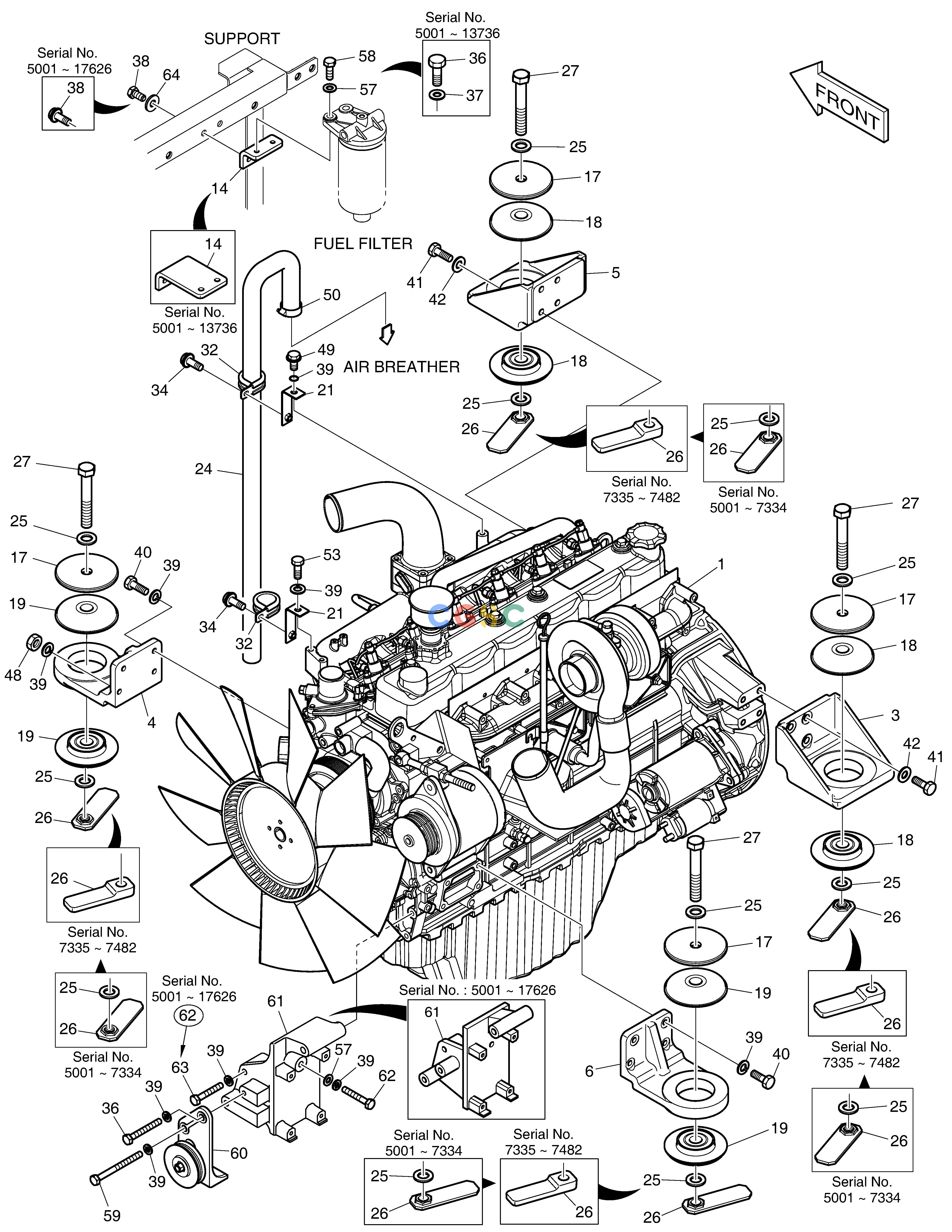

斗山零件查询ENGINE MOUNTING DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
556 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045986A
|
[-] |
ENGINE ASS'Y
|
|
| -. |
150109-00018
|
[-] |
|
|
| 1. |
K1000967A
|
[1] |
ENGINE-DB58TI
|
|
| 14. |
195-02465
|
[1] |
BRACKET
|
|
| 14. |
110406-00740A
|
[1] |
|
|
| 17. |
2114-1929
|
[4] |
WASHER
|
|
| 18. |
161-00548
|
[4] |
RUBBER
|
|
| 19. |
161-00550
|
[4] |
RUBBER;ENGINE MOUNTING
|
|
| 21. |
K1004487
|
[2] |
BRACKET
|
|
| 24. |
K1007551
|
[1] |
HOSE;AIR
|
|
| 25. |
2114-9012A
|
[8] |
WASHER
|
|
| 25. |
2114-9012A
|
[4] |
WASHER
|
|
| 25. |
2114-9012A
|
[8] |
WASHER
|
|
| 26. |
195-02643C
|
[4] |
SUPPORT;NUT
|
|
| 26. |
110958-00342
|
[4] |
|
110958-01083
|
| 26. |
110958-01083
|
[4] |
|
|
| 27. |
S0771466
|
[4] |
BOLT
|
|
| 3. |
K1000039A
|
[1] |
BRACKET;ENGINE MOUNT
|
110427-00210
|
| 3. |
110427-00210
|
[1] |
|
|
| 32. |
124-00208D6
|
[2] |
CLIP
|
|
| 34. |
K1001029
|
[2] |
BOLT
|
|
| 36. |
S0515366
|
[2] |
BOLT
|
|
| 36. |
S0559153
|
[1] |
BOLT
|
|
| 37. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 38. |
DS0025015
|
[2] |
BOLT
|
|
| 38. |
S0515066
|
[2] |
BOLT
|
|
| 39. |
S5102603
|
[10] |
. WASHER
|
|
| 39. |
S5102603
|
[14] |
. WASHER
|
|
| 4. |
K1000041A
|
[1] |
BRACKET;ENGINE MOUNT
|
110427-00212
|
| 4. |
110427-00212
|
[1] |
|
|
| 40. |
S0712366
|
[7] |
BOLT
|
|
| 41. |
S0786366
|
[8] |
BOLT
|
|
| 42. |
S5102703
|
[8] |
WASHER
|
|
| 48. |
S4032633
|
[1] |
NUT
|
|
| 49. |
S0711866
|
[1] |
BOLT
|
|
| 5. |
K1000040A
|
[1] |
BRACKET;ENGINE MOUNT
|
110427-00211
|
| 5. |
110427-00211
|
[1] |
|
|
| 50. |
S8510044
|
[1] |
CLAMP;HOSE
|
|
| 53. |
S0511866
|
[1] |
BOLT
|
|
| 57. |
120804-00076
|
[3] |
WASHER
|
|
| 57. |
S5010613
|
[2] |
WASHER
|
|
| 57. |
S5010613
|
[3] |
WASHER
|
|
| 58. |
S0512266
|
[2] |
BOLT
|
|
| 59. |
S0759853
|
[1] |
BOLT
|
|
| 6. |
K1000042A
|
[1] |
BRACKET;ENGINE MOUNT
|
110427-00213
|
| 6. |
110427-00213
|
[1] |
|
|
| 60. |
130710-00078
|
[1] |
PULLEY ASSY,IDLE
|
|
| 61. |
110402-00075A
|
[1] |
BRACKET,COMPRESSOR
|
|
| 61. |
110402-00123
|
[1] |
|
|
| 62. |
S0758866
|
[2] |
|
|
| 62. |
S0758866
|
[1] |
|
|
| 63. |
S0759066
|
[1] |
|
|
| 64. |
120804-00079
|
[2] |
WASHER
|
|
