神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (03-001) - STARTER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
434 次

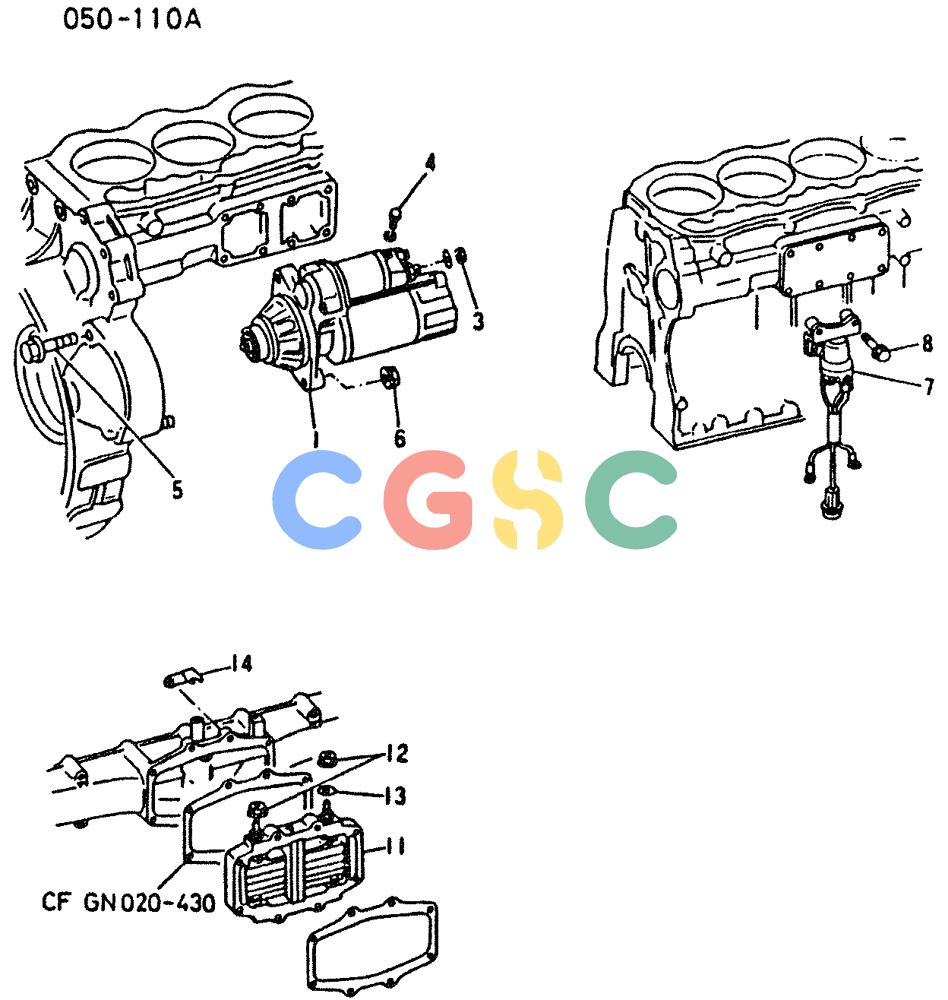

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME037656 | [1] | STARTER ASSY.MEC 24V-V.5KW(CF GN050 111A) | |
| 5. | VAMF430005 | [1] | NUT | KOBNUT 8 Superseded by part number: VAF230008000 |
| . . | VAMF450405 | [1] | WASHER | KOBWASHER,SPG 8 Superseded by part number: 132502A1 |
| 4. | VAMF100002 | [1] | BOLT 5X10 | |
| . . | VAMF450403 | [1] | WASHER WASHER,SPG 5 | WASHER WASHER,SPG 5 |
| 5. | VAMH000841 | [1] | SCREW | KOBBOLT,FLANGE 12X75 |
| 6. | VAMF434106 | [1] | NUT | KOBNUT.FLANGE 12 Superseded by part number: 135085A1 |
| 7. | VAME037485 | [1] | STARTER MOTOR | KOBRELAY,STARTER MEC Superseded by part number: VAU001T06781 |
| 8. | VAMF140227 | [2] | FLANGE BOLT | KOBBOLT,FLANGE 8X25 |
| 11. | VAME037260 | [1] | HEATER | KOBAIR HEATER ASSY 22V-1.83KU |
| 12. | VAMF434103 | [2] | NUT | KOBNUT,FLANGE 6 |
| 13. | VAMF450153 | [1] | WASHER | KOBMASHER,PLAIN 6 |
| 14. | VAME037508 | [1] | PLATE PLATE,EARTH | PLATE PLATE,EARTH |
