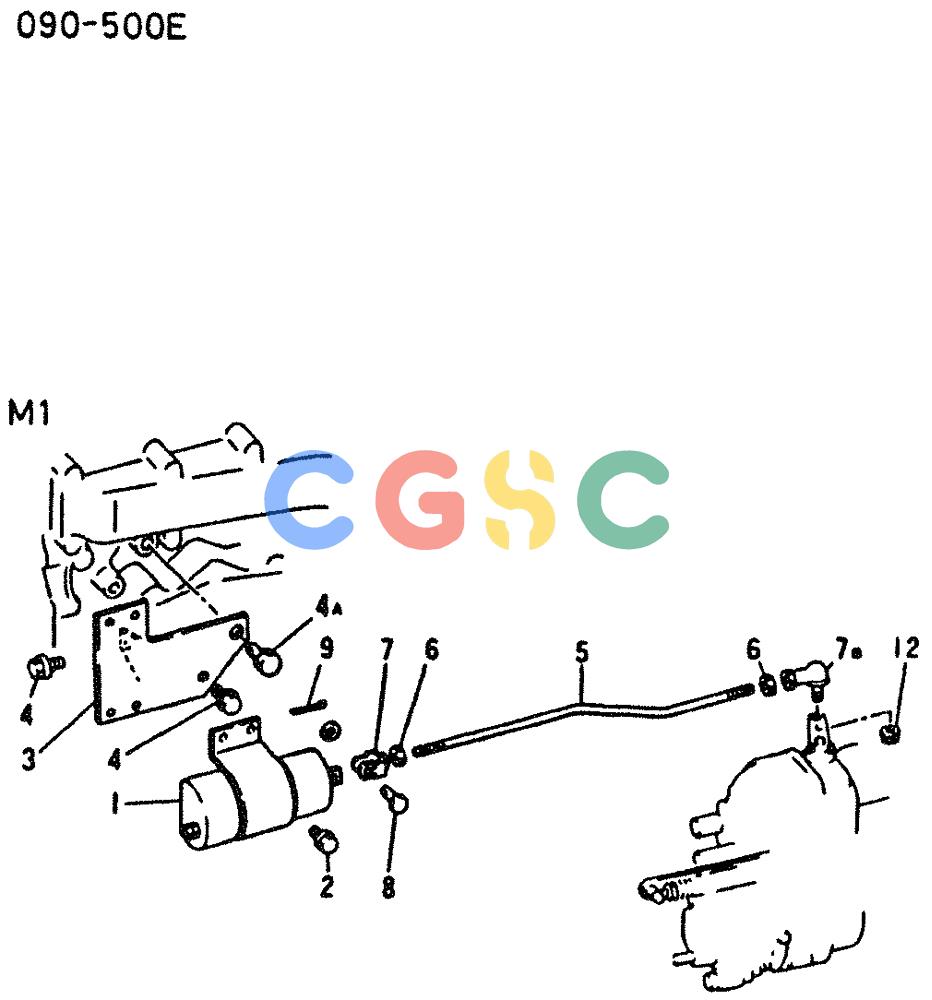

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (04-002) - EMERGENCY PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
417 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3089804700 | [1] | SOLENOID | KOBSOLENOID,STOP 24V ND Superseded by part number: VAME049273 |
| 2. | VAMF240029 | [4] | SCREW | KOBB0LT,W/WSR 6X25 |
| 3. | VAME047063 | [1] | BRACKET,SOLENOID | |
| 4. | VAMH000713 | [2] | BOLT | KOBBOLT,FLANGE 10X20 |
| 4A. | VAMF302574 | [1] | BOLT,W/WSR 14X30 | |
| 5. | VAME047064 | [1] | ROD | |
| 6. | VAMF430004 | [2] | NUT | KOBNUT 6 Superseded by part number: 132434A1 |
| 7. | VAMC429036 | [1] | CLEVIS | KOBCLEVIS |
| 7B. | VAMC010080 | [1] | BALL JOINT | KOBJOINT,BALL Superseded by part number: 240384A1 |
| 8. | VAMF472954 | [1] | PIN | KOBPIN,CLEVIS 6X17 |
| 9. | VAMF472025 | [1] | PIN | KOBPIN,SPLIT 1.6X18 |
| . . | VAMF450004 | [1] | WASHER | KOBWASHER,PLAIN 6 |
| 12. | VAMF434103 | [1] | NUT | KOBNUT,FLANGE 6 |
