神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (04-001) - INSTRUMENT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
464 次

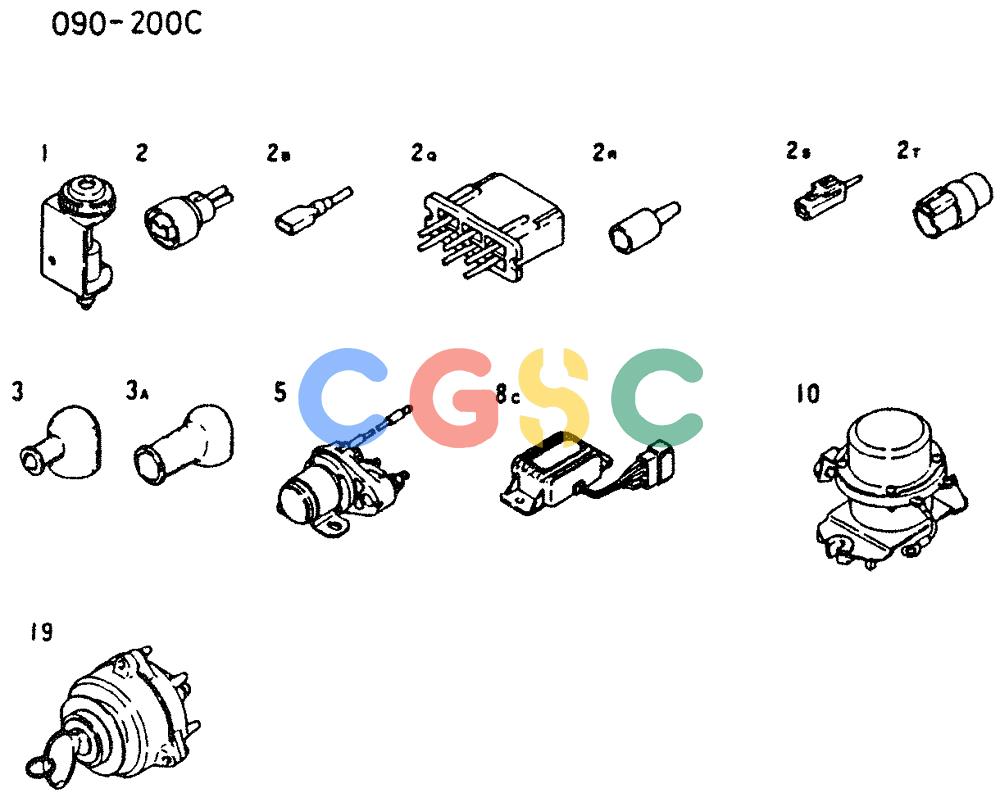

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME059701 | [1] | INDICATOR | KOBINDICATOR,HEATER 24V,FOR M7 ONLY |
| 2. | VAMH052231 | [2] | HYD CONNECTOR | KOBCONNECTOR,2P FEF1ALE,FOR M9 ONLY (FOR STARTER/R) |
| 2P. | VAMH052064 | [1] | TERMINAL | KOBCONNECTOR,FOR M9 ONLY (FOR OIL BY-PASS ALARM) |
| 2Q. | VAMH052042 | [1] | HYD CONNECTOR | KOBCONNECTOR, FEMALE,FOR M9 ONLY (FOR SAFETY RELAY) |
| 2R. | VAMH052377 | [2] | HYD CONNECTOR | KOBCONNECTOR, IP FEMALE,FOR M9 ONLY (FOR ALTERNATOR) |
| 2S. | VAMH052356 | [1] | HYD CONNECTOR | KOBCONNECTOR,FOR M9 ONLY (FOR OIL/L SENSOR) |
| 2T. | VAMB286874 | [1] | HYD CONNECTOR | KOBCONNECTOR ASSY.2P FEMALE,FOR M9 ONLY EXC YJ01<511> |
| 3. | VA3096803122 | [1] | GROMMET | KOBGROMMET,FOR M9 ONLY (FOR AIR HEATER) |
| 3A. | VAMH022419 | [1] | GROMMET | KOBGROMMET,FOR M9 ONLY EXC YJ01<511> |
| 5. | VAME067624 | [1] | RELAY,24V, 2.3 Amp | KOBRELAY,HEATER,MEC,FOR M7 ONLY Superseded by part number: 346943A1 |
| . . | VAME067638 | [1] | FUSE | KOBFUSE 91A,FOR M7 ONLY Superseded by part number: 135155A1 |
| 8c. | VAME049204 | [1] | RELAY | KOBRELAT,SAFETY,MEC Superseded by part number: ME049233 |
| 10. | VA3089003201 | [1] | RELAY | KOBRELAY,BATTERY,FOR M7 ONLY |
| 19. | VAMC840400 | [1] | THERMOSTAT | KOBSWITCH,STARTER,FOR M7 ONLY |
