神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (07-002) - CYLINDER BLOCK REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
656 次

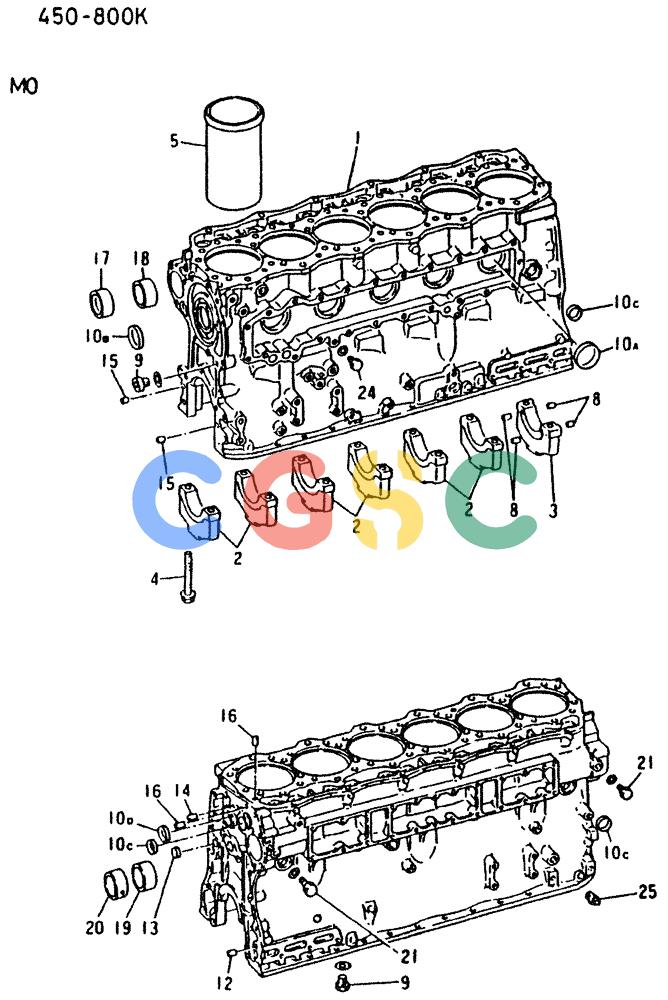

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VAME999936 | [1] | CRANKCASE ASSY 6D16,16T,M12 MOUNTING | |
| 1. | VAME070792 | [1] | CRANKCASE Ml 2 | |
| 2. | VAME031914 | [6] | CAP CAP,BRG FR & MI | CAP CAP,BRG FR & MI |
| 3. | VAME031915 | [1] | CAP,BRG RE | |
| 4. | VAME031865 | [14] | SCREW | KOBBOLT 14X108 |
| 5. | VAME041105 | [6] | LINER, ENGINE CYLIND | KOBLINER,CYL B SIZE 1(OEM PART NO.ME041121) |
| . . | VAME041106 | [6] | LINER, ENGINE CYLIND | KOBLINER,CYL B SIZE 2 |
| . . | VAME041107 | [6] | LINER, ENGINE CYLIND | KOBLINER,CYL B SIZE 3 |
| 8. | VAMH012041 | [6] | PIN | KOBPIN,SPG 4X10 |
| 9. | VAMH037137 | [2] | PLUG | KOBPLUG 20 |
| . . | VAMF660068 | [2] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 10A. | VAME041108 | [9] | CAP | KOBCAP,SEALING 50 |
| 10B. | VAMH037754 | [1] | CAP | KOBCAP.SEALING 50 |
| 10C. | VAMS666139 | [9] | CAP | KOBCAP.SEALING 30 |
| 10D. | VAMS666142 | [1] | CAP | KOBCAP.SEALING 45 |
| 12. | VAMH007011 | [1] | PIN | KOBPIH,PPWEl 12X34 Superseded by part number: 132324A1 |
| 13. | VAMF665535 | [1] | CAP | KOBCAP.SEALING 18 |
| 14. | VAMH007010 | [1] | PIN | KOBPIH,DOWEL 12X17 |
| 15. | VAMF472404 | [1] | DOWEL | KOBPIH,DOWEL 8X18 Superseded by part number: MF472404 |
| 16. | VAMH037082 | [1] | PLUG PLUG 6.5X8 | PLUG PLUG 6.5X8 |
| 17. | VAME071141 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO.1 |
| 18. | VAME071142 | [1] | BUSHING | KOBBUSHINO,CAMSHAFT NO.2 |
| 19. | VAME071143 | [1] | BUSHING | KOBBUSHING.CAMSHAFT NO.3 |
| 20. | VAME071144 | [1] | BUSHING | KOBBUSHING.CAMSHAFT NO.4 Superseded by part number: VAME071862 |
| 21. | VAME031087 | [1] | SET OF SCREWS | KOBSCREW,SET |
| . . | VAHF660063 | [1] | GASKET 10 | |
| 21A. | VAME031087 | [1] | SET OF SCREWS | KOBSCREW,SET(W/O VACUUM PUMP) |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 24. | VAME031088 | [1] | PLUG | KOBPLUG |
| 25. | VAMS666222 | [1] | PLUG | SMPLUG, TAPER PT3J/8,(W/O VACUUM PUMP) |
