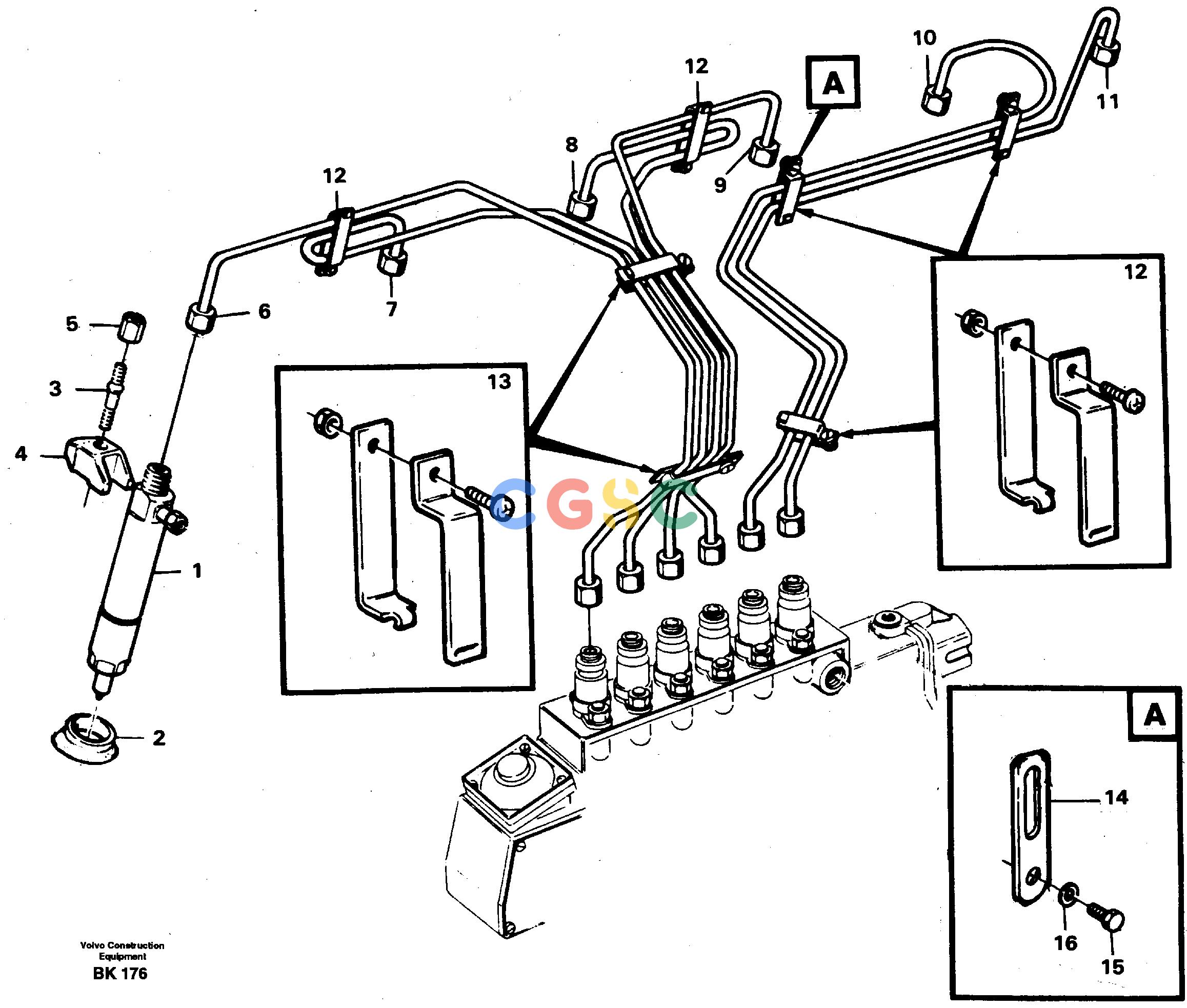

沃尔沃零件查询A35C VOLVO BM Delivery pipes-injectorsVOLVO BM A35C SER NO - 4620, NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
664 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[6] |
Injector
|
|
| 2. |
VOE469455
|
[6] |
Sealing ring
|
|
| 3. |
VOE470560
|
[6] |
Stud
|
|
| 4. |
VOE469797
|
[6] |
Nozzle retainer
|
|
| 5. |
VOE13971095
|
[6] |
Flange nut
|
|
| 6. |
VOE479801
|
[1] |
Delivery pipe
|
ENG - 234764
|
| |
VOE8193571
|
[1] |
Delivery pipe
|
ENG 234765 -
|
| 7. |
VOE479802
|
[1] |
Delivery pipe
|
ENG - 234764
|
| |
VOE8193572
|
[1] |
Delivery pipe
|
ENG 234765 -
|
| 8. |
VOE479803
|
[1] |
Delivery pipe
|
ENG - 234764
|
| |
VOE8193573
|
[1] |
Delivery pipe
|
ENG 234765 -
|
| 9. |
VOE479804
|
[1] |
Delivery pipe
|
ENG - 234764
|
| |
VOE8193574
|
[1] |
Delivery pipe
|
ENG 234765 -
|
| 10. |
VOE479805
|
[1] |
Delivery pipe
|
ENG - 234764
|
| |
VOE8193575
|
[1] |
Delivery pipe
|
ENG 234765 -
|
| 11. |
VOE479806
|
[1] |
Delivery pipe
|
ENG - 234764
|
| |
VOE8193576
|
[1] |
Delivery pipe
|
ENG 234765 -
|
| 12. |
VOE8194351
|
[5] |
Clamp
|
ENG - 234764
|
| |
VOE8194351
|
[3] |
Clamp
|
ENG 234765 -
|
| |
VOE8194327
|
[2] |
Clamp
|
ENG 234765 -
|
| 13. |
VOE8194353
|
[2] |
Clamp
|
ENG - 234764
|
| |
VOE8194353
|
[2] |
Clamp
|
ENG 234765 -
|
| 14. |
VOE422323
|
[1] |
Bracket
|
|
| 15. |
VOE940100
|
[1] |
Hexagon screw
|
|
| 16. |
VOE13941906
|
[1] |
Washer
|
|
