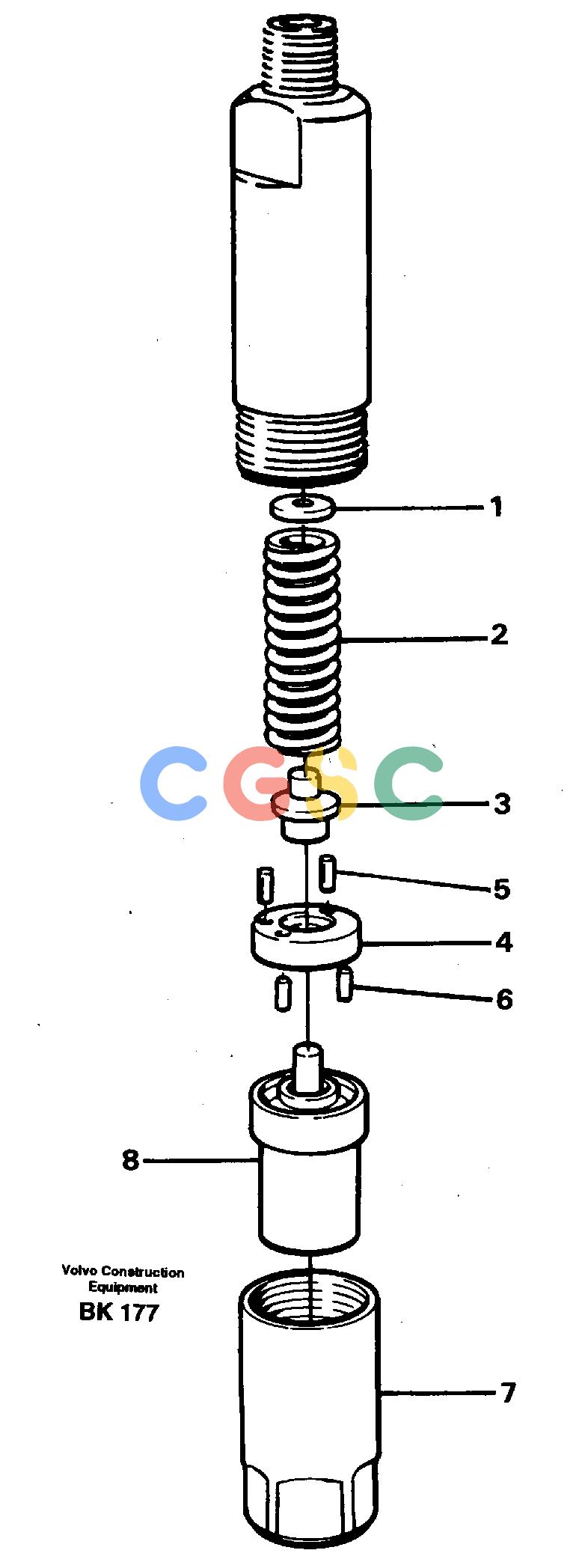

沃尔沃零件查询A35C VOLVO BM InjectorVOLVO BM A35C SER NO - 4620, NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE478606
|
[1] |
Injector
|
|
| |
VOE478607
|
[1] |
Nozzle retainer
|
|
| 1. |
VOE11700654
|
[REQ] |
Shim
|
THICK=1.00MM
|
| |
VOE11701280
|
[REQ] |
Shim
|
THICK=1.04MM
|
| |
VOE3094407
|
[REQ] |
Shim
|
THICK=1.08MM
|
| |
VOE11701085
|
[REQ] |
Shim
|
THICK=1.12MM
|
| |
VOE3094408
|
[REQ] |
Shim
|
THICK=1.16MM
|
| |
VOE846963
|
[REQ] |
Adjusting washer
|
THICK=1.18MM
|
| |
VOE11701282
|
[REQ] |
Shim
|
THICK=1.20MM
|
| |
VOE11700776
|
[REQ] |
Shim
|
THICK=1.24MM
|
| |
VOE11701049
|
[REQ] |
Shim
|
THICK=1.28MM
|
| |
VOE11701106
|
[REQ] |
Shim
|
THICK=1.32MM
|
| |
VOE846966
|
[REQ] |
Adjusting washer
|
THICK=1.38MM
|
| |
VOE244800
|
[REQ] |
Shim
|
THICK=1.40MM
|
| |
VOE11700690
|
[REQ] |
Shim
|
THICK=1.45MM
|
| |
VOE11701281
|
[REQ] |
Shim
|
THICK=1.48MM
|
| |
VOE11701783
|
[REQ] |
Shim
|
THICK=1.52MM
|
| |
VOE11700728
|
[REQ] |
Shim
|
THICK=1.54MM
|
| |
VOE11700653
|
[REQ] |
Shim
|
THICK=1.56MM
|
| |
VOE11700835
|
[REQ] |
Shim
|
THICK=1.60MM
|
| |
VOE11701162
|
[REQ] |
Shim
|
THICK=1.64MM
|
| |
VOE11700126
|
[REQ] |
Shim
|
THICK=1.68MM
|
| |
VOE3094477
|
[REQ] |
Shim
|
THICK=1.72MM
|
| |
VOE6213408
|
[REQ] |
Shim
|
THICK=1.76MM
|
| |
VOE11701050
|
[REQ] |
Shim
|
THICK=1.80MM
|
| |
VOE244808
|
[REQ] |
Shim
|
THICK=1.84MM
|
| |
VOE6213409
|
[REQ] |
Shim
|
THICK=1.88MM
|
| |
VOE244795
|
[REQ] |
Shim
|
THICK=1.92MM
|
| |
VOE3094467
|
[REQ] |
Shim
|
THICK=1.96MM
|
| 2. |
VOE244820
|
[1] |
Compression spring
|
|
| 3. |
VOE3094597
|
[1] |
Push rod
|
|
| 4. |
VOE1698513
|
[1] |
Washer
|
|
| 5. |
VOE844339
|
[2] |
Pin
|
|
| 6. |
VOE244447
|
[2] |
Pin
|
|
| 7. |
VOE3092030
|
[1] |
Nut
|
|
| 8. |
VOE478609
|
[1] |
Nozzle
|
|
