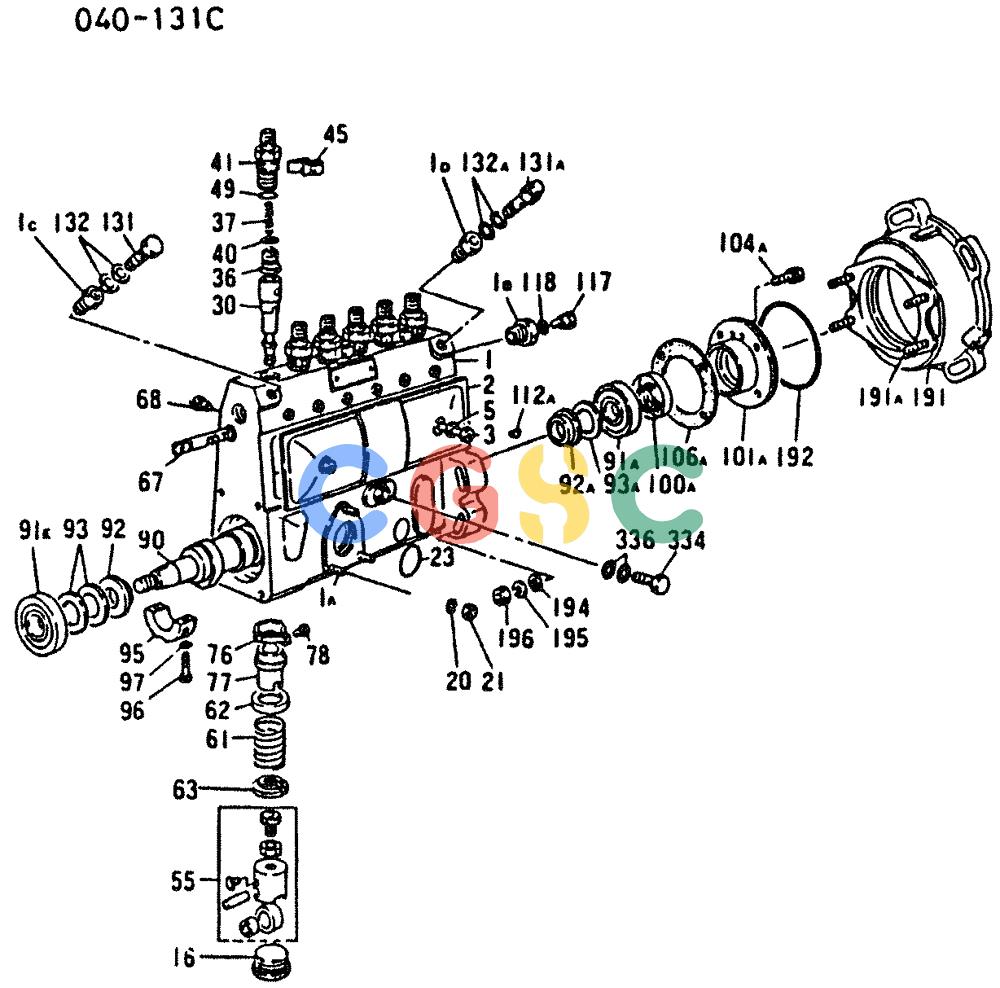

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (02-003) - INJECTION PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D152CT-YJ01 | [1] | INJECTION PUMP,INNER PARTS(M7) | |
| . . | 15CTYJ01-511 | [1] | INJECTION PUMP,INNER PARTS(M7) | |
| 1-336. | VAME723427 | [1] | INJECTION PUMP ASSY A TYPE(DKC 1010609620) | |
| 1. | VAME704099 | [1] | MOUSING,PUMP | |
| 1A. | VAME705150 | [3] | STUD | |
| 1B. | VAME704264 | [1] | ADAPTER | KOBADAPTER |
| 1C. | VAME704100 | [1] | ADAPTER | |
| 1D. | VAME704101 | [1] | HYD CONNECTOR | KOBADAPTER Superseded by part number: VA1314231300 |
| 2. | VAME701318 | [1] | COVER | |
| 3. | VAME704005 | [2] | SCREW | KOBSCREW |
| 5. | VAME705151 | [2] | GASKET | KOBGASKET |
| 16. | VAME704223 | [6] | PLUG | KOBPLUG |
| 20. | VAME717712 | [3] | SPRING WASHER | KOBWASHER.SPG |
| 21. | VAME717709 | [3] | NUT | |
| 23. | VAME705152 | [1] | O-RING | KOBO-RING |
| 30. | VAME701301 | [6] | PLUNGER ASSY | |
| 36. | VAME704302 | [6] | VALVE | KOBVALVE,DELIVERY |
| 37. | VAME704105 | [6] | SPRING | KOBSPRING,DELIVERY/V |
| 40. | VAME704237 | [6] | GASKET | KOBGASKET |
| 41. | VAME704107 | [6] | HOLDER, INJECTOR NOZ | KOBHOLDER,DELIVERY/V |
| 45. | VAME704407 | [6] | PLATE | KOBPLATE |
| 49. | VAME705358 | [6] | O-RING | KOBO-RING |
| 55. | VA312000060 | [6] | TAPPET ASSY | |
| 61. | VAME704109 | [6] | SPRING | KOBSPRING,PLUNGER |
| 62. | VAME704110 | [6] | SEAT | KOBSEAT.SPG.UPPER |
| 63. | VAME704111 | [6] | SEAT,SPG LOWER | |
| 67. | VAME704021 | [1] | RACK | KOBRACK,CONTROL |
| 68. | VAME704022 | [1] | SCREW | KOBSCREW,RACK STOP Superseded by part number: VA1312260300 |
| 76. | VAME704023 | [6] | PINION | KOBPINION |
| 77. | VAME704112 | [6] | SLEEVE | KOBSLEEVE,CONTROL |
| 78. | VAME704025 | [6] | SCREW | KOBSCREW,PINION CLAMP |
| 90. | VAME704113 | [1] | CAMSHAFT | |
| 91A. | VAME705184 | [1] | BEARING | KOBBEARING |
| 91A. | VAME705185 | [1] | BEARING | KOBBEARING |
| 91E. | VAME705186 | [1] | BEARING | KOBBEARING |
| 91E. | VAME705187 | [1] | BEARING | KOBBEARING |
| 92. | VAME704305 | [1] | SPACER RING | SPACER RING |
| 92A. | VAME704028 | [1] | RING | KOBRING |
| 93. | VAME705189 | [1] | SHIM | KOBSHIM,T=0.I0 |
| 93. | VAME705190 | [1] | SHIM | KOBSHIM,T=0.12 |
| 93. | VAME705191 | [1] | SHIM | KOBSHIM,T=0.14 |
| 93. | VAME705192 | [1] | SHIM | KOBSHIM,T=0.14 |
| 93. | VAME705193 | [1] | SHIM | KOBSHIM,T=0.18 |
| 93. | VAME705194 | [1] | SHIM | KOBSHIM,T=0.50 |
| 93. | VAME705195 | [1] | SHIM | KOBSHIM,T=1.00 |
| 93. | VAME705196 | [1] | SHIM | KOBSHIM,T=0.30 |
| 93. | VAME705197 | [1] | SHIM | KOBSHIM,T=0.70 |
| 93. | VAME705198 | [1] | SHIM | KOBSHIM,T=1.40 |
| 93A. | VAME705200 | [1] | SHIM | KOBSHIM T=0.10 |
| 93A. | VAME705201 | [1] | SHIM | KOBSHIM,T-0.12 |
| 93A. | VAME705202 | [1] | SHIM | KOBSHIM,T=0.14 |
| 93A. | VAME705203 | [1] | SHIM | KOBSHIM,T=0.16 |
| 93A. | VAME705204 | [1] | SHIM | KOBSHIM,T=0.18 |
| 93A. | VAME705205 | [1] | SHIM | KOBSHIM,T=0.50 |
| 93A. | VAME705206 | [1] | SHIM | KOBSHIM,T=0.30 |
| 93A. | VAME705207 | [1] | SHIM | KOBSHIM,T=1.00 |
| 95. | VAME704114 | [1] | BEARING | KOBBEARING,CTR |
| 96. | VAME705208 | [2] | SCREW | KOBSCREW |
| 97. | VAME705209 | [2] | GASKET | KOBGASKET |
| 100A. | VAME705210 | [1] | OIL SEAL | KOBOILSEAL Superseded by part number: VA0296220190 |
| 101A. | VAME754115 | [2] | COVER,BRG | |
| 104A. | VAME705211 | [4] | BOLT | KOBBOLT |
| 106A. | VAME704116 | [1] | GASKET | KOB |
| 112A. | VAME705214 | [1] | KET,MOODRUFF | |
| 117. | VAME704211 | [1] | BOLT | |
| 118. | VAME717738 | [1] | GASKET | KOBGASKET Superseded by part number: VA0265061040 |
| 111. | VAME717882 | [1] | BOLT | KOBEYE Superseded by part number: VA1398140900 |
| 131A. | VAME704306 | [1] | VALVE | KOBOVER FLOW Superseded by part number: VA1314245520 |
| 132. | VA3126106400 | [2] | GASKET | KOB Superseded by part number: VA0293414130 |
| 132A. | VA3126106400 | [2] | GASKET | KOB Superseded by part number: VA0293414130 |
| 191. | VAME704265 | [1] | BRACKET | KOBBRACKET |
| 171. | VAME717801 | [4] | STUD | KOBSTUD |
| 192. | VAME705219 | [1] | O-RING | KOBO-RING Superseded by part number: VA0296375020 |
| 194. | VAME705220 | [4] | WASHER | |
| 195. | VAME705221 | [4] | MASHER.SPG | |
| 196. | VAME705222 | [4] | NUT | KOBNUT Superseded by part number: VA0130210040 |
| 334. | VAME705223 | [1] | BOLT | KOBBOLT,EYE |
| 536. | VA0375124001 | [2] | GASKET | KOBGASKET Superseded by part number: VA0265101340 |
