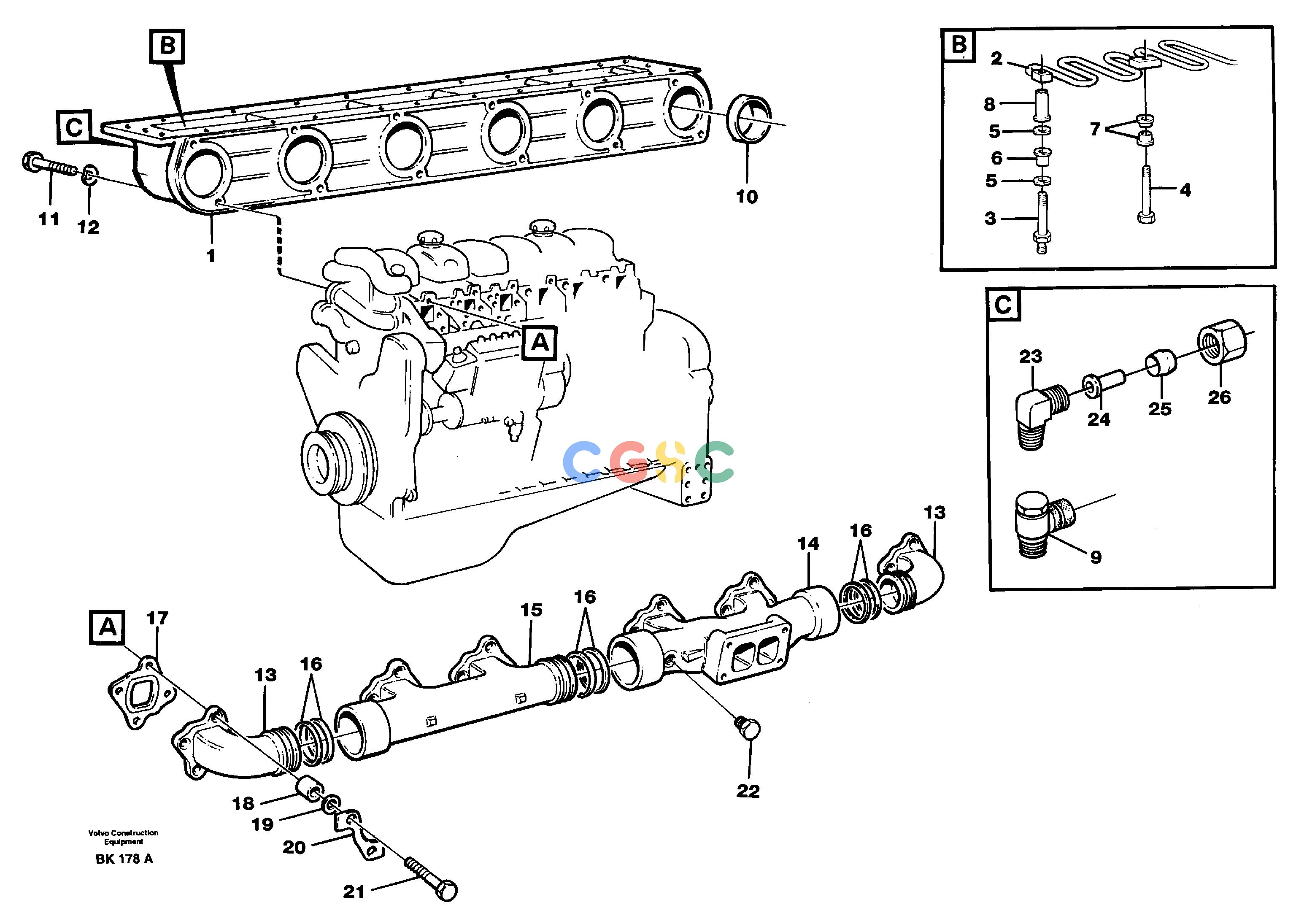

沃尔沃零件查询A35C VOLVO BM Inlet manifold and exhaust manifoldVOLVO BM A35C SER NO - 4620, NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
605 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4778370
|
[1] |
Inlet pipe
|
|
| 2. |
VOE469807
|
[1] |
Heater
|
|
| 3. |
VOE469989
|
[1] |
Terminal screw
|
|
| 4. |
VOE955303
|
[8] |
Hexagon screw
|
|
| 5. |
VOE192288
|
[18] |
Washer
|
|
| 6. |
VOE468511
|
[1] |
Bushing
|
|
| 7. |
VOE846893
|
[16] |
Bushing
|
|
| 8. |
VOE846894
|
[9] |
Sleeve
|
|
| 9. |
VOE6626877
|
[1] |
Fitting
|
SER NO - 4229
|
| |
VOE13947281
|
[1] |
Gasket
|
SER NO - 4229
|
| 10. |
VOE469830
|
[6] |
Rubber ring
|
|
| 11. |
VOE955530
|
[6] |
Hexagon screw
|
L=83MM
|
| |
VOE959793
|
[6] |
Hexagon screw
|
L=114MM
|
| 12. |
VOE13941907
|
[12] |
Washer
|
|
| 13. |
VOE470416
|
[2] |
Tube
|
|
| 14. |
VOE478662
|
[1] |
Exhaust manifold
|
|
| 15. |
VOE470418
|
[1] |
Exhaust pipe
|
|
| 16. |
VOE470323
|
[12] |
Sealing ring
|
|
| 17. |
VOE470534
|
[6] |
Gasket
|
|
| 18. |
VOE422217
|
[23] |
Spacer sleeve
|
|
| 19. |
VOE941744
|
[23] |
Washer
|
|
| 20. |
VOE468646
|
[12] |
Lock washer
|
|
| 21. |
VOE13973522
|
[0021] |
Hexagon screw
|
|
| |
VOE13940162
|
[2] |
Screw
|
|
| 22. |
VOE13947814
|
[1] |
Plug
|
|
| 23. |
VOE954385
|
[1] |
Elbow nipple
|
SER NO 4230 -
|
| 24. |
VOE944717
|
[1] |
Sleeve
|
SER NO 4230 -
|
| 25. |
VOE954364
|
[1] |
Ferrule
|
SER NO 4230 -
|
| 26. |
VOE954356
|
[1] |
Fitting nut
|
SER NO 4230 -
|
