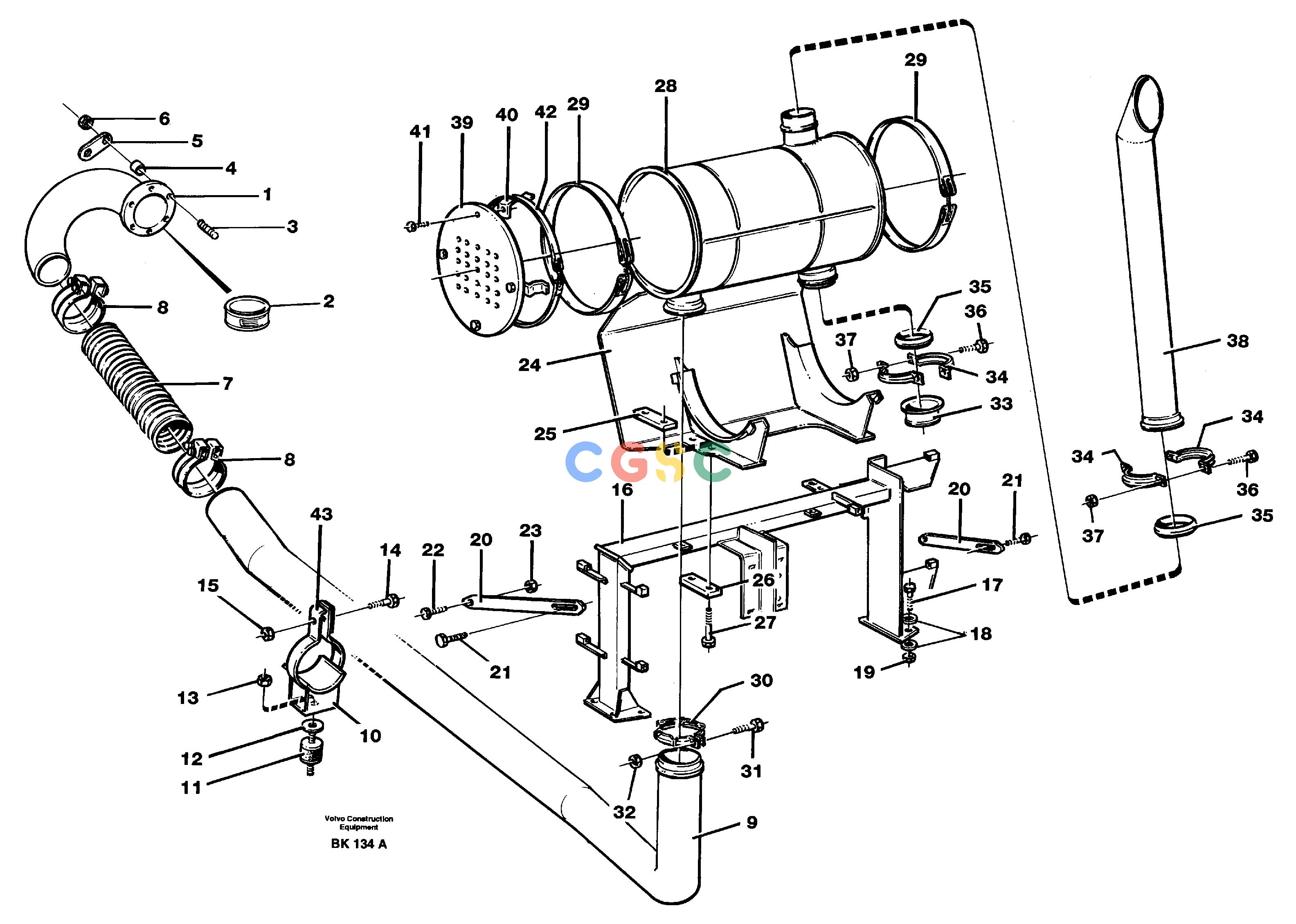

沃尔沃零件查询A35C VOLVO BM Exhaust system, silencerVOLVO BM A35C SER NO - 4620, NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
490 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11052219
|
[1] |
Exhaust pipe
|
|
| 2. |
VOE591247
|
[REQ] |
Sealant
|
|
| 3. |
VOE924085
|
[6] |
Stud
|
|
| 4. |
VOE470467
|
[6] |
Sleeve
|
|
| 5. |
VOE967666
|
[3] |
Tab washer
|
|
| 6. |
VOE13971074
|
[6] |
Hexagon nut
|
|
| 7. |
VOE11051132
|
[1] |
Exhaust pipe
|
|
| 8. |
VOE8156156
|
[2] |
Clamp
|
|
| 9. |
VOE11052063
|
[1] |
Pipe
|
|
| 10. |
VOE11051121
|
[1] |
Anchorage
|
|
| 11. |
VOE11110276
|
[1] |
Rubber cushion
|
|
| 12. |
VOE11053667
|
[1] |
Gasket
|
|
| 13. |
VOE971096
|
[2] |
Flange nut
|
|
| 14. |
VOE13965185
|
[1] |
Screw
|
|
| 15. |
VOE13971098
|
[1] |
Flange nut
|
|
| 16. |
VOE11060924
|
[1] |
Bracket
|
|
| 17. |
VOE60113111
|
[4] |
Flange screw
|
|
| 18. |
VOE60110353
|
[8] |
Washer
|
|
| 19. |
VOE971099
|
[4] |
Flange lock nut
|
|
| 20. |
VOE11051831
|
[2] |
Stay
|
|
| 21. |
VOE13965220
|
[2] |
Screw
|
|
| 22. |
VOE60113094
|
[2] |
Flange screw
|
|
| 23. |
VOE13971098
|
[2] |
Flange nut
|
|
| 24. |
VOE11052492
|
[1] |
Bracket
|
|
| 25. |
VOE11056037
|
[2] |
Thread plate
|
|
| 26. |
VOE11056036
|
[2] |
Bracket
|
|
| 27. |
VOE60113116
|
[4] |
Flange screw
|
|
| 28. |
VOE11033839
|
[1] |
Silencer
|
|
| 29. |
VOE11050442
|
[2] |
Clamp
|
|
| 30. |
VOE15113226
|
[1] |
V-clamp
|
|
| 31. |
VOE13965185
|
[1] |
Screw
|
|
| 32. |
VOE13971098
|
[1] |
Flange nut
|
|
| 33. |
VOE11060999
|
[1] |
Cover
|
|
| 34. |
VOE11056190
|
[4] |
Clamp
|
|
| 35. |
VOE1577704
|
[2] |
Sealing ring
|
|
| 36. |
VOE13965179
|
[4] |
Screw
|
|
| 37. |
VOE13945408
|
[4] |
Nut
|
|
| 38. |
VOE11060096
|
[1] |
Tube
|
|
| 39. |
VOE1605164
|
[1] |
Protecting plate
|
|
| 40. |
VOE11054481
|
[4] |
Anchorage
|
|
| 41. |
VOE13946173
|
[4] |
Screw
|
|
| 42. |
VOE11050442
|
[1] |
Clamp
|
|
| 43. |
VOE942312
|
[1] |
Clamp
|
|
