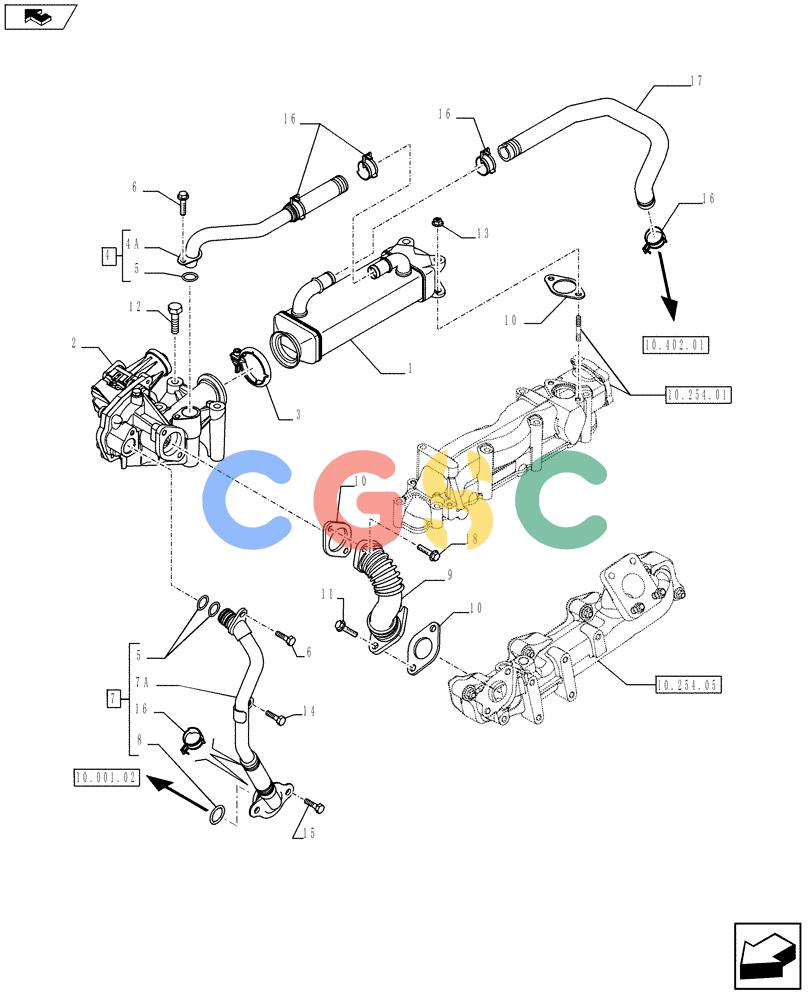

纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.254.06) - EXHAUST MANIFOLD (5801504641) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
155 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801495578 | [1] | HEAT EXCHANGER | TOR |
| 2. | 5801520470 | [1] | CONTROL VALVE | TOR Superseded by part number: 5801608746 |
| 3. | 504385412 | [1] | MOUNTING CLIP | TOR |
| 4. | 5801459454 | [1] | PIPE | TORASSY Contains Ref.4A, 5 |
| 4A. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 5. | 5135738 | [2] | O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro | TTF |
| 6. | 2853118 | [2] | BOLT,Hex, M6 x 1 x 18mm | TOR Superseded by part number: 16597225 |
| 7. | 5801385612 | [1] | TUBE | TORASSY Contains Ref.6, 7A, 14, 15, 16 |
| 8. | 17289181 | [1] | WASHER, SEALING | TORSEAL WASHER |
| 9. | 504382200 | [1] | JUNCTION | TOR Superseded by part number: 5801560222 |
| 10. | 504341194 | [3] | GASKET | TOR |
| 11. | 16673635 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TOR Superseded by part number: 16978124 |
| 12. | 16598325 | [3] | BOLT,Hex, M8 x 100mm | TOR |
| 13. | 2852389 | [2] | FLANGE NUT | TOR |
| 14. | 2852323 | [1] | SCREW | TOR Superseded by part number: 16597925 |
| 15. | 4798845 | [2] | BOLT,M8 x 1.25 x 16.50mm | TOR |
| 16. | 4893234 | [3] | HOSE CLAMP | TOR |
| 17. | 5801501991 | [1] | SLEEVE | TOR Superseded by part number: 5801530821 |
| 18. | 16673735 | [2] | BOLT,Hex, M8 x 1.25 x 25mm | TOR Superseded by part number: 10278301 |
