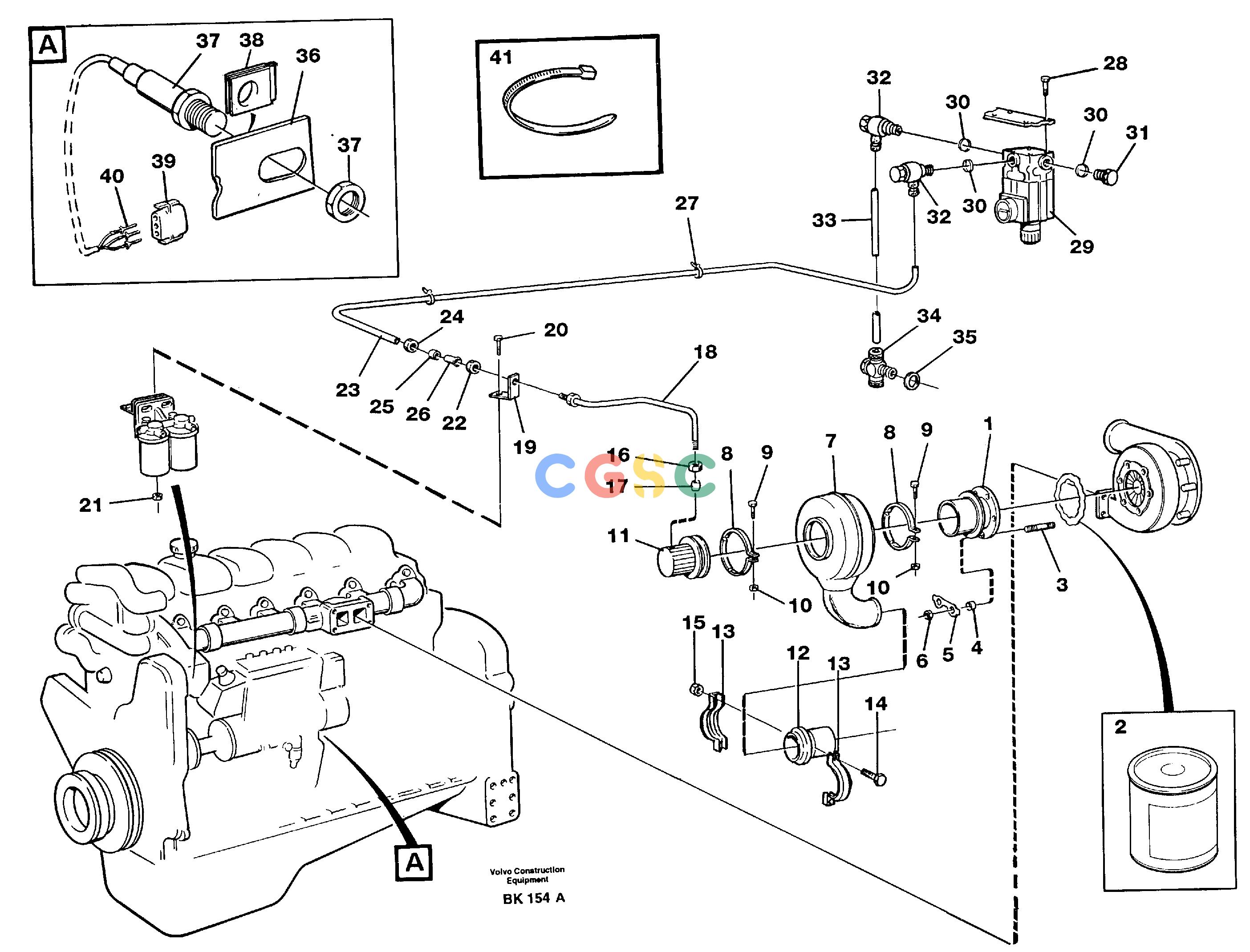

沃尔沃零件查询A35C VOLVO BM Exhaust brakeVOLVO BM A35C SER NO - 4620, NoneNone93071Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE478357
|
[1] |
Diffuser
|
|
| 2. |
VOE591247
|
[1] |
Sealant
|
Weight / Vikt: 1 kg
|
| 3. |
VOE13977297
|
[6] |
Stud
|
|
| 4. |
VOE470467
|
[6] |
Sleeve
|
|
| 5. |
VOE967666
|
[3] |
Tab washer
|
|
| 6. |
VOE13971074
|
[6] |
Hexagon nut
|
|
| 7. |
VOE8193567
|
[1] |
Shutter housing
|
|
| 8. |
VOE467310
|
[2] |
Clamp
|
|
| 9. |
VOE13965179
|
[2] |
Screw
|
|
| 10. |
VOE13945408
|
[2] |
Nut
|
|
| 11. |
|
[1] |
Regulator
|
|
| 12. |
VOE11051109
|
[1] |
Exhaust pipe
|
|
| 13. |
VOE11056190
|
[2] |
Clamp
|
|
| 14. |
VOE13965179
|
[2] |
Screw
|
|
| 15. |
VOE13945408
|
[2] |
Nut
|
|
| 16. |
VOE954356
|
[1] |
Fitting nut
|
|
| 17. |
VOE954364
|
[1] |
Ferrule
|
|
| 18. |
VOE948525
|
[1] |
Hose assembly
|
|
| 19. |
VOE4941573
|
[1] |
Anchorage
|
|
| 20. |
VOE13946934
|
[1] |
Screw
|
|
| 21. |
VOE13949278
|
[1] |
Flange lock nut
|
|
| 22. |
VOE192272
|
[1] |
Lock nut
|
|
| 23. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=2800MM
|
| 24. |
VOE954356
|
[2] |
Fitting nut
|
|
| 25. |
VOE954364
|
[2] |
Ferrule
|
|
| 26. |
VOE944717
|
[2] |
Sleeve
|
|
| 27. |
VOE4881440
|
[4] |
Cable tie
|
|
| 28. |
VOE971319
|
[4] |
Six point socket screw
|
|
| 29. |
VOE8158342
|
[1] |
Solenoid valve
|
MA49
|
| 30. |
VOE13947282
|
[3] |
Gasket
|
|
| 31. |
VOE960629
|
[1] |
Plug
|
|
| 32. |
VOE6626873
|
[2] |
Fitting
|
|
| |
VOE957175
|
[2] |
Gasket
|
|
| 33. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=200MM
|
| 34. |
VOE11062093
|
[1] |
Fitting
|
|
| 35. |
VOE907133
|
[1] |
Gasket
|
|
| 36. |
|
[1] |
Bracket
|
|
| 37. |
VOE11039223
|
[1] |
Induction sensor
|
SE53
|
| 38. |
VOE11039067
|
[1] |
Bushing
|
|
| 39. |
VOE13948297
|
[1] |
Tab housing
|
KG
|
| 40. |
VOE965824
|
[3] |
Cable terminal
|
|
| 41. |
VOE4821292
|
[6] |
Cable tie
|
|
