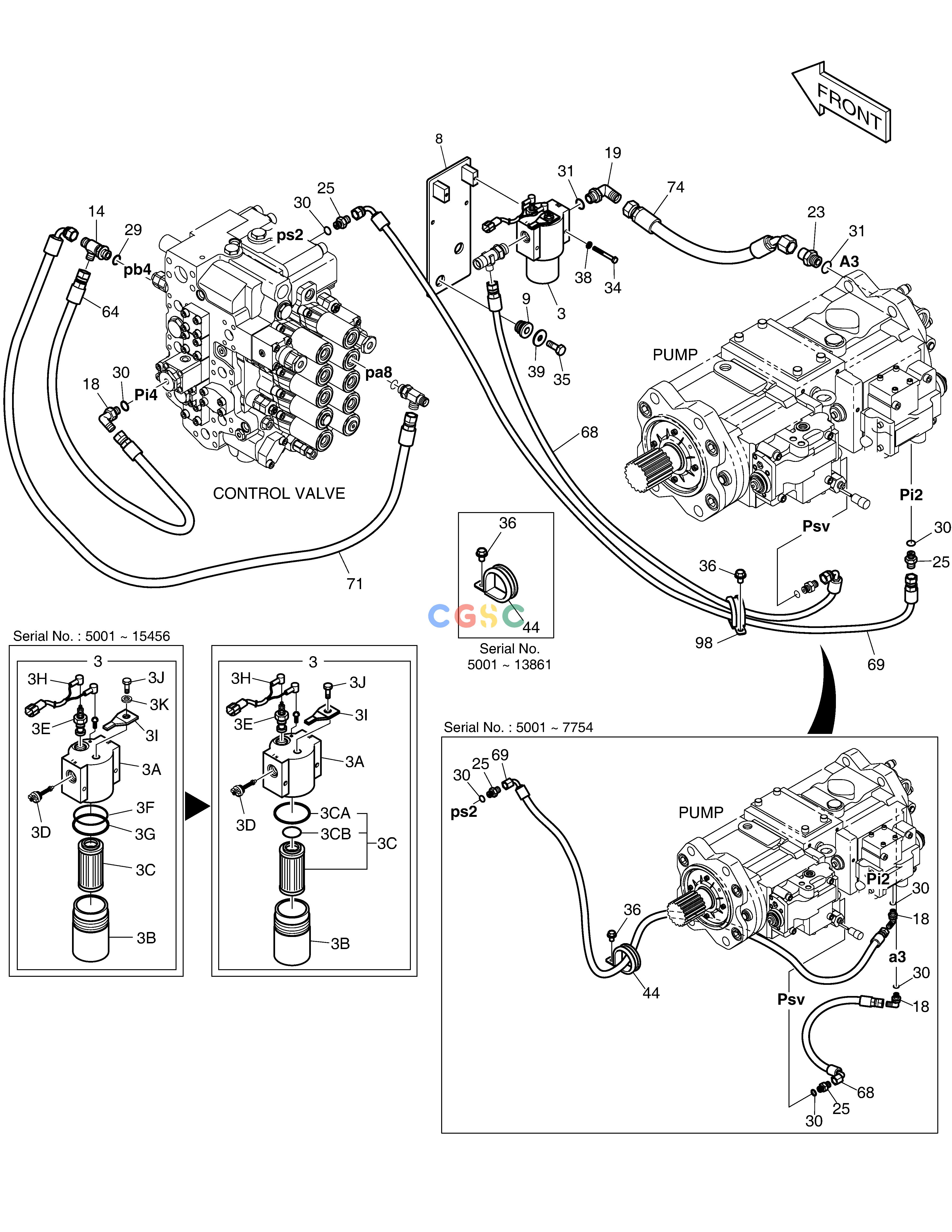

斗山零件查询PILOT PIPING(1) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
653 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-10191
|
[-] |
|
|
| -. |
K1044664A
|
[-] |
PILOT PIPING
|
|
| 14. |
2181-1951D6
|
[1] |
TEE
|
|
| 18. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 18. |
2181-1702D4
|
[3] |
ELBOW
|
|
| 19. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 23. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 25. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 29. |
S8000141
|
[1] |
O-RING
|
|
| 3. |
400407-00006
|
[1] |
FILTER,PILOT
|
|
| 3. |
471-00075A
|
[1] |
FILTER;PILOT
|
400407-00006
|
| 30. |
S8000111
|
[2] |
O-RING
|
|
| 30. |
S8000111
|
[5] |
O-RING
|
|
| 31. |
S8000181
|
[2] |
O-RING
|
|
| 34. |
S0553766
|
[2] |
BOLT
|
|
| 35. |
S0512266
|
[2] |
BOLT
|
|
| 36. |
K1001029
|
[2] |
BOLT
|
|
| 36. |
K1001029
|
[1] |
BOLT
|
|
| 36. |
K1001029
|
[1] |
BOLT
|
|
| 38. |
S5102303
|
[2] |
. WASHER
|
|
| 39. |
2114-1058D10
|
[2] |
WASHER
|
|
| 3A. |
NA00509
|
[1] |
. HEAD
|
|
| 3B. |
110913-00333
|
[1] |
|
|
| 3B. |
2472-7003
|
[1] |
CASE
|
|
| 3C. |
400504-00241
|
[1] |
ELEMENT,FILTER
|
|
| 3C. |
2471-1154
|
[1] |
ELEMENT;PILOT FILTER
|
|
| 3CA. |
401002-01472
|
[1] |
. O-RING
|
|
| 3CB. |
401002-01473
|
[1] |
. O-RING
|
|
| 3D. |
410128-00073
|
[1] |
|
|
| 3D. |
2426-1237
|
[1] |
VALVE;BY-PASS
|
|
| 3E. |
800217-00115
|
[1] |
|
|
| 3E. |
2471-1155A
|
[1] |
INDICATOR
|
|
| 3F. |
Y-3738-04
|
[1] |
O-RING
|
|
| 3G. |
Y-3738-05
|
[1] |
RING;BACK UP
|
|
| 3H. |
310207-03984
|
[1] |
|
|
| 3H. |
530-00236
|
[1] |
HARNESS;PILOT FILTER
|
|
| 3I. |
2197-1661
|
[1] |
BRACKET
|
|
| 3J. |
S0508653
|
[1] |
BOLT
|
|
| 3K. |
S5102503
|
[1] |
. WASHER
|
|
| 44. |
124-00208D9
|
[1] |
CLIP
|
|
| 64. |
DS2094053
|
[1] |
HOSE
|
|
| 68. |
2184-1046D94
|
[1] |
HOSE PF1/4-780L
|
|
| 68. |
DS2093180
|
[1] |
HOSE
|
|
| 69. |
2184-1046D120
|
[1] |
HOSE PF1/4-1950L
|
|
| 69. |
DS2093182
|
[1] |
HOSE
|
|
| 71. |
DS2093003
|
[1] |
HOSE
|
|
| 74. |
DS2054133
|
[1] |
HOSE
|
|
| 8. |
195-02716C
|
[1] |
BRACKET;FILTER
|
|
| 9. |
198-00016
|
[2] |
RUBBER
|
|
| 98. |
124-00208D6
|
[1] |
CLIP
|
|
