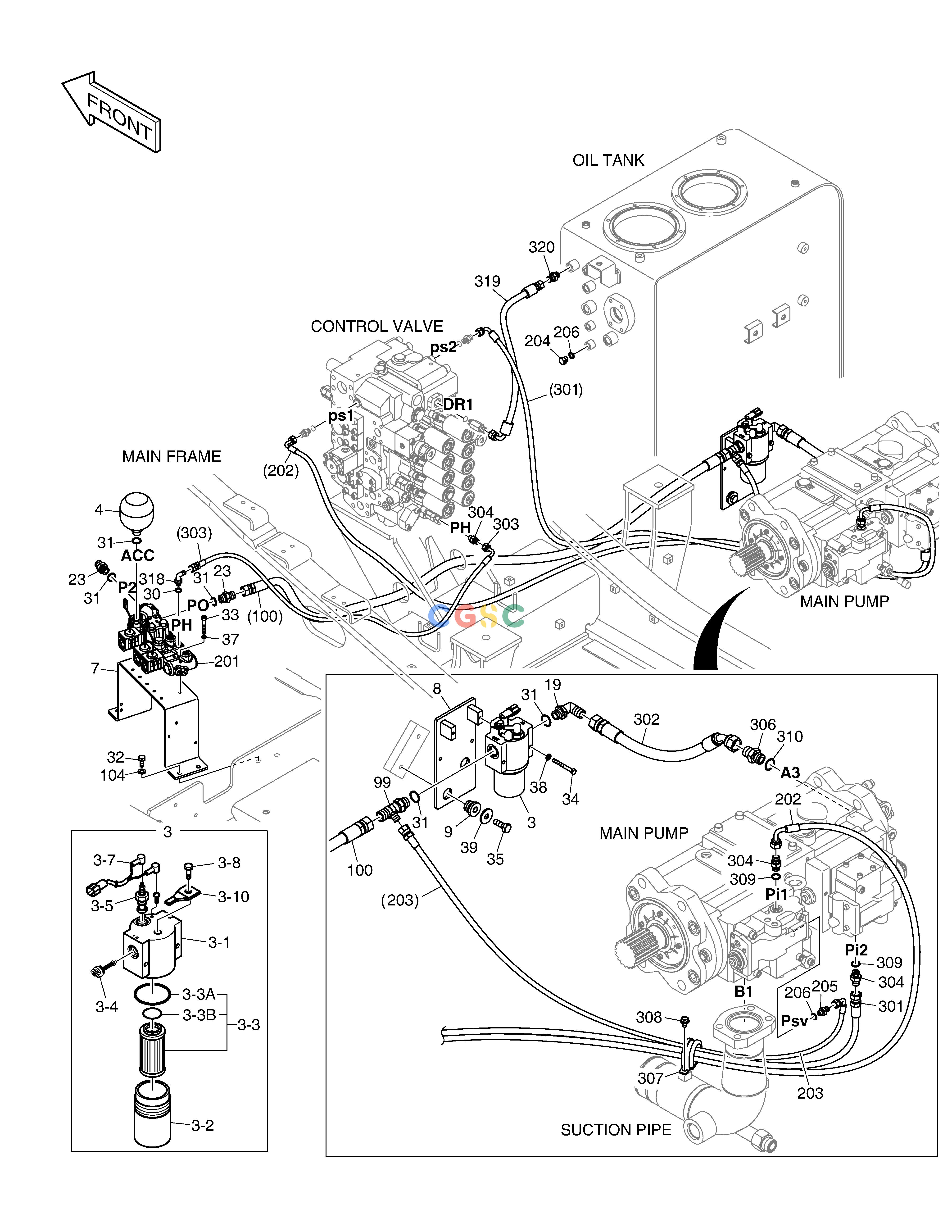

斗山零件查询PILOT PIPING(1) - PUMP DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
467 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13885
|
[-] |
|
|
| 100. |
DS2053827
|
[1] |
HOSE
|
|
| 104. |
120804-00076
|
[4] |
WASHER
|
|
| 19. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 201. |
K1047557
|
[1] |
VALVE;SOLENOID
|
|
| 202. |
DS2091333
|
[1] |
|
|
| 203. |
DS2154005
|
[1] |
|
|
| 204. |
DS2901009
|
[1] |
PLUG
|
|
| 205. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 206. |
S8000111
|
[2] |
O-RING
|
|
| 23. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 3. |
400407-00006
|
[2] |
FILTER,PILOT
|
|
| 3-1. |
NA00509
|
[1] |
. HEAD
|
|
| 3-10. |
2197-1661
|
[1] |
BRACKET
|
|
| 3-2. |
110913-00333
|
[1] |
|
|
| 3-3. |
400504-00241
|
[1] |
ELEMENT,FILTER
|
|
| 3-3A. |
401002-01472
|
[1] |
. O-RING
|
|
| 3-3B. |
401002-01473
|
[1] |
. O-RING
|
|
| 3-4. |
410128-00073
|
[1] |
|
|
| 3-5. |
800217-00115
|
[1] |
|
|
| 3-7. |
310207-03984
|
[1] |
|
|
| 3-8. |
S0508653
|
[1] |
BOLT
|
|
| 30. |
S8000111
|
[1] |
O-RING
|
|
| 301. |
2184-1046D120
|
[1] |
HOSE PF1/4-1950L
|
|
| 302. |
DS2054341
|
[1] |
HOSE
|
|
| 303. |
DS2093006
|
[1] |
HOSE
|
|
| 304. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 306. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 307. |
124-00208D6
|
[1] |
CLIP
|
|
| 308. |
K1001029
|
[1] |
BOLT
|
|
| 309. |
S8000111
|
[2] |
O-RING
|
|
| 31. |
S8000181
|
[5] |
O-RING
|
|
| 310. |
S8000181
|
[1] |
O-RING
|
|
| 318. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 319. |
DS2093185
|
[1] |
HOSE
|
|
| 32. |
S0512066
|
[4] |
. BOLT
|
|
| 320. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 33. |
S2209666
|
[2] |
BOLT
|
|
| 34. |
S0553766
|
[2] |
BOLT
|
|
| 35. |
S0512266
|
[2] |
BOLT
|
|
| 37. |
S5110503
|
[2] |
WASHER
|
|
| 38. |
S5102303
|
[2] |
. WASHER
|
|
| 39. |
2114-1058D10
|
[2] |
WASHER
|
|
| 4. |
2460-9057A
|
[1] |
ACCUMULATOR
|
|
| 7. |
110406-02868A
|
[1] |
|
|
| 7. |
110406-02868
|
[1] |
|
110406-02868A
|
| 8. |
110413-00068
|
[1] |
|
110413-00068A
|
| 8. |
110413-00068A
|
[1] |
|
|
| 9. |
198-00016
|
[2] |
RUBBER
|
|
| 99. |
2181-1951D19
|
[1] |
TEE
|
|
