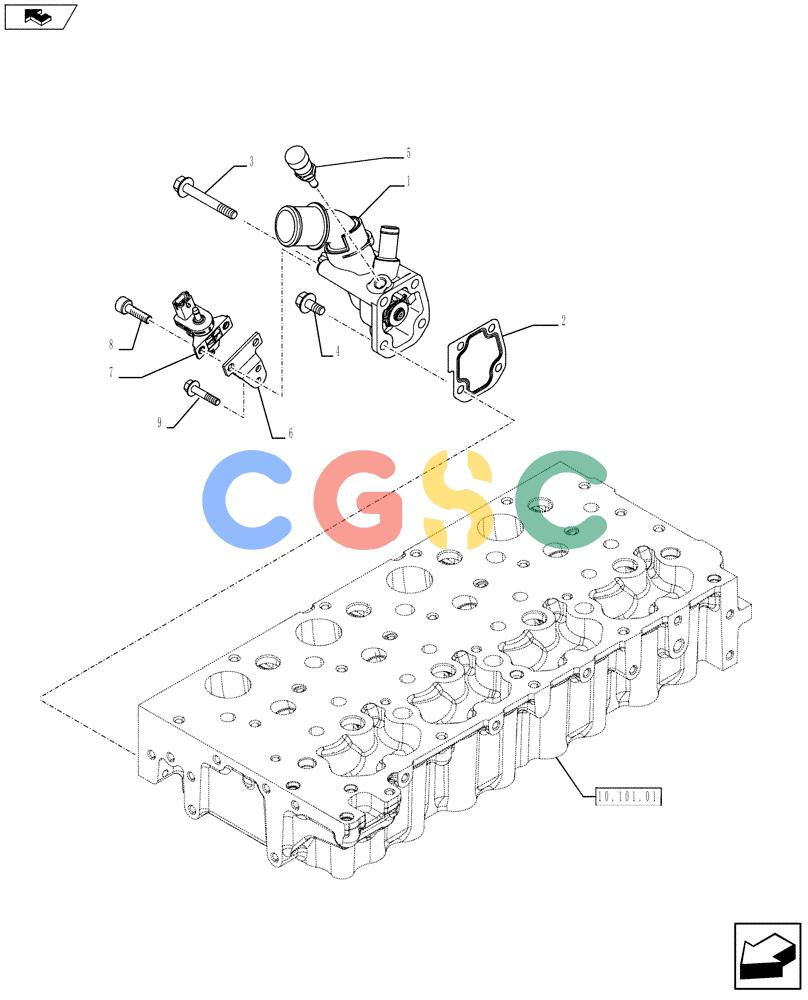

纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (10.402.01) - TEMPERATURE CONTROL (THERMOSTAT) - (5801367247) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
601 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801367249 | [1] | THERMOSTAT | TOR Superseded by part number: 5801649074 |
| 2. | 504385442 | [1] | GASKET | TOR |
| 3. | 16598325 | [2] | BOLT,Hex, M8 x 100mm | TOR |
| 4. | 16673635 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TOR Superseded by part number: 16978124 |
| 5. | 82017881 | [1] | SENSOR | BAS Superseded by part number: 500382599 |
| 6. | 5801402756 | [1] | BRACKET, SUPPORTING | TOR |
| 7. | 504385061 | [1] | PRESSURE CONTROL VALVE | TOR |
| 8. | 16689121 | [2] | SCREW,Skt Hd, M6 x 16mm | TOR Superseded by part number: 4895427 |
| 9. | 18137825 | [1] | BOLT,Hex, M6 x 16mm | TOR |
