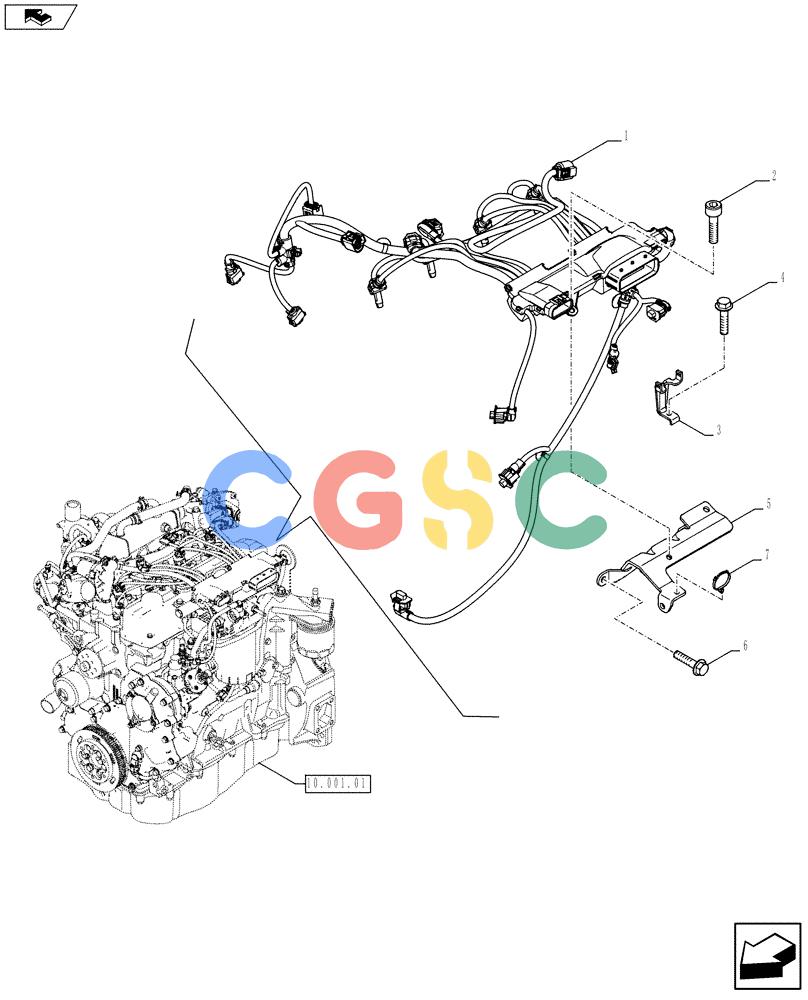

纽荷兰零件查询(F5HFL413B A002) - ENGINE 5801438206 - 84393712 (55.100.05) - MOTOR ELECTRIC INSTALLATION (504388075) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801388185 | [1] | HARNESS | TOR Superseded by part number: 5801547540, 5801595062, 5801536153, 5801535458 |
| 2. | 16689124 | [1] | SCREW,M6 x 16mm | ZED |
| 3. | 5801415975 | [2] | BRACKET, SUPPORTING | TOR |
| 4. | 16978124 | [2] | BOLT,Hex, M6 x 14mm | TOR |
| 5. | 504388110 | [1] | RETAINER | TOR |
| 6. | 16673635 | [3] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TOR Superseded by part number: 16978124 |
| 7. | 5801392545 | [1] | CLAMP | TOR |
