沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ATransmissionsExhaust and Cooling Water PipeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
439 次

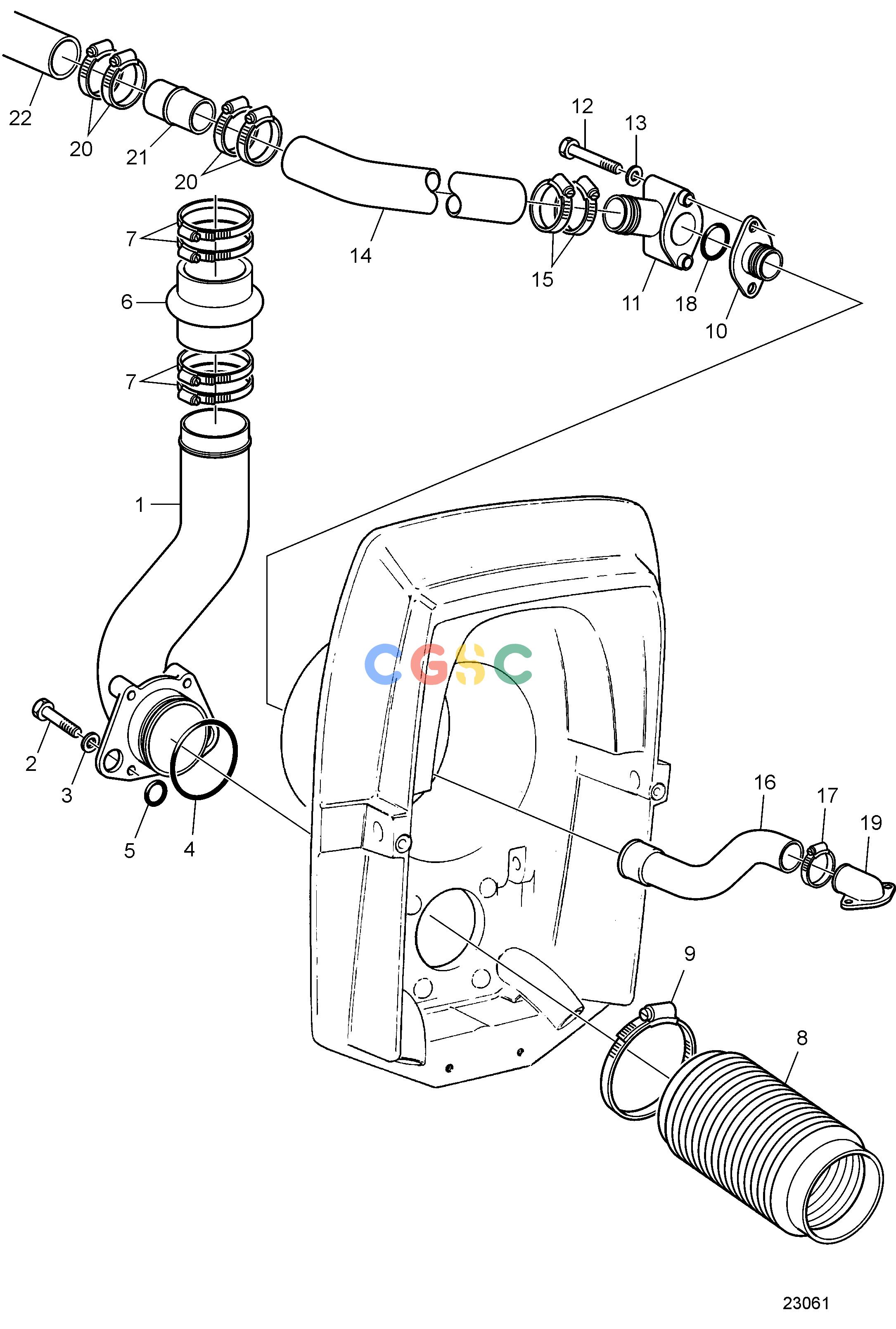

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581130
|
[1] |
Exhaust pipe
|
(873114)
|
| 2. |
947790
|
[4] |
Flange screw
|
|
| 3. |
976945
|
[4] |
Washer
|
|
| 4. |
925256
|
[1] |
O-ring
|
|
| 5. |
925064
|
[2] |
O-ring
|
|
| 6. |
860396
|
[1] |
Exhaust hose
|
|
| 7. |
982694
|
[4] |
Hose clamp
|
|
| 8. |
876631
|
[1] |
Bellows kit
|
|
| 9. |
872531
|
[2] |
Hose clamp
|
|
| 10. |
872334
|
[1] |
Nipple
|
|
| 11. |
872338
|
[1] |
Hose connection
|
|
| 12. |
955516
|
[2] |
Hexagon screw
|
|
| 13. |
955893
|
[2] |
Washer
|
|
| 14. |
861742
|
[1] |
Hose
|
Intake-sea water pump.
|
| 15. |
961669
|
[2] |
Hose clamp
|
|
| 16. |
876632
|
[1] |
Hose kit
|
|
| 17. |
853548
|
[1] |
Hose clamp
|
|
| 18. |
925064
|
[1] |
O-ring
|
|
| 19. |
872752
|
[1] |
Hose connection
|
|
| 20. |
961669
|
[4] |
Hose clamp
|
|
| 21. |
861090
|
[1] |
Tube
|
|
| 22. |
|
|
|
Intake-sea water pump., See group 26
|
