沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ATransmissionsFlywheel Housing and Primary ShaftEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
450 次

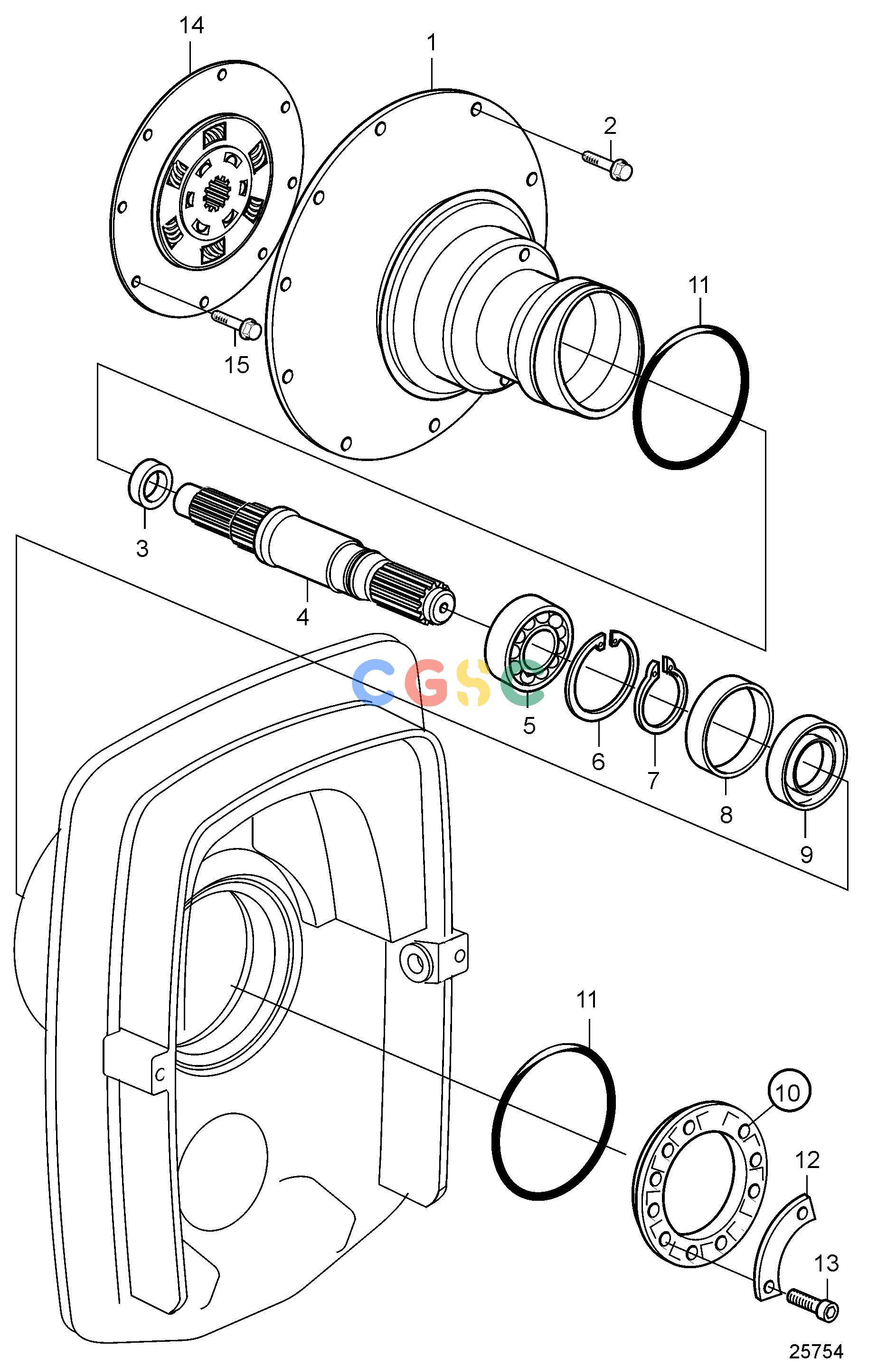

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872836
|
[1] |
Flywheel housing
|
Repl by 3860991
|
| 1. |
3860991
|
[1] |
Flywheel housing
|
|
| 2. |
946752
|
[9] |
Flange screw
|
L=35mm, alt AD31
|
| 2. |
965185
|
[1] |
Flange screw
|
L=40mm, alt AD31
|
| 3. |
872761
|
[1] |
Bushing
|
|
| 4. |
873013
|
[1] |
Primary shaft
|
|
| 5. |
184841
|
[1] |
Ball bearing
|
|
| 6. |
914533
|
[1] |
Snap ring
|
|
| 7. |
914462
|
[1] |
Snap ring
|
|
| 8. |
872991
|
[1] |
Bearing bushing
|
|
| 9. |
958860
|
[1] |
Sealing ring
|
|
| 10. |
854317
|
[1] |
Clamping ring kit
|
|
| 11. |
813967
|
[2] |
Rubber ring
|
|
| 12. |
806624
|
[3] |
Striker plate
|
|
| 13. |
191844
|
[6] |
Hexagon screw
|
|
| 14. |
855389
|
[1] |
Absorber
|
D31
|
| 14. |
855617
|
[1] |
Oscillation damper
|
D41
|
| 15. |
946173
|
[6] |
Flange screw
|
|
