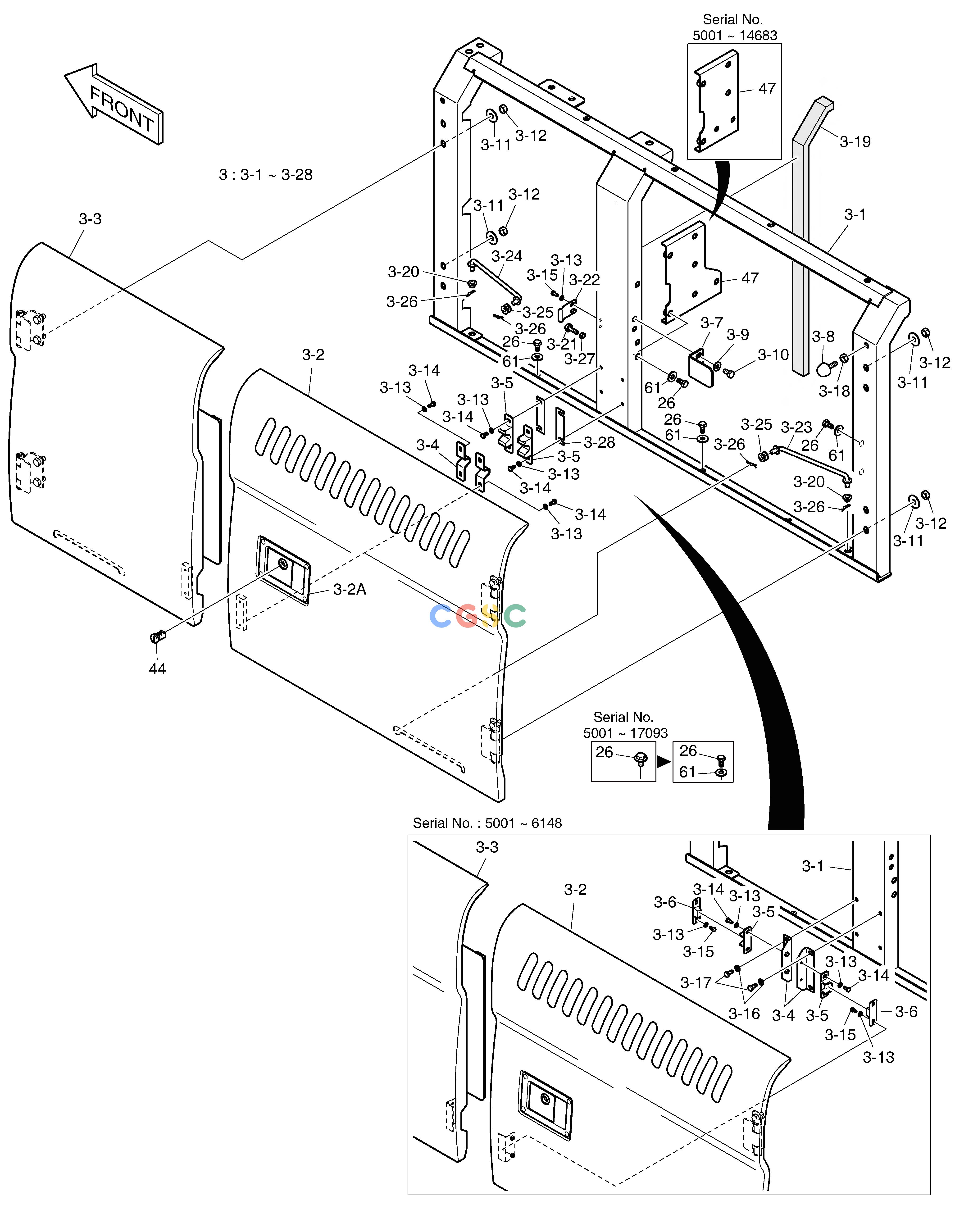

斗山零件查询SIDE DOOR - L.H DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1039799B
|
[-] |
COVER ASS'Y
|
|
| -. |
110508-23571
|
[-] |
|
|
| 26. |
DS0025015
|
[10] |
BOLT
|
|
| 26. |
S0515066
|
[10] |
BOLT
|
|
| 3. |
K1038922B
|
[1] |
SIDE DOOR ASS'Y (L.H)
|
110982-00129
|
| 3. |
110982-00129
|
[1] |
|
110982-00129A
|
| 3. |
110982-00129A
|
[1] |
|
110982-00129B
|
| 3. |
110982-00129B
|
[1] |
|
110982-00129C
|
| 3. |
110982-00129C
|
[1] |
|
|
| 3-1. |
K1038917B
|
[1] |
SUPPORT(L.H)
|
|
| 3-1. |
110958-00230
|
[1] |
|
|
| 3-10. |
S0511853
|
[2] |
BOLT
|
|
| 3-10. |
S0512053
|
[2] |
BOLT
|
|
| 3-11. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 3-11. |
120804-00079
|
[8] |
WASHER
|
|
| 3-12. |
S4012733
|
[8] |
NUT
|
|
| 3-13. |
S5010313
|
[10] |
WASHER
|
|
| 3-14. |
S0504553
|
[4] |
BOLT
|
|
| 3-14. |
S0504553
|
[8] |
BOLT
|
|
| 3-15. |
S0504453
|
[6] |
BOLT
|
|
| 3-15. |
S0504453
|
[2] |
BOLT
|
|
| 3-16. |
S5010513
|
[4] |
WASHER
|
|
| 3-17. |
S0508753
|
[4] |
BOLT M8X1.25X18
|
|
| 3-18. |
S4012633
|
[1] |
NUT
|
|
| 3-19. |
NA00465
|
[1] |
|
|
| 3-2. |
K1038918
|
[1] |
DOOR(R.H)
|
|
| 3-2. |
110982-00130
|
[1] |
|
110982-00130A
|
| 3-2. |
110982-00130A
|
[1] |
|
110982-00130B
|
| 3-2. |
110982-00130B
|
[1] |
|
|
| 3-20. |
K1000602
|
[2] |
. BUSHING
|
|
| 3-21. |
K1048085
|
[1] |
STOPPER;RUBBER
|
|
| 3-22. |
K1039869B
|
[1] |
PLATE;LOCK
|
|
| 3-23. |
623-00074B
|
[1] |
. STAY ASSY(R.H)
|
101582-00619A
|
| 3-23. |
101582-00619A
|
[1] |
|
|
| 3-24. |
623-00075B
|
[1] |
. STAY ASSY(L.H)
|
|
| 3-24. |
101582-00618A
|
[1] |
|
|
| 3-25. |
K1008335
|
[2] |
. BUSHING
|
|
| 3-26. |
2705-9002
|
[4] |
PIN
|
|
| 3-27. |
S4012533
|
[1] |
NUT
|
|
| 3-28. |
110947-00027
|
[2] |
. SHIM
|
|
| 3-2A. |
125-00034A
|
[1] |
LOCK
|
|
| 3-3. |
K1038919B
|
[1] |
DOOR(L.H)
|
|
| 3-3. |
110982-00131
|
[1] |
|
|
| 3-3. |
110982-00131A
|
[1] |
|
|
| 3-4. |
2116-1522
|
[2] |
PLATE
|
|
| 3-4. |
250201-00028
|
[2] |
. PLATE
|
|
| 3-5. |
2161-9052
|
[2] |
STOPPER;PLATE
|
|
| 3-5. |
110956-00002
|
[2] |
|
110956-00002A
|
| 3-5. |
110956-00002A
|
[2] |
. STOPPER
|
|
| 3-6. |
2161-9053
|
[2] |
STOPPER;RUBBER
|
|
| 3-7. |
K1038920
|
[1] |
PLATE;LOCK
|
|
| 3-8. |
K1001260A
|
[1] |
STOPPER
|
|
| 3-9. |
2114-1058D45
|
[2] |
. WASHER
|
|
| 3-9. |
120804-00078
|
[2] |
WASHER
|
|
| 44. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 47. |
K1045909
|
[1] |
PLATE
|
|
| 47. |
250201-02833
|
[1] |
|
250201-02833A
|
| 47. |
250201-02833A
|
[1] |
|
|
| 61. |
120804-00079
|
[10] |
WASHER
|
|
