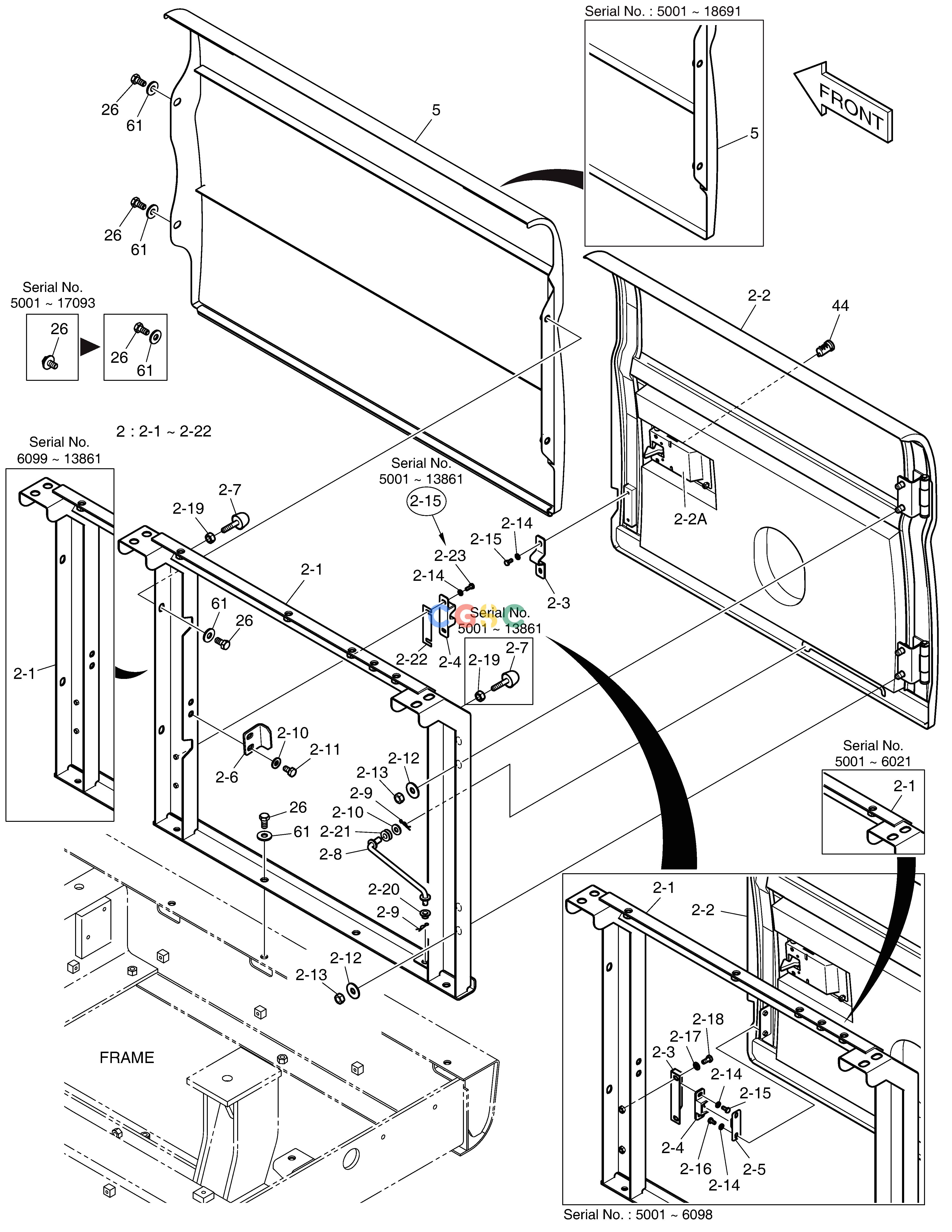

斗山零件查询SIDE DOOR - R.H DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-00244
|
[-] |
|
|
| -. |
K1046071C
|
[-] |
COVER ASS'Y
|
|
| 2. |
110982-00103A
|
[1] |
|
110982-00103B
|
| 2. |
K1043854A
|
[1] |
SIDE DOOR ASS'Y (R.H)
|
110982-00103
|
| 2. |
110982-00103
|
[1] |
|
110982-00103A
|
| 2. |
110982-00103B
|
[1] |
|
110982-00103C
|
| 2. |
110982-00103C
|
[1] |
|
110982-00103E
|
| 2. |
110982-00103E
|
[1] |
|
110982-00103G
|
| 2. |
110982-00103G
|
[1] |
|
|
| 2-1. |
110958-00181A
|
[1] |
|
|
| 2-1. |
K1043855A
|
[1] |
SUPPORT(R.H)
|
|
| 2-1. |
110958-00181
|
[1] |
|
|
| 2-1. |
110958-00181B
|
[1] |
|
|
| 2-10. |
2114-1058D45
|
[3] |
. WASHER
|
|
| 2-10. |
120804-00078
|
[3] |
WASHER
|
|
| 2-11. |
S0511853
|
[2] |
BOLT
|
|
| 2-11. |
S0512053
|
[2] |
BOLT
|
|
| 2-12. |
2114-1058D30
|
[4] |
. WASHER
|
|
| 2-12. |
120804-00079
|
[4] |
WASHER
|
|
| 2-13. |
S4012733
|
[4] |
NUT
|
|
| 2-14. |
S5010313
|
[4] |
WASHER
|
|
| 2-15. |
S0504553
|
[2] |
BOLT
|
|
| 2-15. |
S0504553
|
[4] |
BOLT
|
|
| 2-15. |
S0504553
|
[2] |
BOLT
|
|
| 2-16. |
S0504453
|
[2] |
BOLT
|
|
| 2-17. |
S5010513
|
[2] |
WASHER
|
|
| 2-18. |
S0508753
|
[2] |
BOLT M8X1.25X18
|
|
| 2-19. |
S4012633
|
[2] |
NUT
|
|
| 2-19. |
S4012633
|
[1] |
NUT
|
|
| 2-2. |
621-03449E
|
[1] |
SIDE DOOR
|
|
| 2-2. |
110982-00128
|
[1] |
|
110982-00128A
|
| 2-2. |
110982-00128A
|
[1] |
|
|
| 2-2. |
110982-00128B
|
[1] |
|
|
| 2-2. |
110982-00128C
|
[1] |
|
|
| 2-20. |
K1000602
|
[1] |
. BUSHING
|
|
| 2-21. |
K1008335
|
[1] |
. BUSHING
|
|
| 2-22. |
110947-00027
|
[1] |
. SHIM
|
|
| 2-23. |
S0504653
|
[2] |
. BOLT
|
|
| 2-2A. |
125-00035A
|
[1] |
LOCK
|
|
| 2-3. |
2116-1522
|
[1] |
PLATE
|
|
| 2-3. |
250201-00028
|
[1] |
. PLATE
|
|
| 2-4. |
2161-9052
|
[1] |
STOPPER;PLATE
|
|
| 2-4. |
110956-00002
|
[1] |
|
110956-00002A
|
| 2-4. |
110956-00002A
|
[1] |
. STOPPER
|
|
| 2-5. |
2161-9053
|
[1] |
STOPPER;RUBBER
|
|
| 2-6. |
621-02726A
|
[1] |
. PLATE,LOCK
|
|
| 2-7. |
K1001260A
|
[2] |
STOPPER
|
|
| 2-7. |
K1001260A
|
[1] |
STOPPER
|
|
| 2-8. |
623-00075B
|
[1] |
. STAY ASSY(L.H)
|
|
| 2-8. |
101582-00618A
|
[1] |
|
|
| 2-9. |
2705-9002
|
[2] |
PIN
|
|
| 26. |
DS0025015
|
[8] |
BOLT
|
|
| 26. |
S0515066
|
[8] |
BOLT
|
|
| 44. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 5. |
621-03642C
|
[1] |
TANK COVER
|
110508-29658
|
| 5. |
110508-29658
|
[1] |
|
|
| 61. |
120804-00079
|
[8] |
WASHER
|
|
