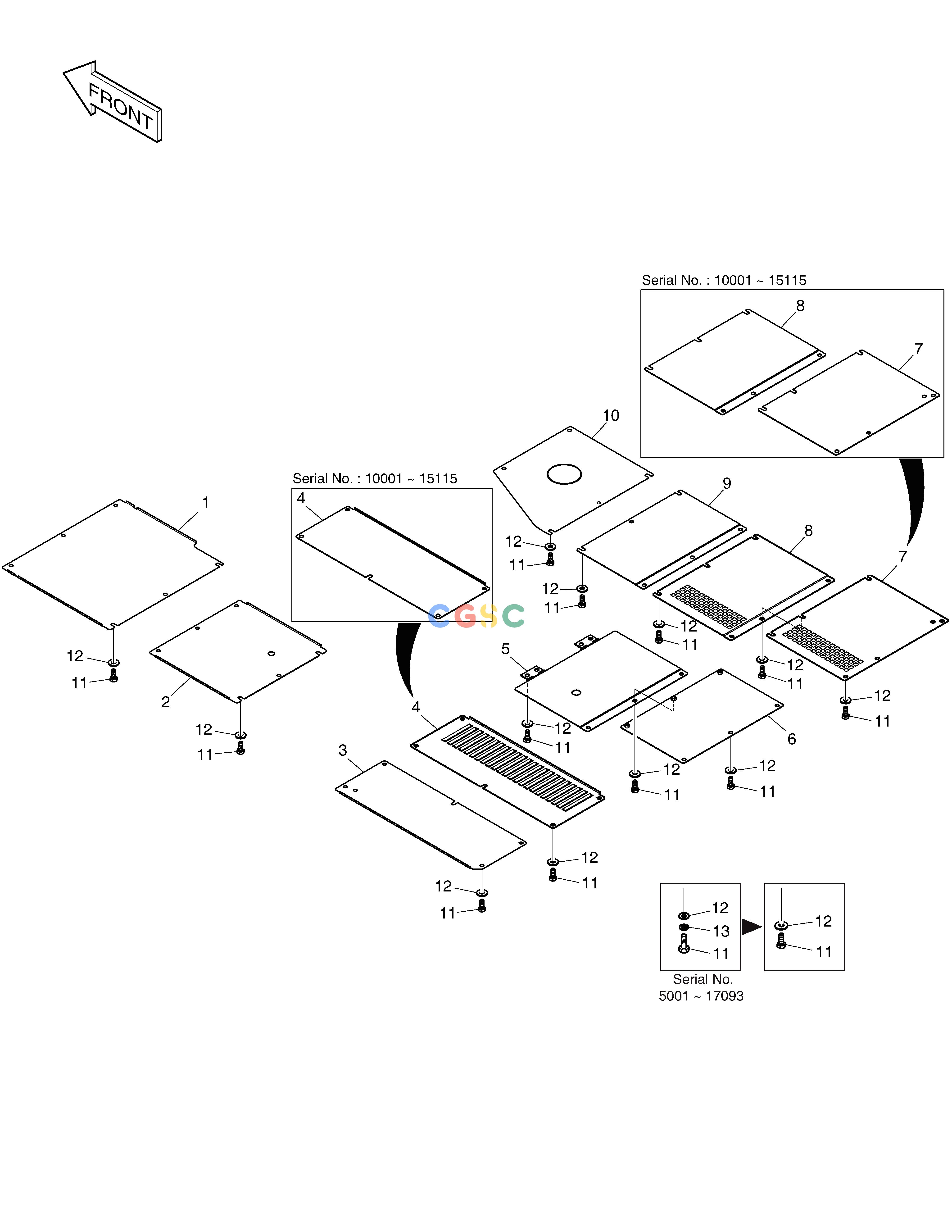

斗山零件查询UNDER COVER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
287 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045932
|
[-] |
UNDER COVER ASS'Y
|
|
| -. |
110513-01417
|
[-] |
|
|
| 1. |
K1000591A
|
[1] |
COVER;UNDER
|
|
| 10. |
K1000600B
|
[1] |
COVER;UNDER
|
|
| 11. |
S0560466
|
[49] |
BOLT
|
|
| 11. |
S0515266
|
[49] |
BOLT
|
|
| 12. |
DS0401188
|
[49] |
WASHER
|
|
| 12. |
120804-00079
|
[49] |
WASHER
|
|
| 13. |
S5102703
|
[49] |
WASHER
|
|
| 2. |
K1000592A
|
[1] |
COVER;UNDER
|
|
| 3. |
K1024692
|
[1] |
COVER;UNDER
|
|
| 4. |
K1039134
|
[1] |
COVER;UNDER
|
|
| 4. |
110513-01352
|
[1] |
|
|
| 5. |
K1045929
|
[1] |
COVER;UNDER
|
|
| 6. |
K1039137
|
[1] |
COVER;UNDER
|
|
| 7. |
K1041250
|
[1] |
COVER;UNDER
|
110513-01351
|
| 7. |
110513-01351
|
[1] |
|
|
| 8. |
K1041251
|
[1] |
COVER;UNDER
|
110513-01350
|
| 8. |
110513-01350
|
[1] |
|
|
| 9. |
K1041252
|
[1] |
COVER;UNDER
|
|
