斗山零件查询SWING MOTOR DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
921 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

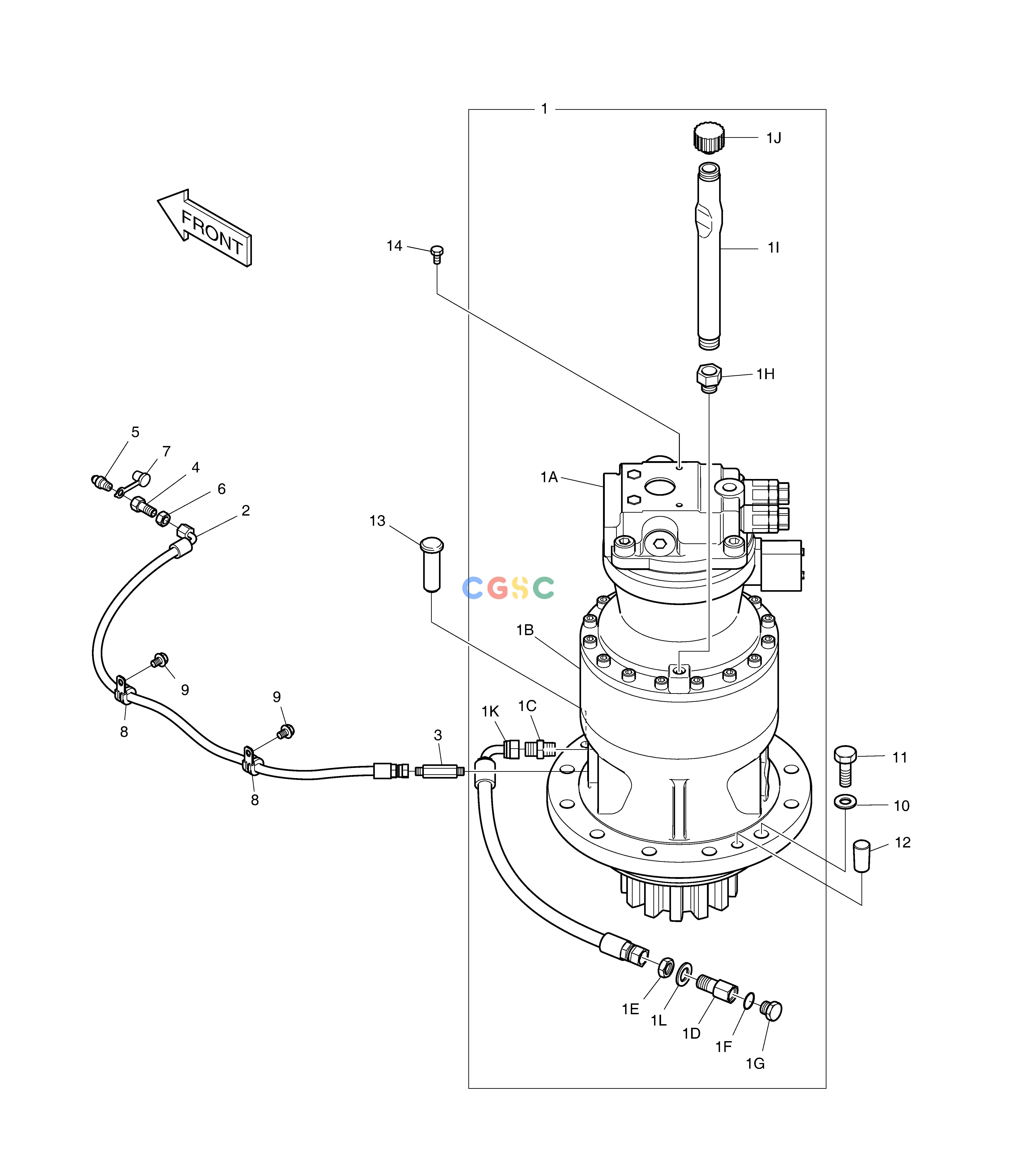

401-00477J
|
[-] |
SWING DEVICE ASS'Y
|
|
| 1. |
K1045919
|
[1] |
SWING DEVICE SUB ASS'Y
|
170301-00111
|
| 1. |
170301-00111
|
[1] |
|
170301-00111A
|
| 1. |
170301-00111A
|
[1] |
|
170301-00111B
|
| 1. |
170301-00111B
|
[1] |
|
170301-00111C
|
| 1. |
170301-00111C
|
[1] |
|
170301-00111E
|
| 1. |
170301-00111E
|
[1] |
|
|
| 10. |
2114-9012A
|
[11] |
WASHER
|
|
| 11. |
S0570166
|
[11] |
BOLT M20X2.5X65
|
|
| 12. |
160-00027
|
[2] |
CAP
|
|
| 13. |
2123-4030
|
[1] |
PIN;LOCK
|
|
| 14. |
S0511666
|
[2] |
BOLT
|
|
| 1A. |
K1045024
|
[1] |
SWING MOTOR
|
170303-00049
|
| 1A. |
170303-00049
|
[1] |
|
170303-00049B
|
| 1A. |
170303-00049B
|
[1] |
|
|
| 1B. |
K1038203
|
[1] |
SWING REDUCTION GEAR ASS'Y
|
130426-00010
|
| 1B. |
130426-00010
|
[1] |
|
130426-00010A
|
| 1B. |
130426-00010A
|
[1] |
|
|
| 1C. |
2181-1110D3
|
[1] |
. ADAPTER
|
|
| 1D. |
181-00698
|
[1] |
REDUCER
|
|
| 1E. |
121-00010D3
|
[1] |
. NUT
|
|
| 1F. |
S8000181
|
[1] |
O-RING
|
|
| 1G. |
2181-1950D7
|
[1] |
. PLUG
|
DS2901008
|
| 1G. |
DS2901008
|
[1] |
. PLUG
|
|
| 1H. |
2181-1913D24
|
[1] |
REDUCER
|
|
| 1I. |
K1000266
|
[1] |
PIPE
|
|
| 1J. |
2119-1063B
|
[1] |
. CAP
|
|
| 1K. |
2184-1036D43
|
[1] |
HOSE PF1/2-550L
|
|
| 1L. |
S5011113
|
[1] |
. WASHER
|
|
| 2. |
2184-1046D50
|
[1] |
HOSE
|
|
| 3. |
DS2214051
|
[1] |
ADAPTER
|
|
| 4. |
181-00103
|
[1] |
REDUCER
|
|
| 5. |
S6710041
|
[1] |
NIPPLE,GREASE
|
|
| 6. |
121-00006
|
[1] |
NUT
|
|
| 7. |
160-00020
|
[1] |
CAP
|
|
| 8. |
124-00208D2
|
[2] |
CLAMP
|
|
| 9. |
120-00276
|
[2] |
BOLT M8X1.25X12
|
|
