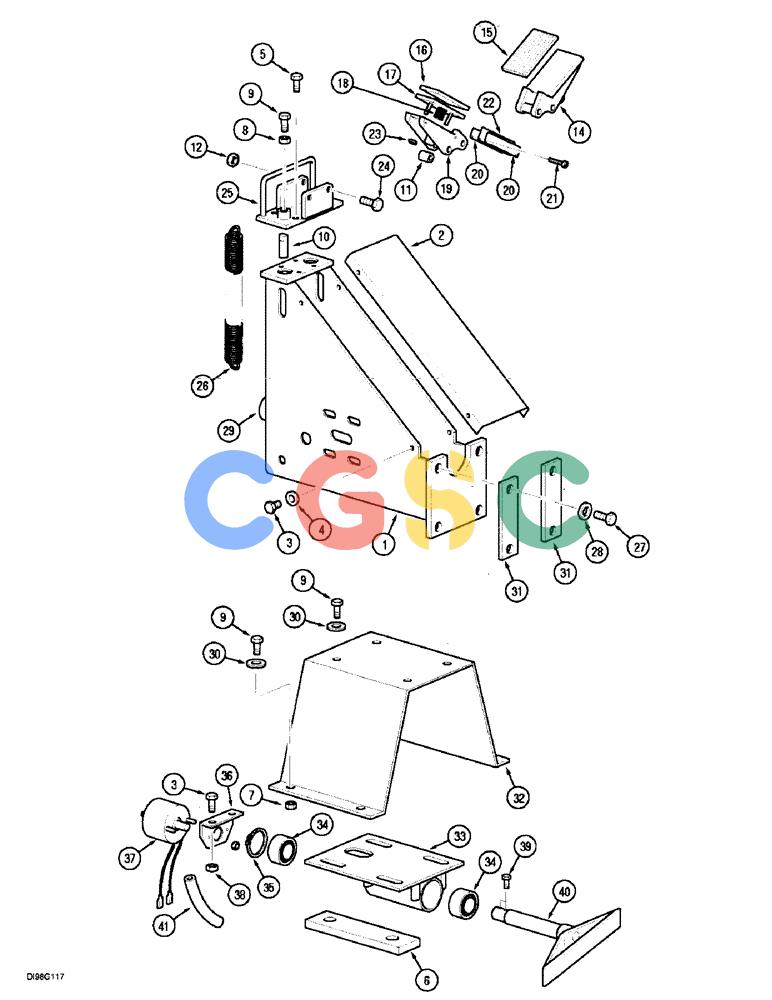

| 1. |
276845A1
|
[1] |
BODY
|
CAS
housing
|
| 2. |
276848A1
|
[1] |
PLATE
|
CAS
cover
|
| 3. |
614-6016
|
[6] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| 4. |
895-11006
|
[4] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
CAS
Superseded by part number: 86588450
|
| 5. |
864-6016
|
[4] |
HEX SOC SCREW,M6 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 14305221
|
| 6. |
313093A1
|
[2] |
PLATE
|
CAS
200 mm
|
| 7. |
832-10410
|
[4] |
NUT,M10 x 1.5, Cl 8
|
CAS
If Used Superseded by part number: 190003888452
|
| 8. |
829-4410
|
[2] |
THIN NUT,Thin, M10 x 1.5, Cl 05
|
CAS
Superseded by part number: 934300R1
|
| 9. |
614-10025
|
[10] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 11106231
|
| 10. |
276882A1
|
[2] |
PLUNGER
|
CAS
|
| 11. |
276883A1
|
[2] |
BUSHING
|
CAS
|
| 13. |
276870A1
|
[2] |
RETAINER
|
CAS
|
| . . |
276869A1
|
[1] |
PLATE
|
CAS
BRACKET ASSY., order: 14 and 19 Superseded by part number: 313089A1, 313088A1
|
| 14. |
313089A1
|
[1] |
PLATE
|
CAS
BRACKET ASSY., replaces: 276869A1 round bale
|
| 14. |
319091A1
|
[1] |
PLATE
|
CAS
BRACKET ASSY., replaces: 276869A1 round/rectangular bale #8630, (DBG0000522 -) #8650, (DBG0004026 -)
|
| 15. |
276871A1
|
[1] |
WEAR PAD
|
IH
|
| 15. |
319093A1
|
[1] |
PAD
|
CAS
round/rectangular #8630, (DBG0000522 -) #8650, (DBG0004026 -)
|
| 16. |
276872A1
|
[1] |
WEAR PAD
|
IH
|
| 16. |
319094A1
|
[1] |
PAD
|
CAS
round/rectangular bale #8630, (DBG0000522 -) #8650, (DBG0004026 -)
|
| 17. |
276865A1
|
[1] |
PLATE ASSY.
|
CAS
|
| 17. |
319090A1
|
[1] |
CLAMP
|
CAS
PLATE ASSY., round/rectangular bale #8630, (DBG0000522 -) #8650, (DBG0004026 -)
|
| 18. |
276867A1
|
[1] |
COMPRESSION SPRING
|
CAS
|
| . . |
276864A1
|
[1] |
BRACKET
|
CAS
ASSY., order: 14 and 19 Superseded by part number: 313088A1, 313089A1
|
| 19. |
313088A1
|
[1] |
BRACKET
|
CAS
ASSY., replaces: 276864A1 round bale
|
| 19. |
319089A1
|
[1] |
CLAMP
|
CAS
BRACKET ASSY., replaces: 276864A1 round/rectangular bale #8630, (DBG0000522 -) #8650, (DBG0004026 -)
|
| 20. |
276873A1
|
[2] |
KNIFE
|
CAS
clamp
|
| 21. |
840-1612
|
[2] |
SCREW,Pan, M6 x 12mm, Cl 4.8
|
CAS
Superseded by part number: 86511828
|
| 22. |
277085A1
|
[1] |
KNIFE
|
IH
sets of 5
|
| 23. |
832-10406
|
[2] |
NUT,M6 x 1, Cl 8
|
CAS
|
| 24. |
814-10080
|
[4] |
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
|
CAS
Superseded by part number: 129796A1
|
| 25. |
276868A1
|
[1] |
BODY
|
CAS
CLAMP
|
| 26. |
276866A1
|
[2] |
COIL SPRING
|
CAS
|
| 27. |
814-16090
|
[4] |
BOLT,Hex, M16 x 2 x 90mm, Cl 8.8
|
CAS
Superseded by part number: 350616
|
| 28. |
892-11016
|
[4] |
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
|
CAS
Superseded by part number: 87016618
|
| 29. |
219-14
|
[4] |
LUBE NIPPLE,1/4" NPTF
|
CAS
|
| 31. |
276847A1
|
[2] |
PLATE
|
CAS
|
| 32. |
276878A1
|
[1] |
HOUSING
|
CAS
|
| 33. |
276874A1
|
[1] |
MOUNTING PARTS
|
CAS
PLATE ASSY.
|
| 34. |
295109R91
|
[2] |
BALL BEARING
|
IH
ball Superseded by part number: 84188095
|
| 35. |
800-1125
|
[1] |
SNAP RING,M25, Ext
|
CAS
Retaining Superseded by part number: 370002
|
| 36. |
276877A1
|
[1] |
FIXING BRACKET
|
CAS
|
| 37. |
276876A1
|
[1] |
SOLENOID
|
CAS
|
| 38. |
829-1406
|
[2] |
NUT,Hex, M6 x 1, Cl 10.9
|
CAS
Superseded by part number: 86500688, 87778396
|
| 39. |
877-10816
|
[2] |
SET SCREW,Hex Skt, M8 x 16mm, Cup Pt
|
CAS
M8 x 16 Superseded by part number: 300477
|
| 40. |
276875A1
|
[1] |
SHAFT
|
CAS
|
| 41. |
284397A1
|
[1] |
SLEEVE
|
CAS
rubber
|
| 30. |
895-11010
|
[8] |
WASHER,11mm ID x 20mm OD x 2mm Thk
|
CAS
11 x 21 x 2 mm Superseded by part number: 14496621
|
