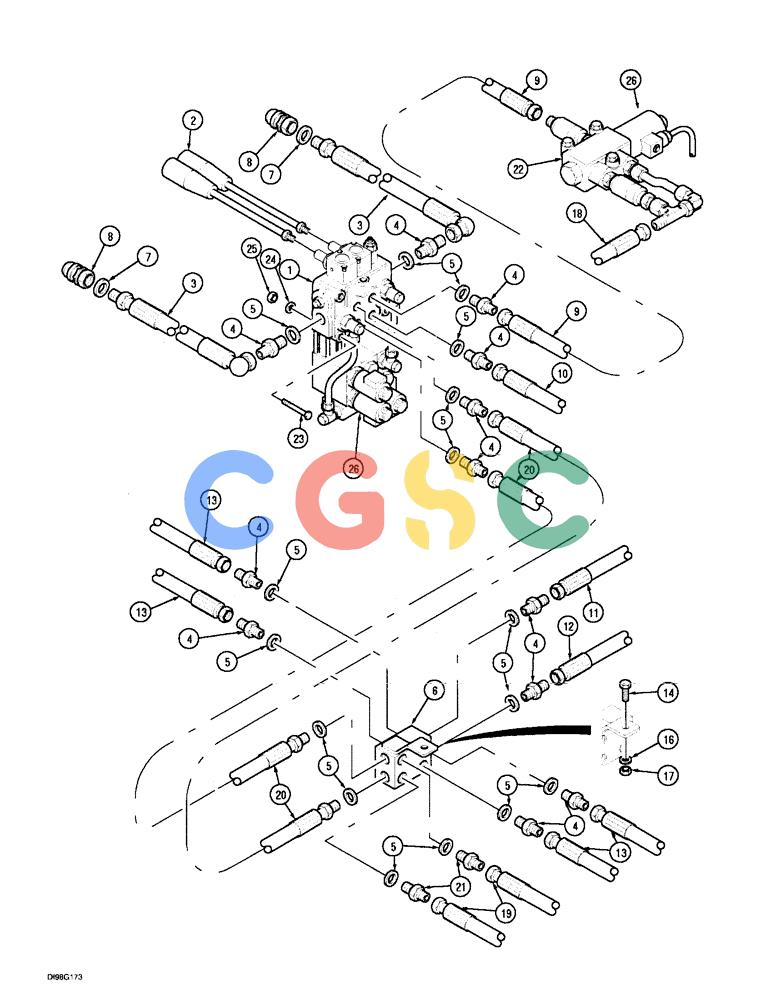

凯斯零件查询(8630) - CASE IH BALE WRAPPER (1/95-12/97) (2-34) - HYDRAULIC SYSTEM, 8630, ELECTRONIC CONTROL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
277613A1
|
[1] |
VALVE
|
CAS
control, Includes: 2
|
| 2. |
277873A1
|
[2] |
CONTROL LEVER
|
CAS
|
| 3. |
277033A1
|
[2] |
HOSE
|
CAS
ASSY., 2000 mm supply and return
|
| 4. |
277034A1
|
[12] |
ADAPTER
|
CAS
|
| 5. |
277035A1
|
[1] |
SEAL
|
IH
|
| 6. |
277620A1
|
[1] |
MANIFOLD
|
CAS
ASSY.
|
| 7. |
277037A1
|
[2] |
SEAL
|
CAS
1/2 in BSP
|
| 8. |
277036A1
|
[2] |
COUPLING, BREAK AWAY
|
CAS
|
| 8A. |
291354A1
|
[2] |
DUST CAP
|
CAS
Not Illustrated
|
| 9. |
277635A1
|
[1] |
HOSE
|
CAS
ASSY., 1080 mm
|
| 10. |
277630A1
|
[1] |
HOSE
|
CAS
ASSY., 1320 mm See Figures: 2-14 and 24
|
| 11. |
277624A1
|
[1] |
HOSE
|
CAS
ASSY., 750 mm See Figure: 2-28
|
| 12. |
277623A1
|
[1] |
HOSE
|
CAS
ASSY., 520 mm See Figures: 2-28 and 40
|
| 13. |
277628A1
|
[4] |
HOSE
|
CAS
ASSY., 1950 mm See Figure: 2-30
|
| 14. |
614-8030
|
[1] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43128
|
| 16. |
895-11008
|
[1] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
CAS
Superseded by part number: 86624184
|
| 17. |
832-10408
|
[1] |
NUT,M8 x 1.25, Cl 8.8
|
CAS
Superseded by part number: 86528579
|
| 18. |
277632A1
|
[1] |
HOSE
|
CAS
ASSY., 1260 mm See Figure: 2-24
|
| 19. |
277626A1
|
[2] |
HOSE
|
CAS
ASSY., 2000 mm See Figure: 2-68
|
| 20. |
277614A1
|
[2] |
HOSE
|
CAS
ASSY., 1180 mm
|
| 21. |
277171A1
|
[2] |
ADAPTER
|
CAS
|
| 22. |
277629A1
|
[1] |
VALVE
|
CAS
priority
|
| 23. |
814-8070
|
[3] |
BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8
|
CAS
Superseded by part number: 7120024
|
| 26. |
315415A1
|
[4] |
SOLENOID
|
CAS
|
