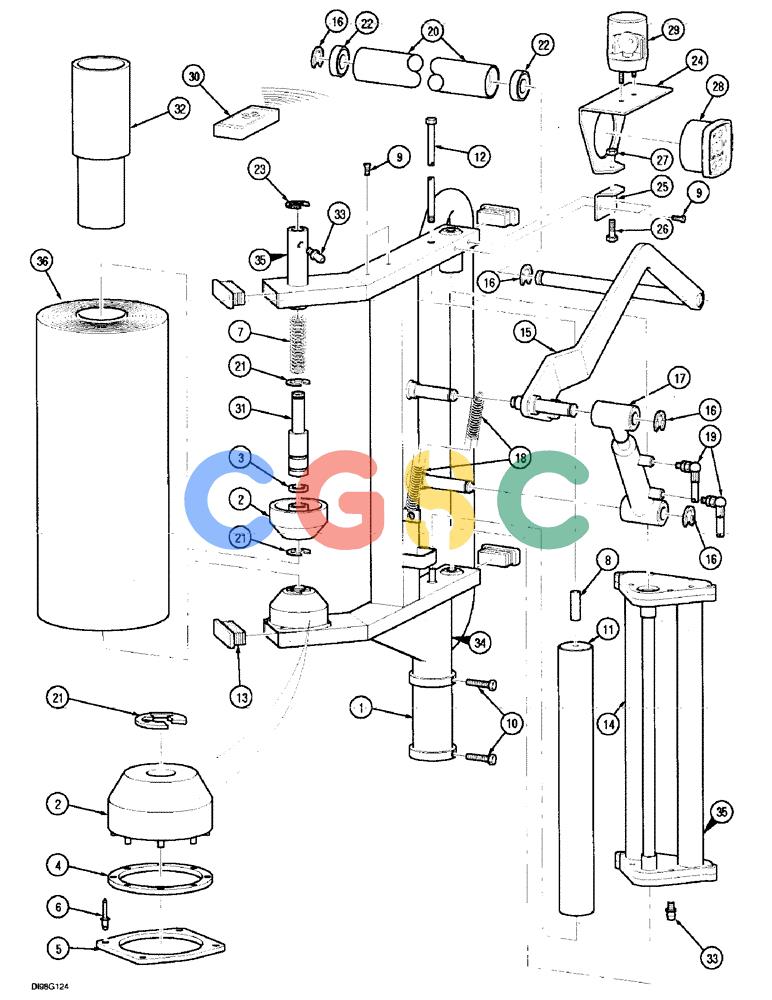

| 1. |
276613A1
|
[1] |
FRAME
|
CAS
ASSY., ( - DBG0000502)
|
| . . |
NSS
|
[2] |
NOT SOLD SEPARAT
|
CON
CONE ASSY., ( - DBG0000521) order: 2 and 3
|
| 1. |
311392A1
|
[1] |
FRAME
|
CAS
ASSY., (DBG0000503 -)
|
| 2. |
311386A1
|
[2] |
CONE
|
CAS
(DBG0000522 -)
|
| 3. |
311390A1
|
[1-2] |
WASHER
|
CAS
SPACER, (DBG0000522 -)
|
| 4. |
311388A1
|
[1] |
DISC
|
CAS
friction (DBG0000522 -)
|
| 5. |
311387A1
|
[1] |
PLATE
|
CAS
friction (DBG0000522 -)
|
| 6. |
151-571
|
[4] |
RIVET,Pop, 5/16" x 5/8"
|
CAS
(DBG0000522 -)
|
| 7. |
276631A1
|
[1] |
SPRING
|
CAS
|
| 8. |
276628A1
|
[1] |
SPACER
|
CAS
|
| 9. |
840-1612
|
[4] |
SCREW,Pan, M6 x 12mm, Cl 4.8
|
CAS
Superseded by part number: 86511828
|
| 10. |
614-12030
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 11. |
276626A1
|
[1] |
ROLLER
|
CAS
|
| 12. |
276624A1
|
[1] |
ROD
|
CAS
|
| 13. |
276617A1
|
[4] |
PLUG
|
CAS
80 x 40 mm
|
| 14. |
308389A1
|
[1] |
TENSIONER
|
CAS
ROLL ASSY., 55%
|
| 15. |
276620A1
|
[1] |
ARM
|
CAS
ASSY., ( - DBG0000502)
|
| 15. |
311394A1
|
[1] |
ARM
|
CAS
ASSY., (DBG0000503 -)
|
| 16. |
800-1120
|
[5] |
SNAP RING,M20, Ext
|
CAS
Retaining Superseded by part number: 370024
|
| 17. |
276622A1
|
[1] |
CYLINDER
|
CAS
( - DBG0000502)
|
| 17. |
311396A1
|
[1] |
CYLINDER
|
CAS
(DBG0000503 -)
|
| . . |
276623A1
|
[1] |
SEAL PACKAGE
|
CAS
KIT repair, for: 276622A1, 311396A1 Not Illustrated
|
| 18. |
276627A1
|
[1] |
COIL SPRING
|
IH
|
| 19. |
277626A1
|
[2] |
HOSE
|
CAS
ASSY., 2000 mm
|
| 20. |
311397A1
|
[1] |
TUBE,20.5 mm ID, 48.3 mm OD, 300 mm Length
|
CAS
ROLLER ASSY; All, Not Europe
|
| 21. |
800-1130
|
[3] |
SNAP RING,M30, Ext
|
CAS
Retaining Superseded by part number: 370003
|
| 22. |
3164946R91
|
[2] |
BALL BEARING
|
IH
ball If Used Superseded by part number: 86629499
|
| 23. |
800-1122
|
[1] |
SNAP RING,M22, Ext
|
CAS
RING retaining, 22 mm Superseded by part number:
|
| 24. |
277680A1
|
[1] |
PLATE
|
CAS
SUPPORT
|
| 25. |
277681A1
|
[1] |
BRACKET
|
CAS
|
| 26. |
614-10025
|
[1] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 11106231
|
| 27. |
832-10410
|
[1] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 190003888452
|
| 28. |
277682A1
|
[1] |
CONTROL
|
CAS
MONITOR ASSY.
|
| 29. |
277684A1
|
[1] |
BEACON ROTATING
|
CAS
|
| 30. |
277683A1
|
[1] |
CONTROL
|
CAS
sender
|
| 31. |
276630A1
|
[1] |
ROD
|
CAS
|
| 32. |
284007A1
|
[1] |
ADAPTER
|
CAS
Use With Film Width: 500 mm
|
| 33. |
219-14
|
[1] |
LUBE NIPPLE,1/4" NPTF
|
CAS
|
| 34. |
REF
|
[1] |
INSTRUCTION
|
NH
DECAL, See Figure: 2-92
|
| 36. |
277658A1
|
[1] |
PLASTIC
|
CAS
roll, 750 mm
|
