凯斯零件查询(8630) - CASE IH BALE WRAPPER (1/95-12/97) (2-78) - CHASSIS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
592 次

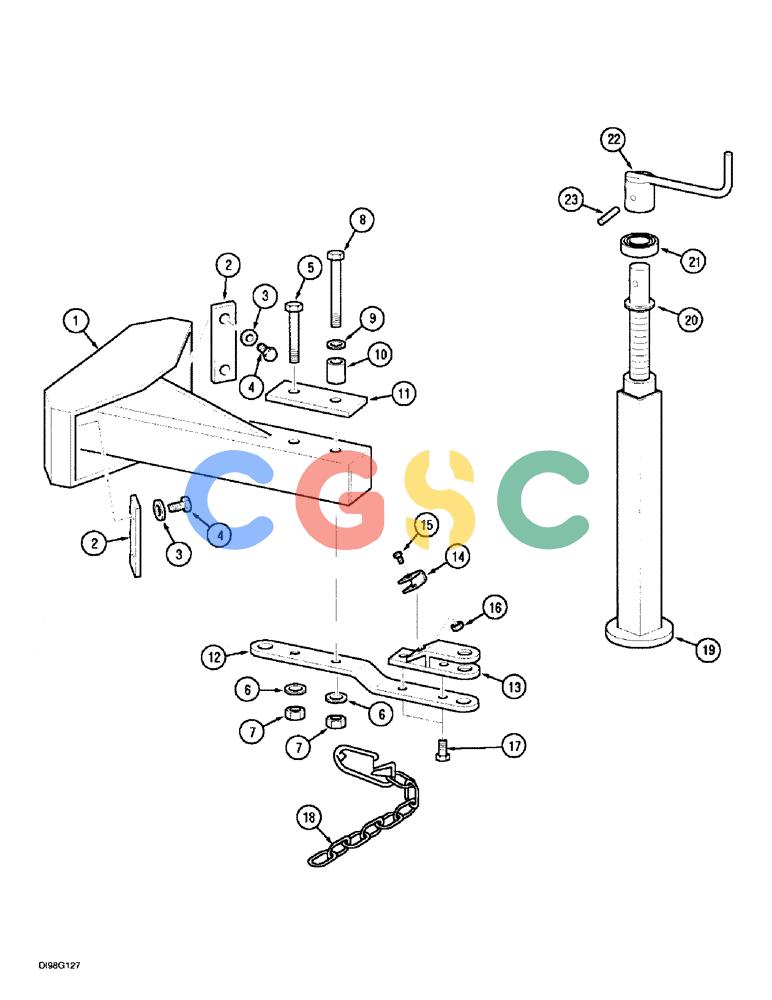

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
276397A1
|
[1] |
TRAILER HITCH
|
CAS
BAR towing
|
| 2. |
276398A1
|
[2] |
PLATE
|
CAS
|
| 3. |
895-11016
|
[4] |
WASHER,17.5mm ID x 30mm OD x 3mm Thk
|
CAS
Superseded by part number: 80299
|
| 4. |
614-16050
|
[4] |
BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 120090
|
| 5. |
814-20170
|
[1] |
BOLT,Hex, M20 x 2.5 x 170mm, Cl 8.8
|
CAS
BOLT, M20 x 170; 8.8 Superseded by part number: 84444625
|
| 6. |
892-11020
|
[2] |
LOCK WASHER,M20
|
IH
Superseded by part number: 9847025
|
| 7. |
829-1420
|
[2] |
NUT,M20, Cl 10
|
CAS
Superseded by part number: 9847024
|
| 8. |
814-20200
|
[1] |
BOLT,Hex, M20 x 2.5 x 200mm, Cl 8.8
|
CAS
M20 x 200; 8.8 Superseded by part number: 16440421
|
| 9. |
282134A1
|
[1] |
SPECIAL WASHER
|
CAS
|
| 10. |
291347A1
|
[1] |
SPACER
|
CAS
|
| 11. |
276402A1
|
[1] |
PLATE
|
CAS
|
| 12. |
276401A1
|
[1] |
BAR
|
CAS
|
| 13. |
276556A1
|
[1] |
PLATE
|
CAS
clevis
|
| 14. |
1279163C1
|
[1] |
CLEVIS COUPLING
|
IH
|
| 15. |
814-16100
|
[1] |
BOLT,Hex, M16 x 2 x 100mm, Cl 8.8
|
CAS
Superseded by part number: 374889
|
| 16. |
832-10416
|
[1] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 412066
|
| 18. |
700705598
|
[1] |
CHAIN (CE)
|
CAS
|
| . . |
276389A1
|
[1] |
JACK
|
CAS
ASSY. consists of: 19 - 23
|
| 19. |
276395A1
|
[1] |
TUBE
|
CAS
|
| 20. |
276393A1
|
[1] |
JACK SCREW
|
CAS
|
| 21. |
276391A1
|
[1] |
THRUST BEARING
|
CAS
thrust
|
| 22. |
276390A1
|
[1] |
HANDLE
|
CAS
|
| 23. |
838-4840
|
[1] |
LOCK PIN,M8 x 40, Slotted
|
CAS
|
