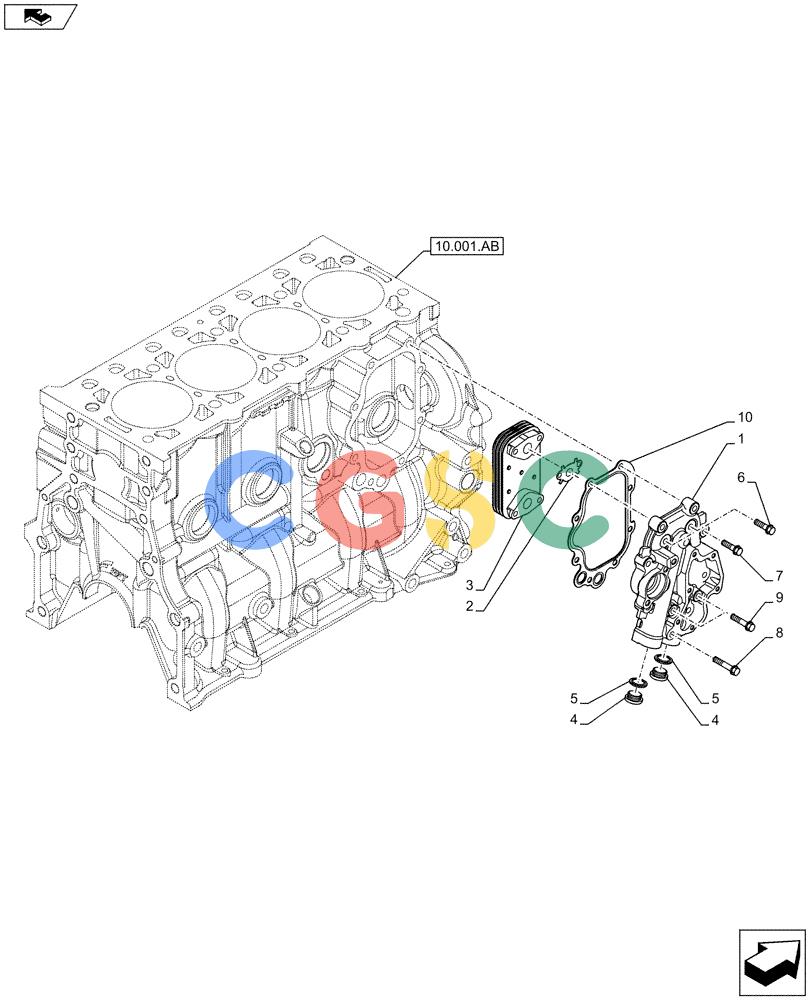

纽荷兰零件查询(F5HFL463A F001) - ENGINE 5801390425 - 84315306 (47374655) (10/13-) (10.408.AC) - ENGINE OIL, HEAT EXCHANGER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
548 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801508971 | [1] | HEAT EXCHANGER | TOR |
| 2. | 504077557 | [2] | GASKET | TOR |
| 3. | 504078695 | [1] | OIL COOLER | TOR |
| 4. | 10275011 | [2] | PLUG,M22 x 1.5 x 13 | JES |
| 5. | 87332142 | [2] | SEALING WASHER,23.5mm ID x 30mm OD x 1.5mm Thk | JES |
| 6. | 16673635 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TORM8 x 20 Superseded by part number: 16978124 |
| 7. | 16673835 | [7] | BOLT,Hex, M8 x 30mm | TOR |
| 8. | 16586925 | [1] | BOLT,M8 x 50mm | TOR |
| 9. | 16586625 | [2] | BOLT,M8 x 35mm | TOR |
| 10. | 504381582 | [1] | GASKET | TOR |
