纽荷兰零件查询(F5HFL463A F001) - ENGINE 5801390425 - 84315306 (47374655) (10/13-) (10.408.AL) - HEAT EXCHANGER, LINES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
149 次

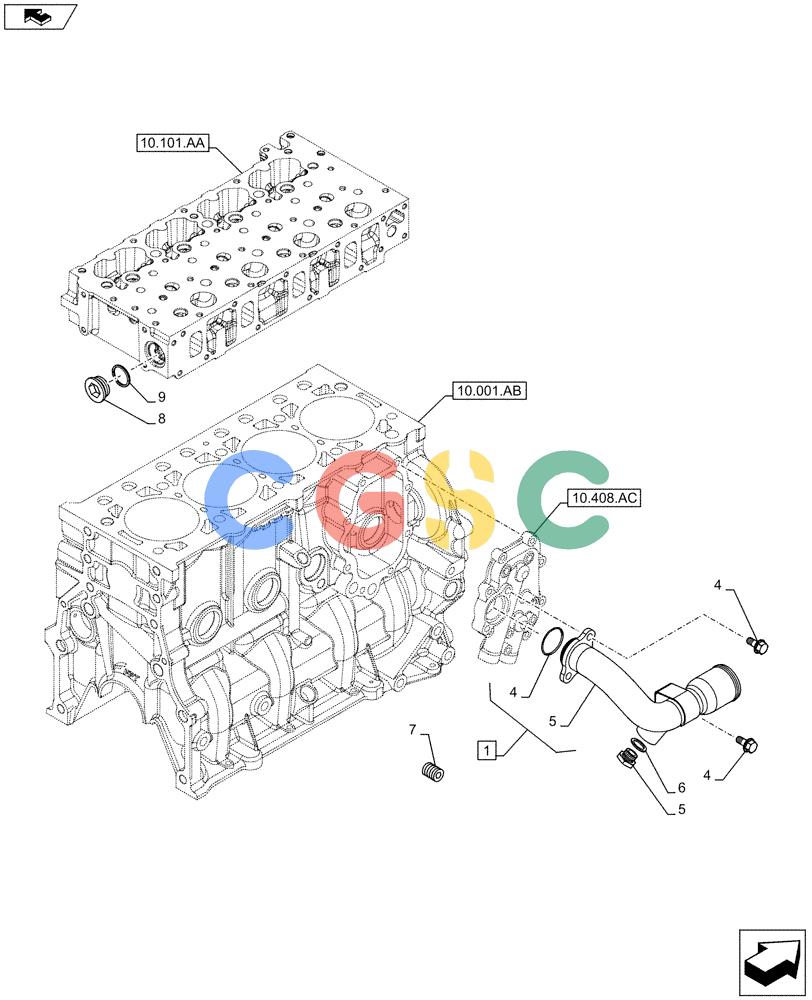

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504182961 | [1] | PIPE | TORASSY, Incl 2, 3 |
| 2. | 17289081 | [1] | O-RING,31.34mm ID x 3.53mm | TOR |
| 3. | NSS | [1] | NOT SERVICED SEPARATELY | CONPipe, Incl in 1 |
| 4. | 2854311 | [3] | SCREW | TOR |
| 5. | 10300714 | [1] | PLUG,M16 x 1.5 x 14 | TTF |
| 6. | 4858609 | [1] | O-RING | TTF |
| 7. | 16994611 | [1] | PLUG | TOR |
| 8. | 99469380 | [1] | GASKET,33mm ID x 45mm OD x 2.8mm Thk | TOR |
| 9. | 16993711 | [1] | PLUG,M35 x 1.5 | TOR |
