沃尔沃零件查询A40 Smoke limiter, forwardSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
160 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |

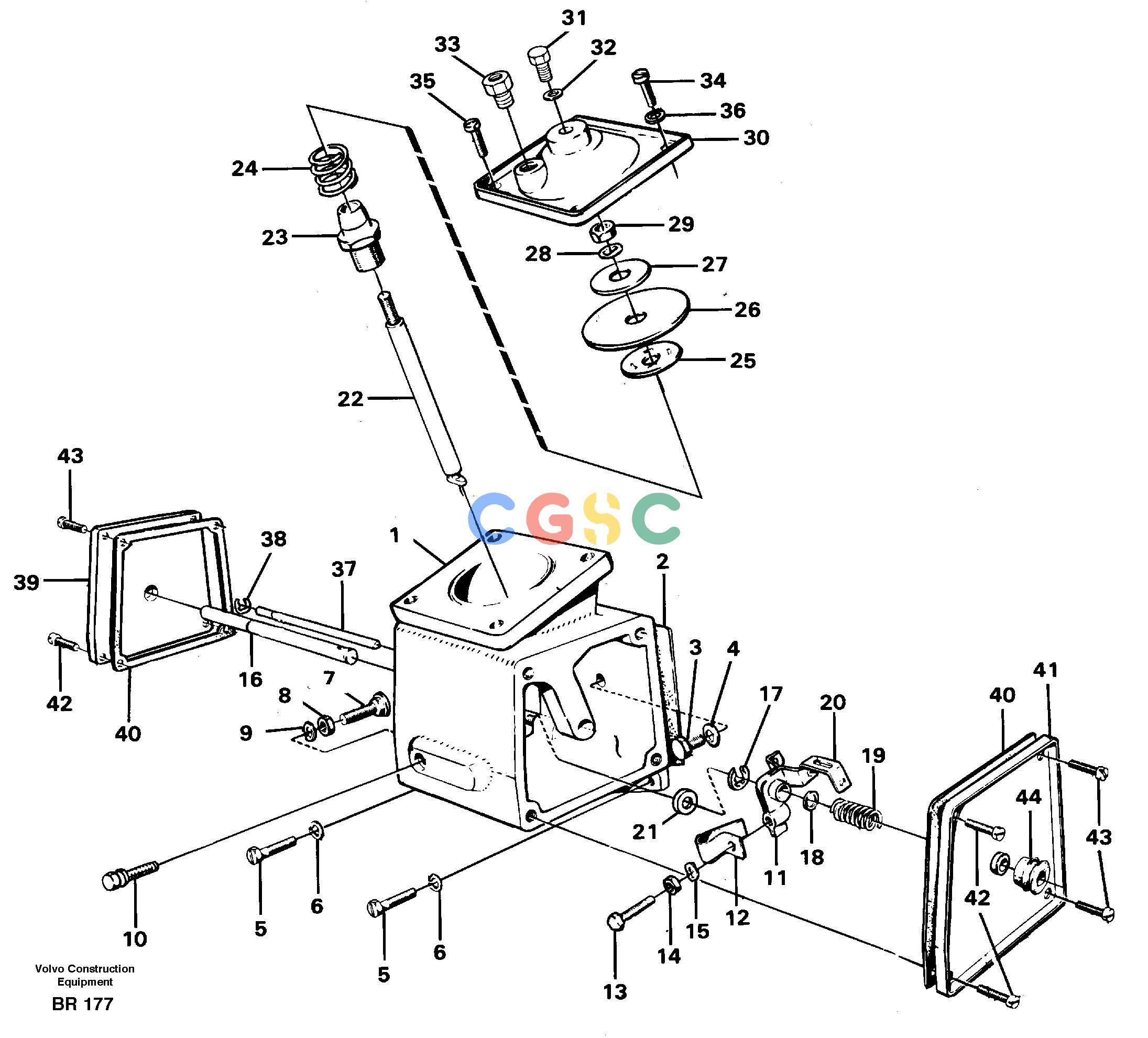

VOE1699629
|
|
Smoke Limiter
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
VOE1698172
|
[1] |
Gasket
|
|
| 3. |
VOE849518
|
[1] |
Screw
|
|
| 4. |
VOE241794
|
[1] |
Washer
|
|
| 5. |
VOE6638096
|
[2] |
Screw
|
|
| 6. |
VOE13949607
|
[2] |
Washer
|
|
| 7. |
VOE863823
|
[1] |
Screw
|
|
| 8. |
VOE940197
|
[1] |
Hexagon nut
|
|
| 9. |
VOE13949607
|
[1] |
Washer
|
|
| 10. |
VOE243074
|
[1] |
Screw
|
|
| 11. |
VOE241782
|
[1] |
Hand lever
|
|
| 12. |
VOE7243260
|
[1] |
Leaf spring
|
|
| 13. |
VOE243827
|
[1] |
Screw
|
|
| 14. |
VOE940197
|
[1] |
Hexagon nut
|
|
| 15. |
VOE13949607
|
[1] |
Washer
|
|
| 16. |
VOE241783
|
[1] |
Shaft
|
|
| 17. |
VOE13951669
|
[1] |
Retaining ring
|
|
| 18. |
VOE233816
|
[1] |
Washer
|
|
| 19. |
VOE7241787
|
[1] |
Spring
|
|
| 20. |
VOE7241780
|
[1] |
Yoke
|
|
| 21. |
VOE6210700
|
[1] |
Spacer ring
|
|
| 22. |
|
[1] |
Control rod
|
|
| 23. |
VOE244740
|
[1] |
Bushing
|
|
| 24. |
|
[1] |
Spring
|
|
| 25. |
VOE1698890
|
[1] |
Washer
|
|
| 26. |
|
[1] |
Diaphragm
|
|
| 27. |
|
[1] |
Washer
|
|
| 28. |
|
[1] |
Spring washer
|
|
| 29. |
|
[1] |
Nut
|
|
| 30. |
|
[1] |
Cover
|
|
| 31. |
|
[1] |
Screw
|
|
| 32. |
VOE7011991
|
[1] |
Gasket
|
|
| 33. |
|
[1] |
Bushing
|
|
| 34. |
|
[2] |
Screw
|
|
| 35. |
VOE244675
|
[2] |
Screw
|
|
| 36. |
VOE13949607
|
[4] |
Washer
|
|
| 37. |
VOE7241788
|
[1] |
Pin
|
|
| 38. |
VOE951667
|
[0002] |
Retaining ring
|
|
| 39. |
VOE7241789
|
[1] |
Cover
|
|
| 40. |
VOE1698171
|
[2] |
Gasket
|
|
| 41. |
VOE241791
|
[1] |
Cover
|
|
| 42. |
VOE847452
|
[4] |
Screw
|
|
| 43. |
VOE1699630
|
[4] |
Screw
|
|
| 44. |
VOE241792
|
[1] |
Bellows
|
|
