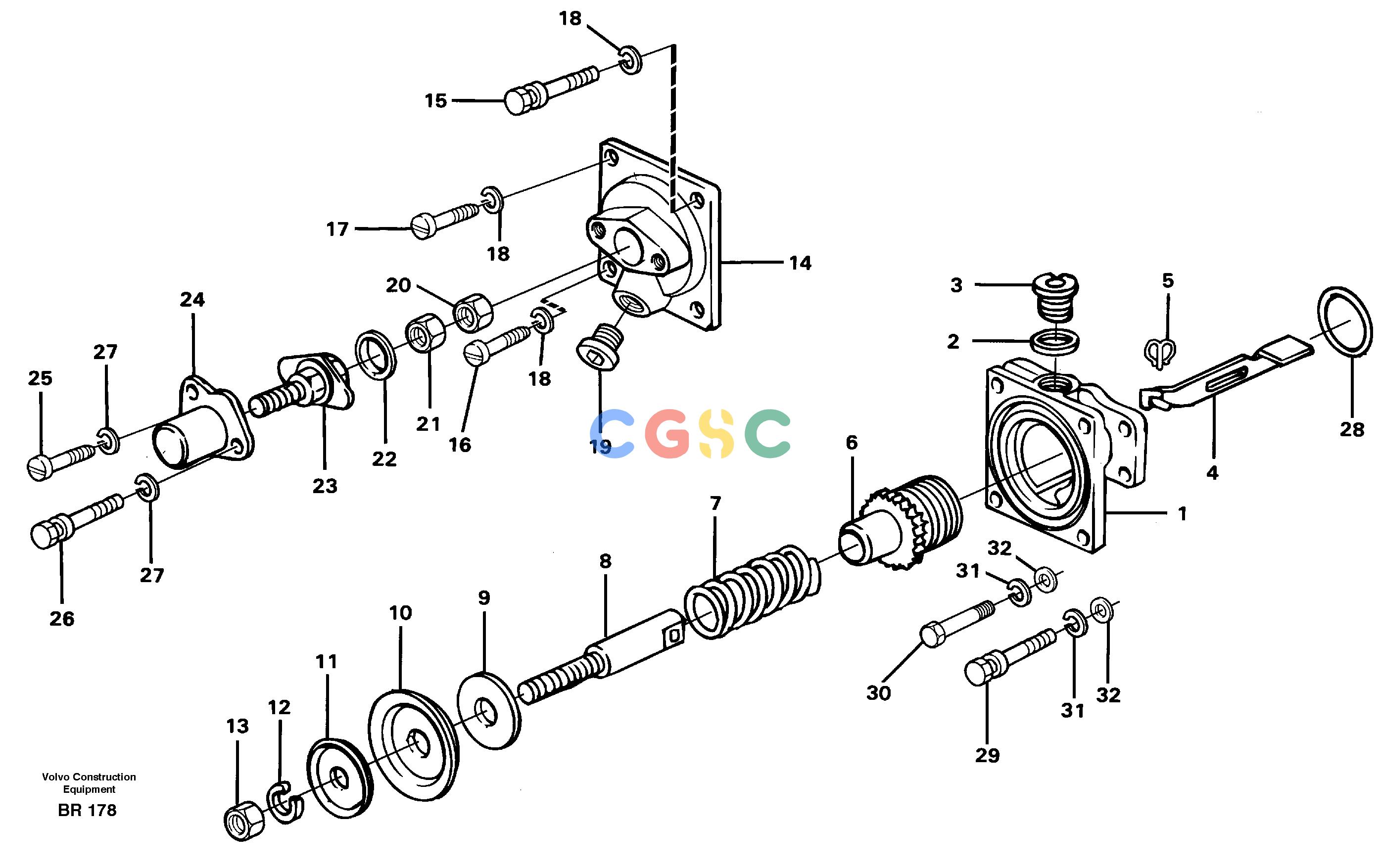

沃尔沃零件查询A40 Smoke limiter, rearSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11701081
|
[1] |
Smoke Limiter
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
|
[1] |
Seal
|
|
| 3. |
VOE244598
|
[1] |
Plug
|
|
| 4. |
|
[1] |
Arm
|
|
| 5. |
VOE1698742
|
[1] |
Lock Pin
|
|
| 6. |
VOE1698748
|
[1] |
Bushing
|
|
| 7. |
VOE6211919
|
[1] |
Spring
|
|
| 8. |
|
[1] |
Control rod
|
|
| 9. |
VOE1698890
|
[1] |
Washer
|
|
| 10. |
|
[1] |
Diaphragm
|
|
| 11. |
VOE1698890
|
[1] |
Washer
|
|
| 12. |
|
[1] |
Spring washer
|
|
| 13. |
VOE3094399
|
[1] |
Nut
|
|
| 14. |
VOE3094466
|
[1] |
Cover
|
|
| 15. |
VOE848745
|
[1] |
Screw
|
|
| 16. |
VOE11994151
|
[1] |
Screw
|
|
| 17. |
VOE244675
|
[2] |
Screw
|
|
| 18. |
VOE13949607
|
[4] |
Washer
|
|
| 19. |
VOE3097348
|
[1] |
Bushing
|
|
| 20. |
|
[1] |
Nut
|
|
| 21. |
VOE3094399
|
[1] |
Nut
|
|
| 22. |
VOE240422
|
[1] |
Sealing ring
|
|
| 23. |
VOE244676
|
[1] |
Stop, Shoulder
|
|
| 24. |
|
[1] |
Cover
|
|
| 25. |
VOE11994151
|
[1] |
Screw
|
|
| 26. |
VOE848745
|
[1] |
Screw
|
|
| 27. |
VOE13949607
|
[2] |
Washer
|
|
| 28. |
VOE244574
|
[1] |
O-ring
|
|
| 29. |
VOE11701084
|
[2] |
Screw
|
|
| 30. |
VOE11998418
|
[2] |
Screw
|
|
| 31. |
VOE13949607
|
[4] |
Washer
|
|
| 32. |
VOE955892
|
[4] |
Plain washer
|
|
