沃尔沃零件查询A40 InjectorSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
524 次

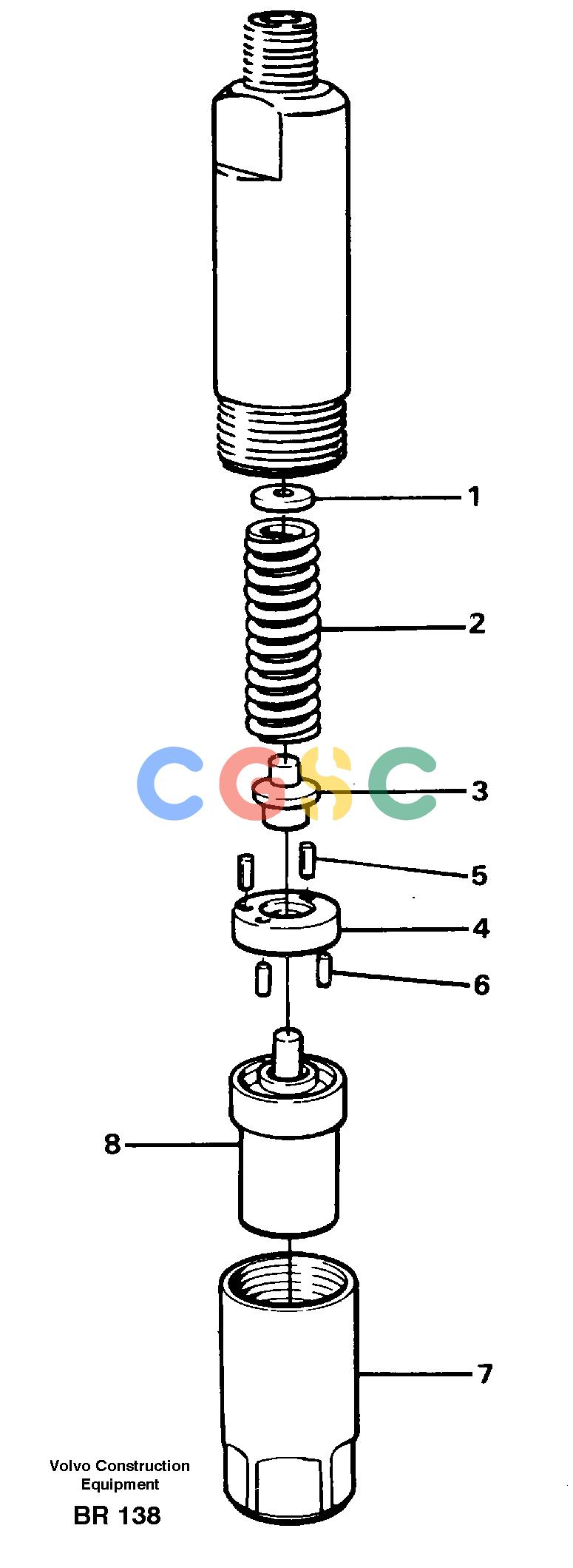

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE478606
|
[1] |
Injector
|
|
| |
VOE478607
|
[1] |
Nozzle retainer
|
|
| 1. |
VOE11700654
|
[REQ] |
Shim
|
THICK = 1.00
|
| |
VOE11701280
|
[REQ] |
Shim
|
THICK = 1.04
|
| |
VOE3094407
|
[REQ] |
Shim
|
THICK = 1.08
|
| |
VOE11701085
|
[REQ] |
Shim
|
THICK = 1.12
|
| |
VOE3094408
|
[REQ] |
Shim
|
THICK = 1.16
|
| |
VOE846963
|
[REQ] |
Adjusting washer
|
THICK = 1.18
|
| |
VOE11701282
|
[REQ] |
Shim
|
THICK = 1.20
|
| |
VOE11700776
|
[REQ] |
Shim
|
THICK = 1.24
|
| |
VOE11701049
|
[REQ] |
Shim
|
THICK = 1.28
|
| |
VOE11701106
|
[REQ] |
Shim
|
THICK = 1.32
|
| |
VOE846966
|
[REQ] |
Adjusting washer
|
THICK = 1.38
|
| |
VOE244800
|
[REQ] |
Shim
|
THICK = 1.40
|
| |
VOE11700690
|
[REQ] |
Shim
|
THICK = 1.45
|
| |
VOE11701281
|
[REQ] |
Shim
|
THICK = 1.48
|
| |
VOE11701783
|
[REQ] |
Shim
|
THICK = 1.52
|
| |
VOE11700728
|
[REQ] |
Shim
|
THICK = 1.54
|
| |
VOE11700653
|
[REQ] |
Shim
|
THICK = 1.56
|
| |
VOE11700835
|
[REQ] |
Shim
|
THICK = 1.60
|
| |
VOE11701162
|
[REQ] |
Shim
|
THICK = 1.64
|
| |
VOE11700126
|
[REQ] |
Shim
|
THICK = 1.68
|
| |
VOE3094477
|
[REQ] |
Shim
|
THICK = 1.72
|
| |
VOE6213408
|
[REQ] |
Shim
|
THICK = 1.76
|
| |
VOE11701050
|
[REQ] |
Shim
|
THICK = 1.80
|
| |
VOE244808
|
[REQ] |
Shim
|
THICK = 1.84
|
| |
VOE6213409
|
[REQ] |
Shim
|
THICK = 1.88
|
| |
VOE244795
|
[REQ] |
Shim
|
THICK = 1.92
|
| |
VOE3094467
|
[REQ] |
Shim
|
THICK = 1.96
|
| 2. |
VOE244820
|
[1] |
Compression spring
|
|
| 3. |
VOE3094597
|
[1] |
Push rod
|
|
| 4. |
VOE1698513
|
[1] |
Washer
|
|
| 5. |
VOE844339
|
[2] |
Pin
|
|
| 6. |
VOE244447
|
[2] |
Pin
|
|
| 7. |
VOE3092030
|
[1] |
Nut
|
|
| 8. |
VOE478609
|
[1] |
Nozzle
|
|
