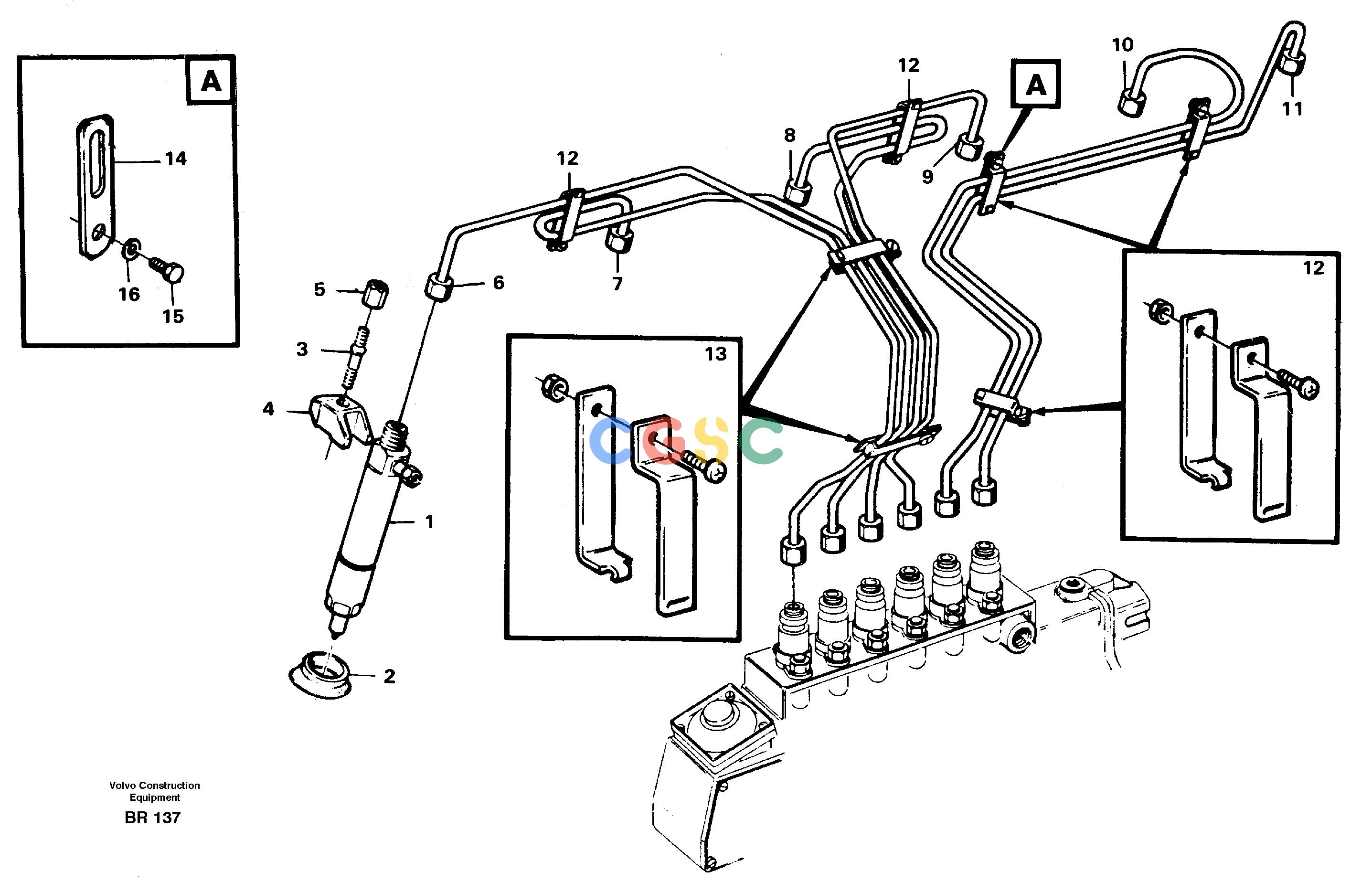

沃尔沃零件查询A40 Delivery pipes-injectorsSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[6] |
Injector
|
|
| 2. |
VOE469455
|
[6] |
Sealing ring
|
|
| 3. |
VOE470560
|
[6] |
Stud
|
|
| 4. |
VOE469797
|
[6] |
Nozzle retainer
|
|
| 5. |
VOE13971095
|
[6] |
Flange nut
|
|
| 6. |
VOE8193571
|
[1] |
Delivery pipe
|
|
| 7. |
VOE8193572
|
[1] |
Delivery pipe
|
|
| 8. |
VOE8193573
|
[1] |
Delivery pipe
|
|
| 9. |
VOE8193574
|
[1] |
Delivery pipe
|
|
| 10. |
VOE8193575
|
[1] |
Delivery pipe
|
|
| 11. |
VOE8193576
|
[1] |
Delivery pipe
|
|
| 12. |
VOE8194351
|
[3] |
Clamp
|
|
| |
VOE8194327
|
[2] |
Clamp
|
|
| 13. |
VOE8194353
|
[2] |
Clamp
|
|
| 14. |
VOE422323
|
[1] |
Bracket
|
|
| 15. |
VOE940100
|
[1] |
Hexagon screw
|
|
| 16. |
VOE13941906
|
[1] |
Washer
|
|
