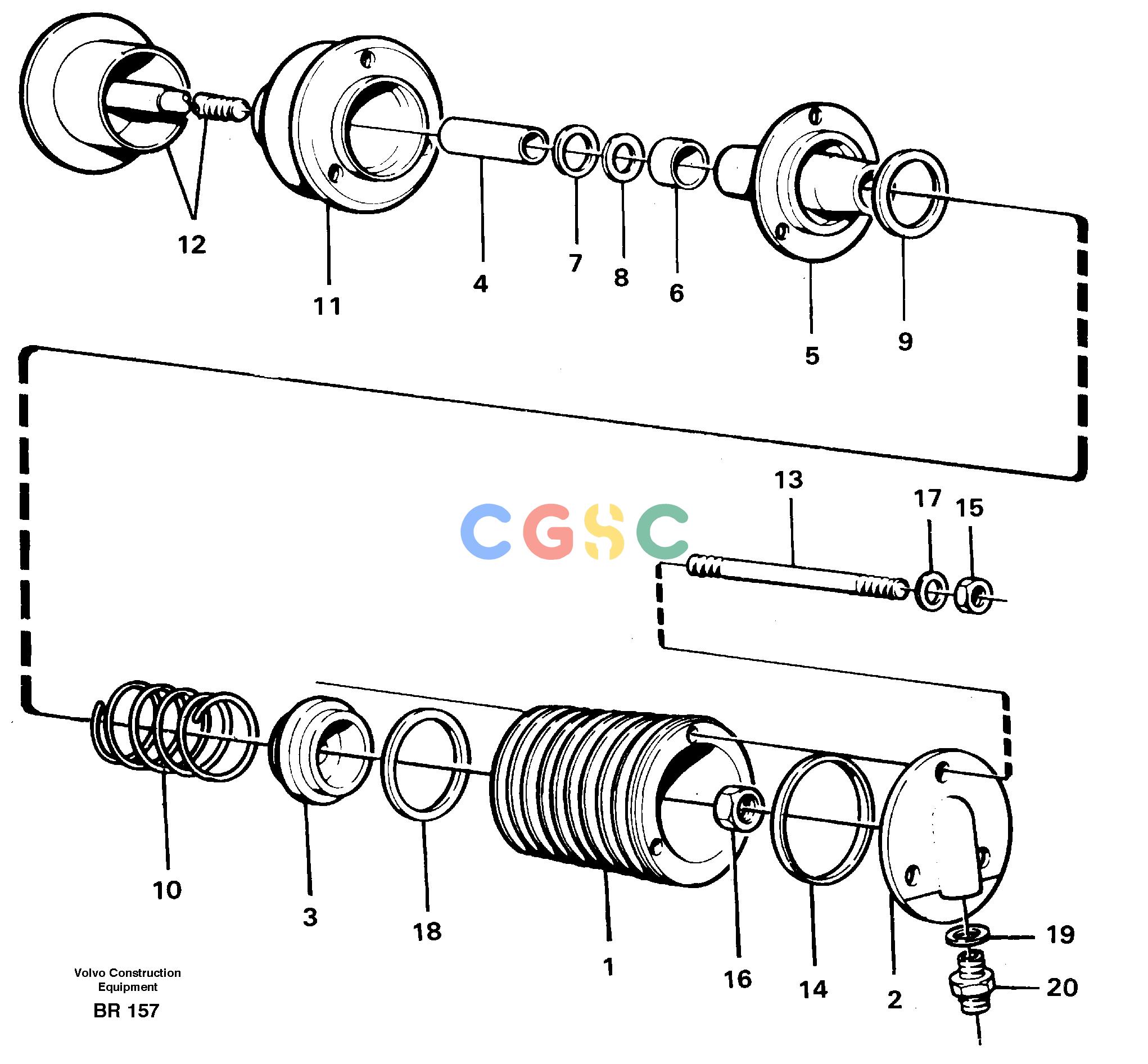

沃尔沃零件查询A40 Exhaust pressure regulatorSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE478916
|
[1] |
Exhaust pressure governor
|
|
| 1. |
VOE478915
|
[1] |
Cylinder
|
|
| 2. |
VOE467275
|
[1] |
Cylinder head
|
|
| 3. |
VOE470422
|
[1] |
Piston
|
|
| 4. |
VOE467277
|
[1] |
Piston rod
|
|
| 5. |
VOE467278
|
[1] |
Bearing housing
|
|
| 6. |
VOE467280
|
[2] |
Bushing
|
|
| 7. |
VOE467545
|
[1] |
Stop ring
|
|
| 8. |
VOE467304
|
[1] |
Scraper
|
|
| 9. |
VOE467281
|
[1] |
Washer
|
|
| 10. |
VOE467282
|
[1] |
Return spring
|
|
| 11. |
VOE467880
|
[1] |
Shutter housing cover
|
|
| 12. |
VOE1545016
|
[1] |
Shutter
|
|
| 13. |
VOE945474
|
[3] |
Stud
|
|
| 14. |
VOE13945512
|
[1] |
O-ring
|
|
| 15. |
VOE955825
|
[3] |
Hexagon nut
|
|
| 16. |
VOE945467
|
[1] |
Lock nut
|
|
| 17. |
VOE955893
|
[3] |
Plain washer
|
|
| 18. |
VOE478712
|
[1] |
Sealing ring
|
|
| 19. |
VOE957173
|
[1] |
Gasket
|
|
| 20. |
VOE13945900
|
[1] |
Nipple
|
|
