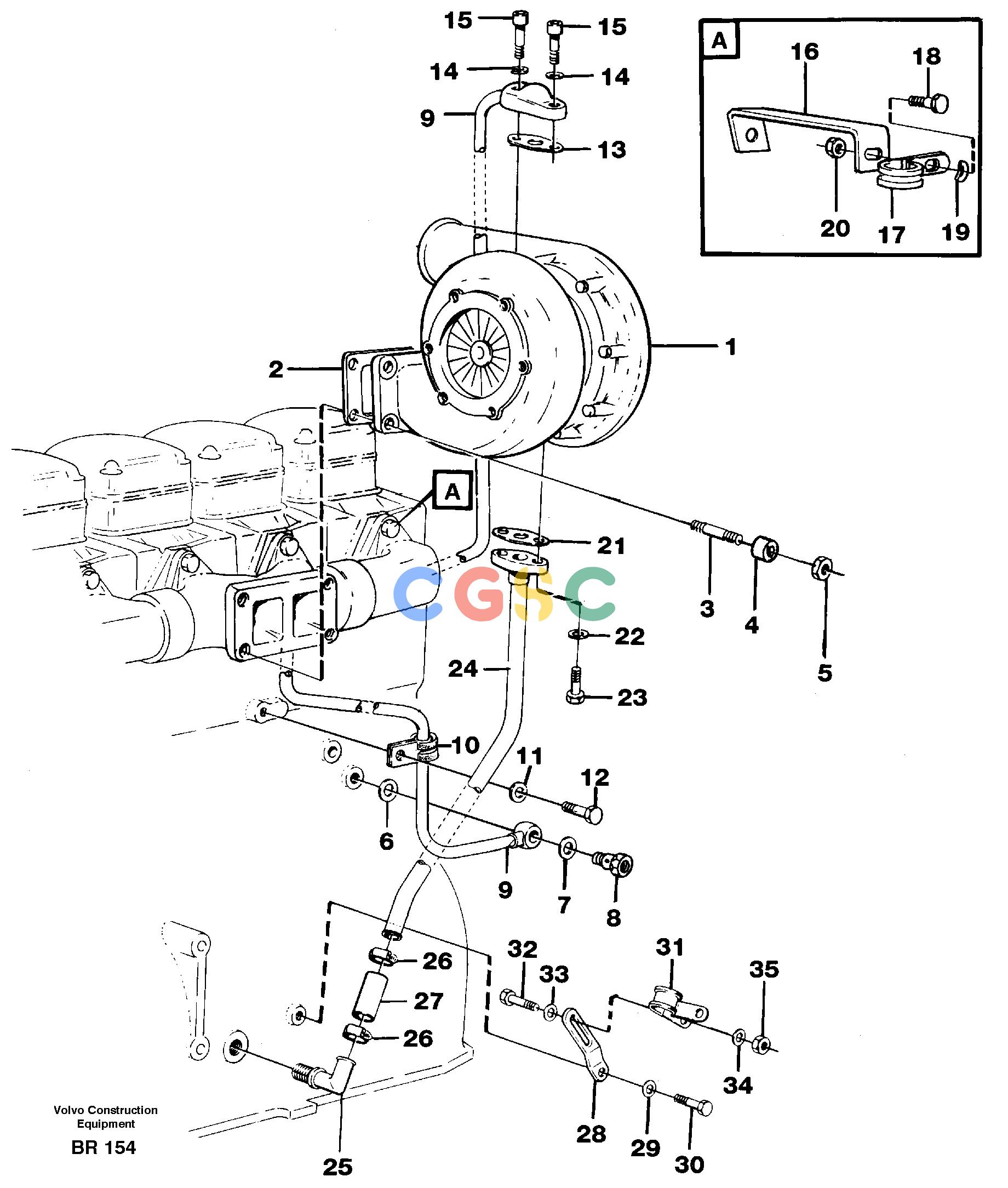

沃尔沃零件查询A40 Turbocharger with fitting partsSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
373 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11033744
|
[1] |
Turbocharger
|
|
| 2. |
VOE20784537
|
[1] |
Gasket
|
|
| 3. |
VOE478345
|
[4] |
Stud
|
|
| 4. |
VOE478344
|
[4] |
Spacer sleeve
|
|
| 5. |
VOE478346
|
[4] |
Nut
|
|
| 6. |
VOE942703
|
[1] |
Gasket
|
|
| 7. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 8. |
VOE479464
|
[1] |
Hollow screw
|
|
| 9. |
VOE11031507
|
[1] |
Oil feed pipe
|
|
| 10. |
VOE13946834
|
[1] |
Clamp
|
|
| 11. |
VOE13942336
|
[1] |
Spring washer
|
|
| 12. |
VOE956582
|
[1] |
Hex. socket screw
|
|
| 13. |
VOE420641
|
[1] |
Gasket
|
|
| 14. |
VOE13941907
|
[2] |
Washer
|
|
| 15. |
VOE940142
|
[1] |
Hexagon screw
|
|
| |
VOE955297
|
[1] |
Hexagon screw
|
|
| 16. |
VOE11031690
|
[1] |
Bracket
|
|
| 17. |
VOE190635
|
[1] |
Clamp
|
|
| 18. |
VOE940100
|
[1] |
Hexagon screw
|
|
| 19. |
VOE13941906
|
[1] |
Washer
|
|
| 20. |
VOE955825
|
[1] |
Hexagon nut
|
|
| 21. |
VOE420643
|
[1] |
Gasket
|
|
| 22. |
VOE13941907
|
[2] |
Washer
|
|
| 23. |
VOE13955295
|
[2] |
Screw
|
|
| 24. |
VOE11031826
|
[1] |
Oil return pipe
|
|
| 25. |
VOE479959
|
[1] |
Nipple
|
|
| 26. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 27. |
VOE466328
|
[1] |
Hose
|
|
| 28. |
VOE414692
|
[1] |
Bracket
|
|
| 29. |
VOE13942336
|
[1] |
Spring washer
|
|
| 30. |
VOE955534
|
[1] |
Hexagon screw
|
|
| 31. |
VOE952632
|
[1] |
Clamp
|
|
| 32. |
VOE950046
|
[1] |
Cross recessed screw
|
|
| 33. |
VOE955893
|
[1] |
Plain washer
|
|
| 34. |
VOE13941906
|
[1] |
Washer
|
|
| 35. |
VOE955825
|
[1] |
Hexagon nut
|
|
