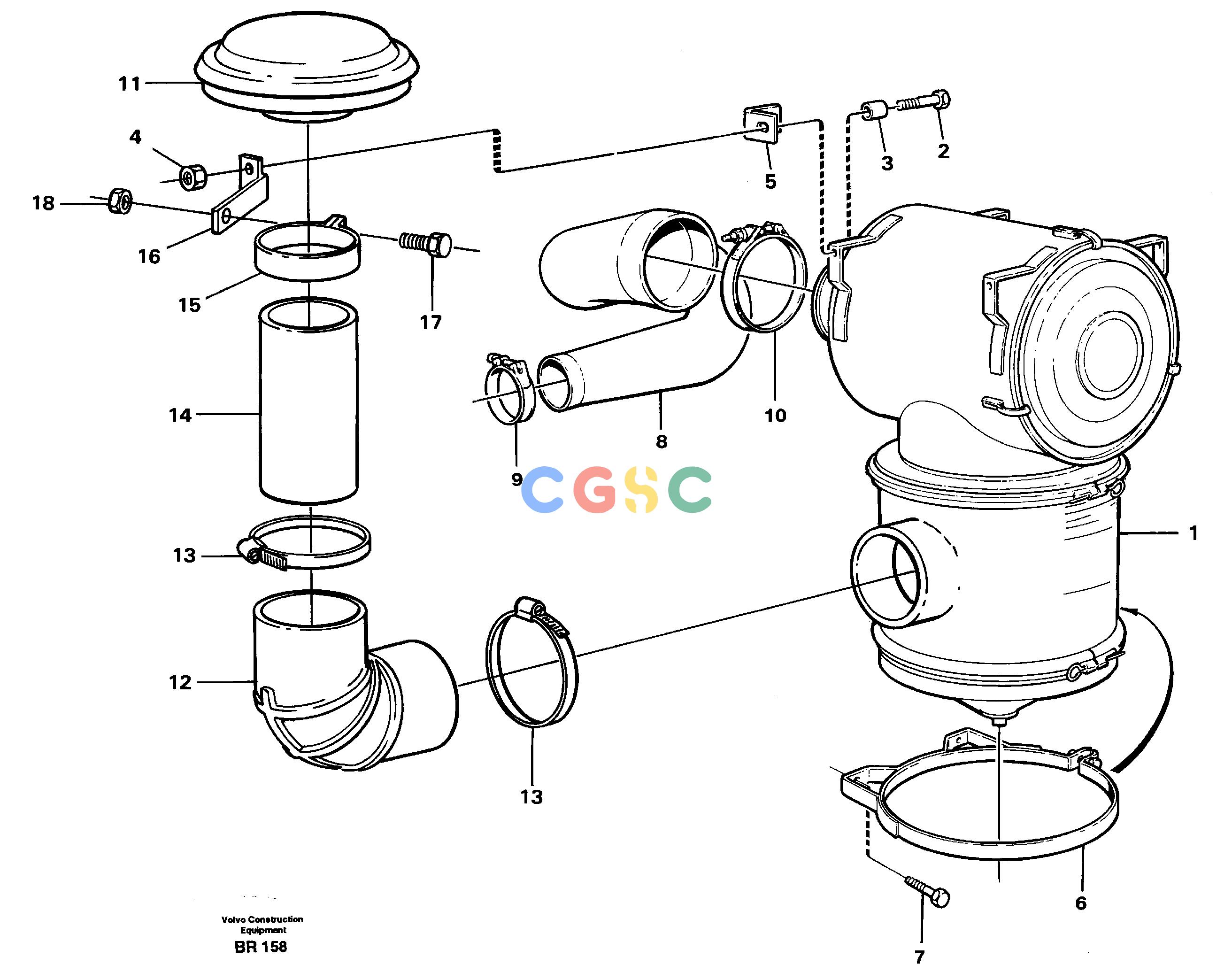

沃尔沃零件查询A40 Air filter with fitting partsSER NO 1201-, SER NO USA 60101- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
524 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Air cleaner
|
|
| 2. |
VOE13965220
|
[0003] |
Screw
|
M10X45
|
| |
VOE60113098
|
[1] |
Flange screw
|
M10X50
|
| 3. |
VOE4943026
|
[3] |
Spacer sleeve
|
|
| 4. |
VOE13971098
|
[4] |
Flange nut
|
|
| 5. |
VOE4943337
|
[1] |
Anchorage
|
|
| 6. |
VOE4881176
|
[1] |
Tensioning band
|
|
| 7. |
VOE946441
|
[2] |
Flange screw
|
|
| 8. |
VOE11112380
|
[1] |
Hose
|
|
| 9. |
VOE11062200
|
[1] |
Hose clamp
|
|
| 10. |
VOE11057469
|
[1] |
Clamp
|
|
| 11. |
VOE11110259
|
[1] |
Cover
|
|
| 12. |
VOE4881173
|
[1] |
Hose
|
|
| 13. |
VOE942921
|
[2] |
Hose clamp
|
|
| 14. |
VOE11052221
|
[1] |
Tube
|
|
| 15. |
VOE967906
|
[1] |
Clamp
|
|
| 16. |
VOE11052222
|
[1] |
Anchorage
|
|
| 17. |
VOE13946752
|
[1] |
Screw
|
|
| 18. |
VOE13971098
|
[1] |
Flange nut
|
|
