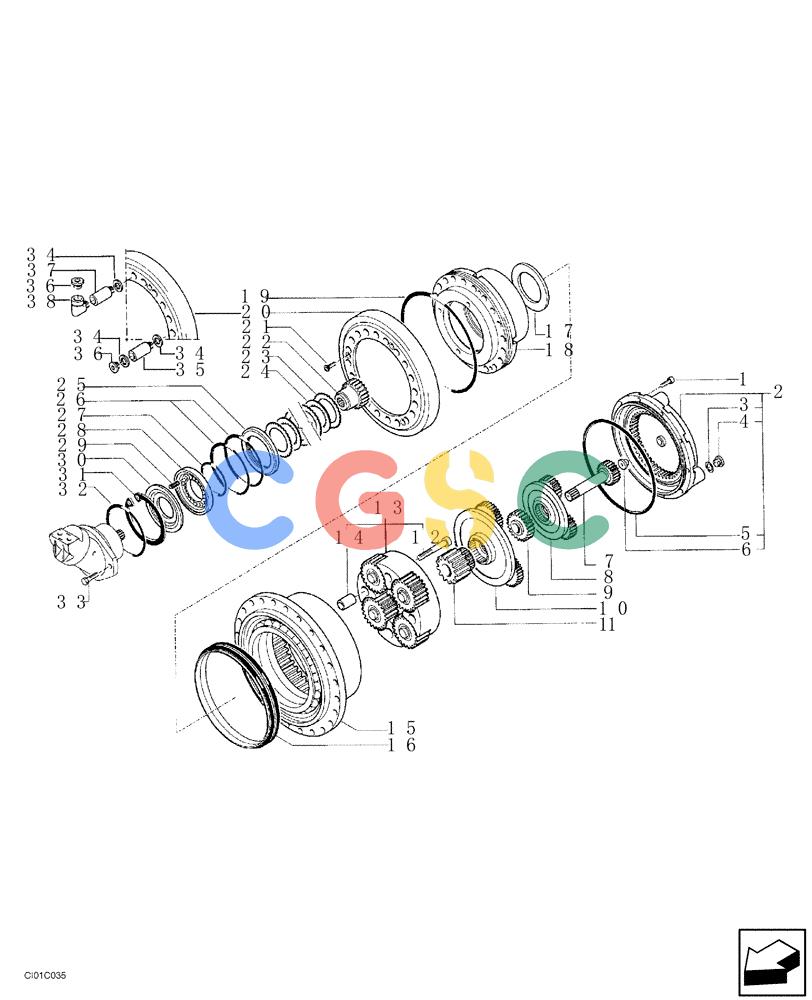

纽荷兰零件查询(CV1100) - VIBRATORY ROLLER (7/01-) (07-003-00[01]) - REDUCTION GEAR - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
689 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ND090946 | [1] | REDUCER | STA |
| 1. | ND101668 | [10] | BOLT | STA |
| 2. | ND101691 | [1] | COVER | STA |
| 3. | ND101660 | [2] | WASHER | STA |
| 4. | ND101645 | [2] | PLUG | STA Superseded by part number: A3282169 |
| 5. | ND101653 | [1] | O-RING | STA3,53 x 278,99 |
| 6. | ND101633 | [1] | PAD | STA |
| 7. | ND101619 | [1] | GEAR | STA |
| 8. | ND101687 | [1] | PINION CARRIER | STA |
| 9. | ND101621 | [1] | GEAR | STA |
| 10. | ND101686 | [1] | PINION CARRIER | STA |
| 11. | ND101622 | [1] | GEAR | STA |
| 12. | ND101667 | [4] | BOLT | STA |
| 13. | ND101685 | [1] | PINION CARRIER | STA |
| 14. | ND101629 | [4] | BUSHING | STA |
| 15. | ND101692 | [1] | BOX | STA |
| 16. | ND101646 | [1] | GASKET | STA |
| 17. | ND101630 | [1] | RING | STA |
| 18. | ND101614 | [1] | HUB | STA |
| 19. | ND101651 | [1] | O-RING | STA3,53 x 304,39 |
| 20. | ND101628 | [1] | COVER | STA |
| 21. | ND101665 | [3] | BOLT | STAM10 x 25 |
| 22. | ND101616 | [1] | SHAFT | STA |
| 23. | ND101643 | [6] | BRAKE DISC | STA |
| 24. | ND101641 | [5] | DISC | STA |
| 25. | ND101632 | [1] | RING | STA |
| 26. | ND101657 | [2] | O-RING | STA3,53 x 145,64 |
| 27. | ND101656 | [1] | O-RING | STA3,53 x 104,37 |
| 28. | ND101617 | [1] | PISTON | STA |
| 29. | ND101639 | [18] | SPRING | STA |
| 30. | ND101625 | [1] | SPRING CUP | STA |
| 31. | ND101663 | [1] | SNAP RING | STA |
| 32. | ND101654 | [1] | O-RING | STA |
| 33. | ND101648 | [2] | BOLT | STA |
| 35. | ND101637 | [2] | EXTENSION | STA |
| 36. | ND101644 | [4] | PLUG | STA |
| 37. | ND101638 | [1] | EXTENSION | STA |
| 38. | ND101635 | [1] | ELBOW | STA |
