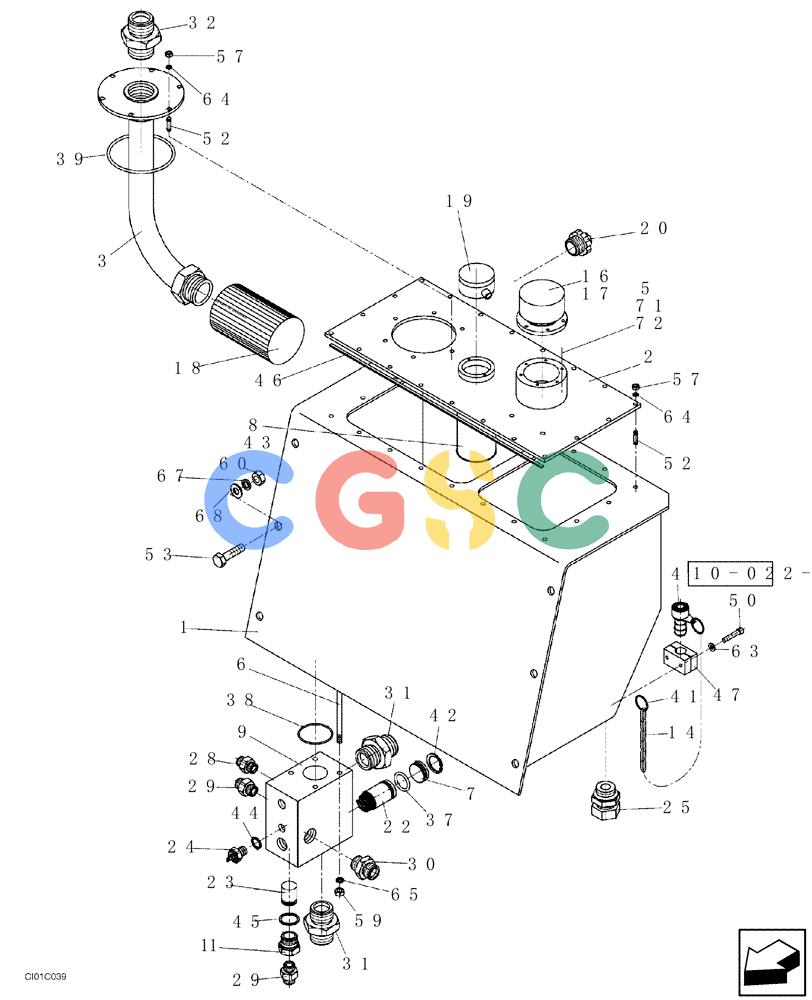

纽荷兰零件查询(CV1100) - VIBRATORY ROLLER (7/01-) (10-001-00[01]) - HYDRAULIC RESERVOIR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
660 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND103108 | [1] | TANK | STA |
| 2. | ND030904 | [1] | COVER | STA |
| 3. | ND030900 | [1] | FLEXIBLE HOSE | STA |
| 4. | ND098322 | [1] | HYD CONNECTOR | STA |
| 5. | ND054246 | [1] | BOLT | STA |
| 6. | ND103189 | [4] | ROD | STA |
| 7. | ND103190 | [1] | PLUG | STA |
| 8. | ND054261 | [1] | SLEEVE | STA |
| 9. | ND103126 | [1] | VALVE BLOCK (USED) | STA |
| 11. | ND052876 | [4] | HYD CONNECTOR | STA |
| 14. | ND103192 | [1] | LINK CHAIN | STA |
| 16. | ND065471 | [1] | CAP | STA |
| 17. | ND065473 | [1] | ADAPTER | STA |
| 18. | ND067790 | [1] | FILTER STRAINER | STA |
| 19. | ND064905 | [1] | LEVEL GAUGE | STA |
| 20. | ND070150 | [1] | LEVEL GAUGE | STA |
| 22. | ND102098 | [1] | THERMOSTAT | STA |
| 23. | ND067788 | [1] | VALVE | STA |
| 24. | ND098754 | [1] | SENSOR | STA |
| 25. | ND067773 | [1] | COCK | STA |
| 28. | ND062154 | [1] | HYD CONNECTOR | STA |
| 29. | ND062140 | [2] | HYD CONNECTOR | STA |
| 30. | ND062161 | [1] | HYD CONNECTOR | STA |
| 31. | ND062162 | [2] | HYD CONNECTOR | STA |
| 32. | ND062185 | [1] | HYD CONNECTOR | STA |
| 37. | ND079933 | [1] | O-RING | STA |
| 38. | ND079937 | [1] | O-RING | STA |
| 39. | ND079938 | [11] | O-RING | STA |
| 41. | ND073401 | [1] | RING | STA |
| 42. | ND102045 | [1] | SNAP RING | STA34 |
| 43. | ND069890 | [2] | SNAP RING | STA72 |
| 44. | ND073356 | [1] | PACKING RING | STA14 x 18 x 1,5 |
| 45. | ND073363 | [1] | O-RING | STA27 x 32 x 2 |
| 46. | ND103221 | [1] | SEALING STRIP | STA1500mm |
| 47. | ND064814 | [1] | CLAMP | STA |
| 50. | ND024234 | [2] | BOLT | STAM6 x 30 |
| 52. | ND021710 | [26] | STUD | STAM6 x 20 |
| 53. | ND021311 | [6] | BOLT | STAM12 x 40 |
| 57. | ND021847 | [26] | NUT | STAM6 |
| 59. | ND021848 | [4] | NUT | STAM8 Superseded by part number: ND034087 |
| 60. | ND021850 | [6] | NUT | STAM12 |
| 63. | ND029248 | [2] | WASHER | STAID 6,4 |
| 64. | ND029309 | [26] | SPRING WASHER | STAID 6,1 |
| 65. | ND035940 | [4] | SPRING WASHER | STAID 8 |
| 67. | ND035942 | [6] | WASHER | STAID 12 |
| 68. | ND029251 | [6] | WASHER | STAID 13 |
| 71. | ND037453 | [1] | LEADSEAL | STA |
| 72. | ND100090 | [1] | CABLE | STA |
