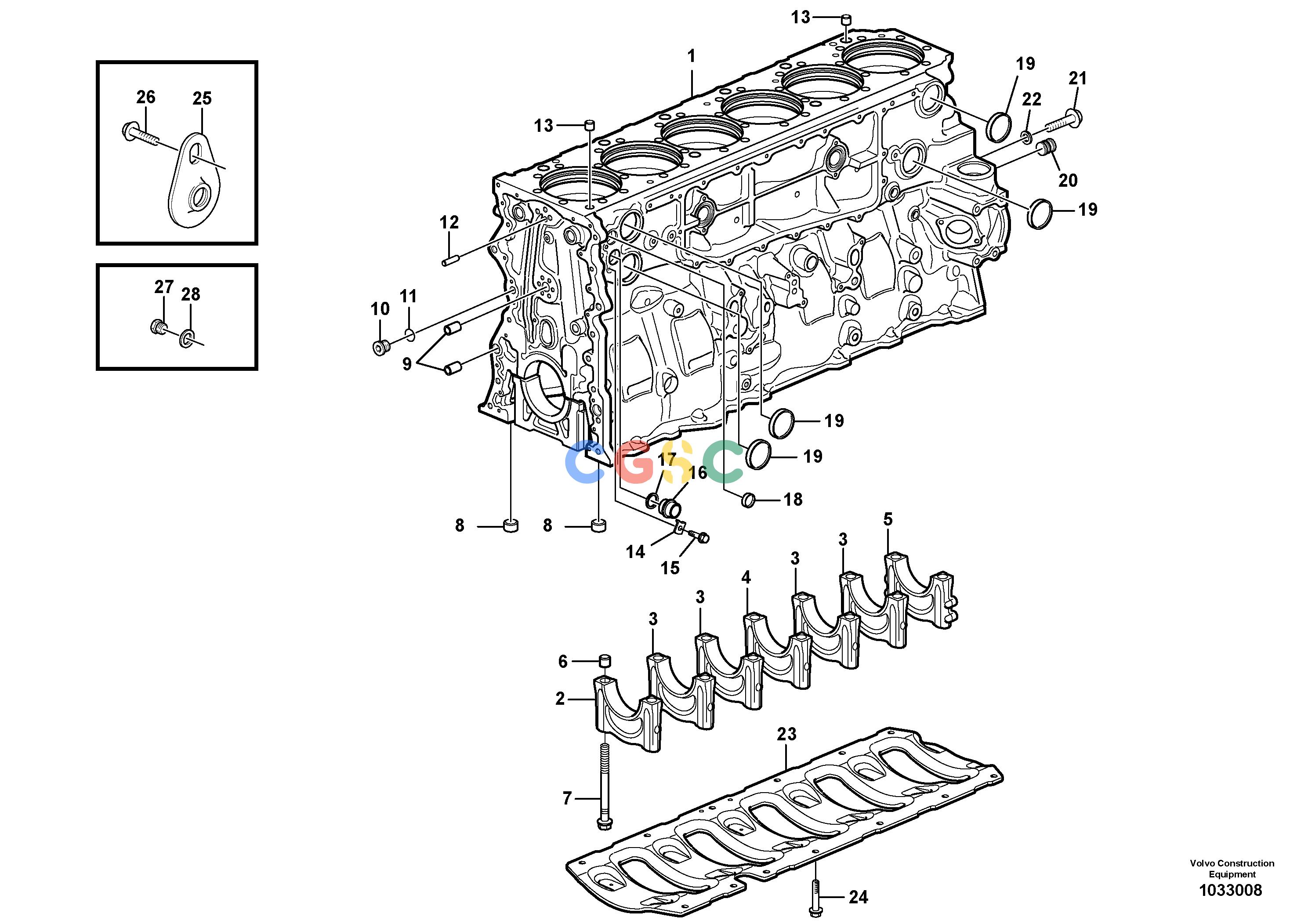

沃尔沃零件查询A40E FS Cylinder blockFULL SUSPENSION S/N 11001 - 13845 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
757 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE21341905
|
[1] |
Cylinder block
|
|
| 1. |
VOE21168785
|
[1] |
Cylinder Block
|
|
| 2. |
VOE20756160
|
[1] |
Main bearing cap
|
|
| 3. |
VOE20756161
|
[4] |
Main bearing cap
|
|
| 4. |
VOE20756162
|
[1] |
Main bearing cap
|
|
| 5. |
VOE20756163
|
[1] |
Main bearing cap
|
|
| 6. |
VOE8131967
|
[14] |
Guide Sleeve
|
|
| 7. |
VOE20581443
|
[14] |
Flange screw
|
|
| 8. |
VOE417588
|
[2] |
Guide sleeve
|
|
| 9. |
VOE8131145
|
[2] |
Guide sleeve
|
|
| |
VOE20529445
|
[2] |
Plug
|
|
| 10. |
VOE13968610
|
[2] |
Plug
|
|
| 11. |
VOE13976109
|
[2] |
O-ring
|
|
| 12. |
VOE950588
|
[1] |
Pin
|
|
| 13. |
VOE20485996
|
[2] |
Guide sleeve
|
|
| 14. |
VOE20844430
|
[1] |
Lock brace
|
|
| 15. |
VOE946440
|
[1] |
Flange screw
|
|
| 16. |
VOE20567779
|
[1] |
Plug
|
|
| 17. |
VOE21940615
|
[1] |
Sealing ring
|
|
| 18. |
VOE24426721
|
[1] |
Expansion plug
|
|
| 19. |
VOE8131937
|
[4] |
Expansion plug
|
|
| 20. |
VOE20562189
|
[2] |
Plug
|
|
| 21. |
VOE13966378
|
[1] |
Flange screw
|
|
| 22. |
VOE13960141
|
[1] |
Washer
|
|
| 23. |
VOE20722628
|
[1] |
Frame
|
|
| 24. |
VOE975110
|
[13] |
Flange screw
|
|
| 25. |
VOE20740148
|
[1] |
Yoke
|
|
| 26. |
VOE946440
|
[1] |
Flange screw
|
|
| 27. |
VOE960631
|
[1] |
Plug
|
|
| 28. |
VOE13947622
|
[1] |
Plane gasket
|
|
