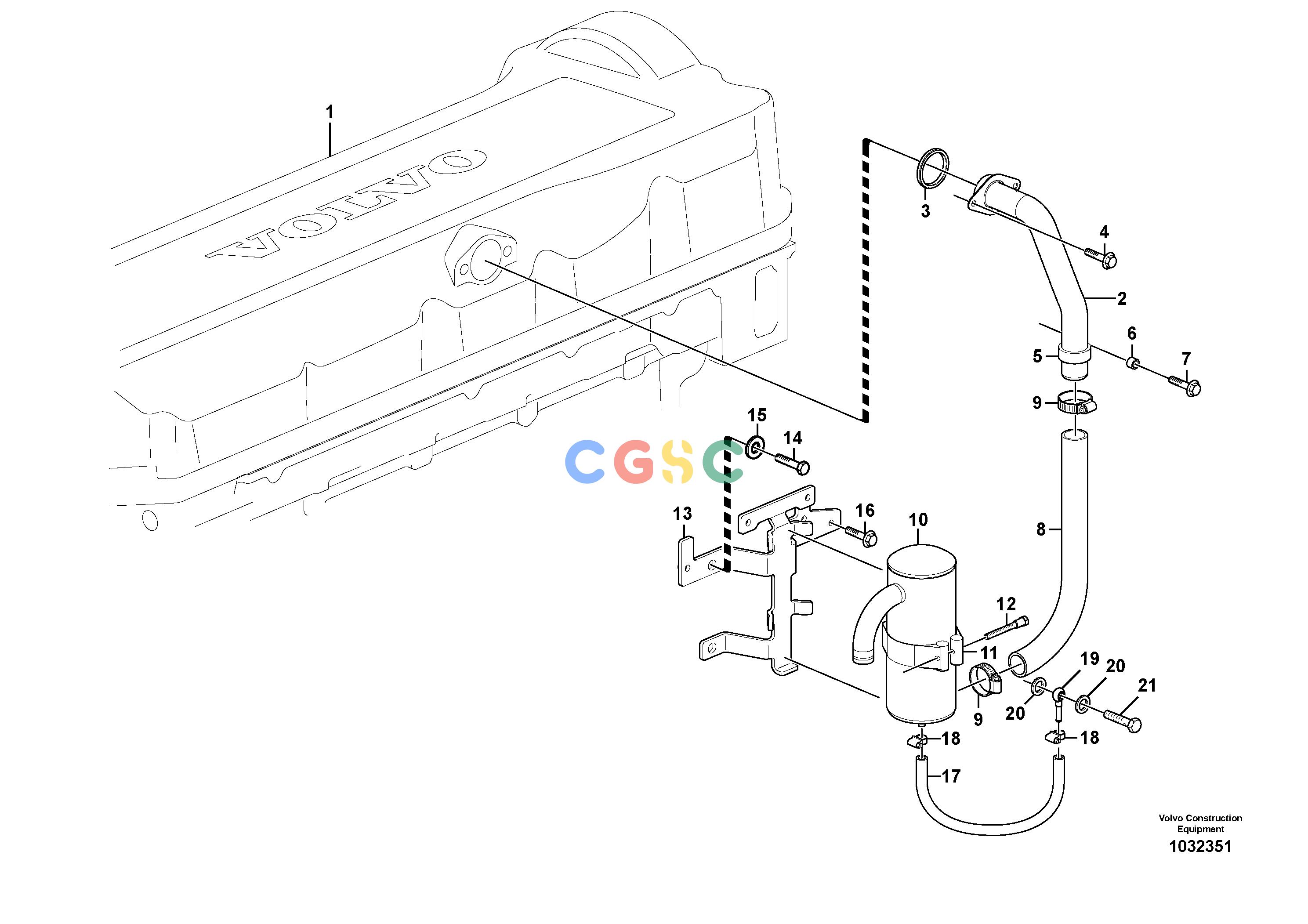

沃尔沃零件查询A40E FS Crankcase ventilationFULL SUSPENSION S/N 11001 - 13845 NoneNone8188184, 8188185, 8188188, 8188189Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Valve Cover
|
|
| 2. |
VOE11158406
|
[1] |
Breather pipe
|
|
| 3. |
VOE20723207
|
[1] |
Sealing ring
|
|
| 4. |
VOE946440
|
[2] |
Flange screw
|
|
| 5. |
VOE981904
|
[1] |
Clamp
|
|
| 6. |
VOE847150
|
[1] |
Spacer sleeve
|
|
| 7. |
VOE60113082
|
[1] |
Flange screw
|
|
| 8. |
VOE15136076
|
[REQ] |
Hose
|
L = 650 MM
ENG - 42018
|
| 8. |
VOE15136076
|
[1] |
Hose
|
ENG 42019 -
|
| 9. |
VOE943476
|
[2] |
Hose clamp
|
|
| 10. |
VOE11033878
|
[1] |
Oil trap
|
|
| 11. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 12. |
VOE1545257
|
[1] |
Screw
|
|
| 13. |
VOE11158445
|
[1] |
Bracket
|
|
| 14. |
VOE955362
|
[2] |
Hexagon screw
|
|
| 15. |
VOE941912
|
[2] |
Spring washer
|
|
| 16. |
VOE946440
|
[1] |
Flange screw
|
|
| 17. |
VOE983342
|
[REQ] |
Hose
|
L = 420 MM
|
| 18. |
VOE943470
|
[2] |
Hose clamp
|
|
| 19. |
VOE11423224
|
[1] |
Tube
|
|
| 20. |
VOE13969011
|
[2] |
Gasket
|
|
| 21. |
VOE60113509
|
[1] |
Hollow screw
|
|
