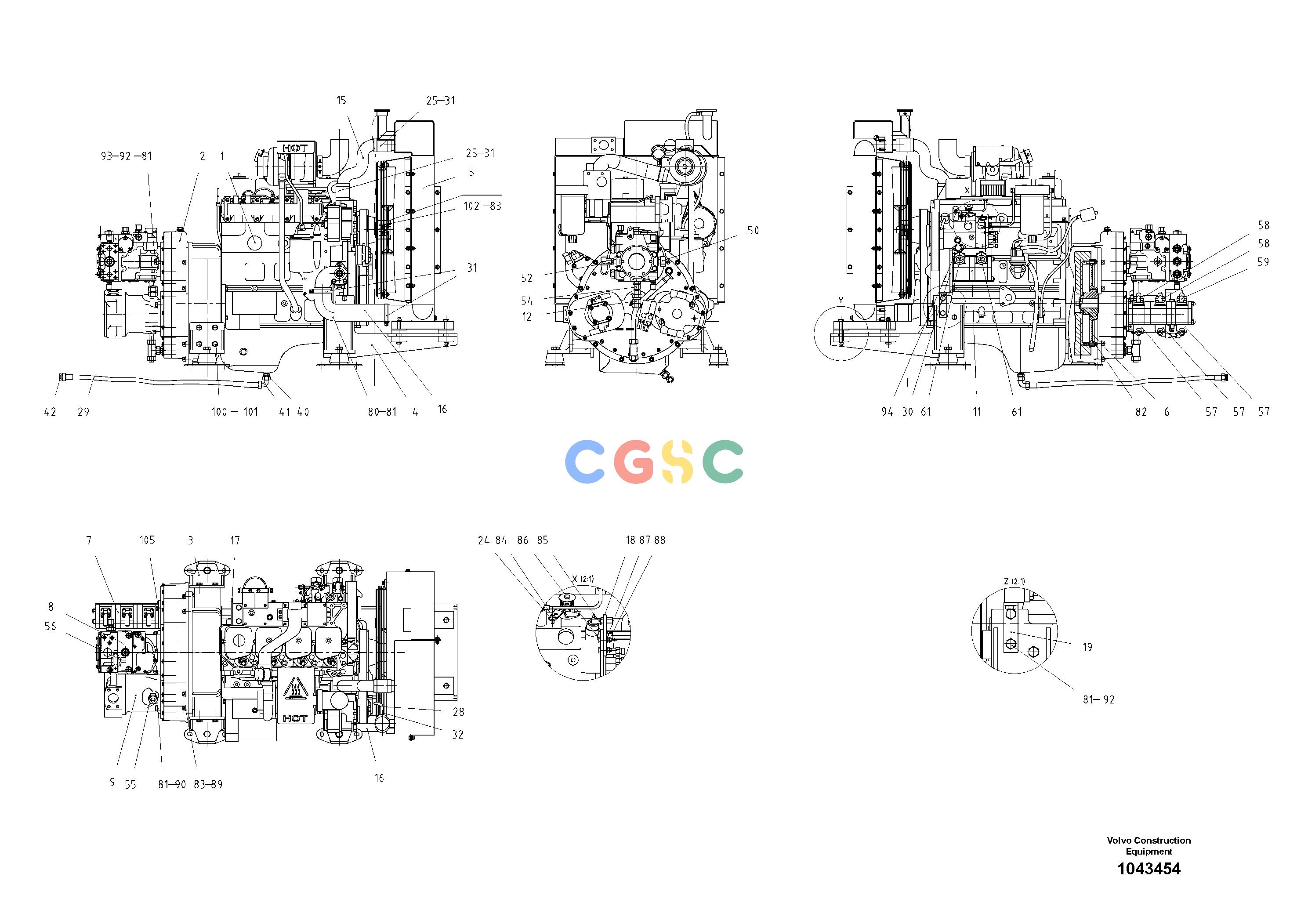

沃尔沃零件查询ABG3870 Basic EngineS/N 20538 -87977245_5105-NoneNoneNone87977245Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
463 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM80627086
|
[1] |
Engine
|
4BT4.5-C99
|
| 10. |
RM80751290
|
[1] |
Cover
|
S/N 17783-
|
| 11. |
RM80684582
|
[1] |
Gear pump
|
|
| 12. |
RM14156582
|
[1] |
Valve
|
S/N 16241-
|
| 13. |
RM80810773
|
[1] |
Guard plate
|
S/N 19075-
|
| 14. |
RM80817547
|
[1] |
Clamp
|
S/N 19075-
|
| 15. |
RM80663552
|
[1] |
Radiator piping
|
|
| 16. |
RM80721475
|
[1] |
Elbow
|
S/N 16804-
|
| 17. |
RM80679988
|
[1] |
Retainer
|
|
| 18. |
RM80676646
|
[1] |
Retainer
|
|
| 19. |
RM80700917
|
[1] |
Bracket
|
|
| 2. |
RM87959326
|
[1] |
Housing
|
|
| 20. |
RM80734528
|
[1] |
Tube
|
S/N 19075-
|
| 24. |
RM13915335
|
[1] |
Nipple
|
|
| 25. |
RM80699499
|
[2] |
Sleeve
|
|
| 28. |
RM80699507
|
[1] |
Hose
|
|
| 29. |
RM80708407
|
[1] |
Hose
|
S/N 16241-, 1SN 16 X 1100
|
| 30. |
RM54765573
|
[1] |
O-ring
|
S/N 16241-
|
| 31. |
RM14144844
|
[6] |
Clip
|
S/N 16804-
|
| 32. |
RM13907506
|
[1] |
Hose clamp
|
|
| 35. |
RM80751316
|
[1] |
O-ring
|
S/N 17783-
|
| 40. |
RM14198550
|
[1] |
Stud
|
S/N 16241-
|
| 3. |
RM80696784
|
[2] |
Engine anchorage
|
REAR
|
| 41. |
RM14105944
|
[1] |
Fitting
|
|
| 42. |
RM56240153
|
[1] |
Plug
|
S/N 16241-
|
| 50. |
RM14156921
|
[1] |
Stud
|
|
| 51. |
VOE11306490
|
[2] |
Nipple
|
|
| 52. |
RM13953625
|
[2] |
Stud
|
|
| 53. |
RM14156939
|
[2] |
Coupling piece
|
|
| 54. |
RM14281562
|
[1] |
Fitting screw
|
S/N 16241-
|
| 55. |
RM14280432
|
[1] |
Stud
|
|
| 56. |
RM13977541
|
[1] |
Stud
|
|
| 57. |
RM13929435
|
[3] |
Elbow
|
|
| 4. |
RM80696776
|
[1] |
Bracket
|
FRONT
|
| 58. |
RM13905765
|
[2] |
Elbow
|
|
| 59. |
RM13905757
|
[1] |
Connection flange
|
S/N 16241-
|
| 61. |
RM80712862
|
[2] |
Flange
|
S/N 16241-
|
| 80. |
RM96718887
|
[4] |
Hexagon screw
|
S/N 16241-
|
| 81. |
RM14261002
|
[10] |
Lock washer
|
|
| 82. |
RM14262109
|
[8] |
Hexagon screw
|
|
| 83. |
RM13907761
|
[12] |
Lock washer
|
|
| 84. |
RM96714159
|
[1] |
Hexagon screw
|
|
| 85. |
RM13908967
|
[1] |
Screw
|
|
| 86. |
RM96714241
|
[3] |
Hexagon screw
|
|
| 5. |
RM87977237
|
[1] |
Oil cooler
|
|
| 87. |
RM58832916
|
[3] |
Lock washer
|
|
| 88. |
RM14083448
|
[3] |
Jam nut
|
|
| 89. |
RM96719398
|
[8] |
Hex. socket screw
|
|
| 90. |
RM96753447
|
[2] |
Hexagon screw
|
S/N 19075-
|
| 92. |
RM96701966
|
[4] |
Hexagon screw
|
S/N 19075-
|
| 93. |
RM96726112
|
[2] |
Plain washer
|
|
| 94. |
RM96714050
|
[2] |
Hexagon screw
|
|
| 95. |
RM96713235
|
[2] |
Hexagon screw
|
S/N 19075-
|
| 96. |
RM96718820
|
[1] |
Hexagon screw
|
S/N 19075-
|
| 97. |
RM58854316
|
[3] |
Lock washer
|
S/N 19075-
|
| 6. |
RM80626344
|
[1] |
Coupling piece
|
|
| 100. |
RM96719810
|
[8] |
Screw
|
S/N 16241-
|
| 101. |
RM14261010
|
[8] |
Lock washer
|
S/N 16241-
|
| 102. |
RM96744503
|
[4] |
Hexagon screw
|
S/N 16241-
|
| 105. |
RM96713847
|
[2] |
Hex. socket screw
|
S/N 16241-
|
| 7. |
RM80679210
|
[1] |
Gear pump
|
|
| 8. |
RM80617624
|
[1] |
Hydraulic pump
|
90L042
|
| 9. |
RM80617632
|
[1] |
Hydraulic pump
|
A10VO 45
|
