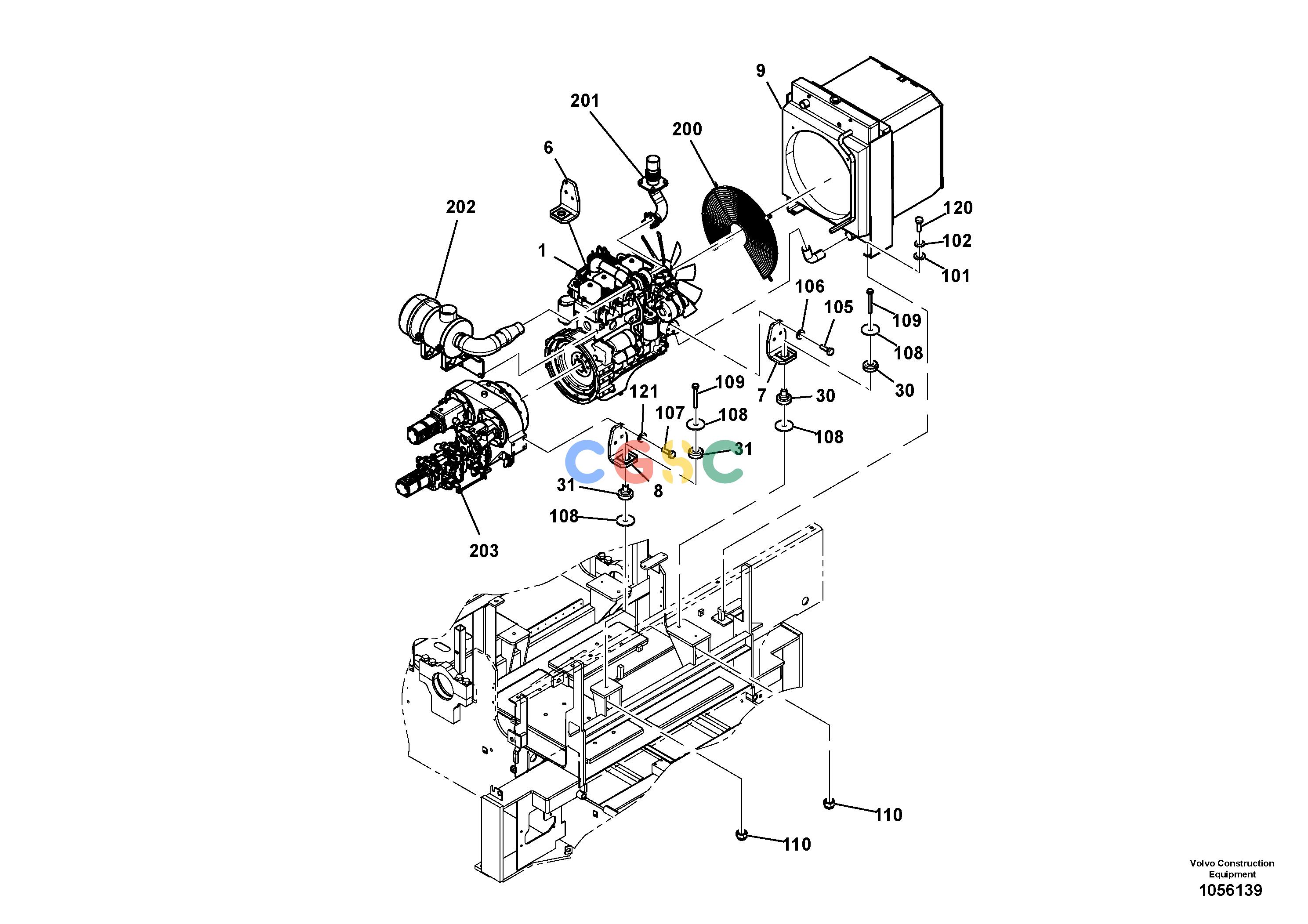

沃尔沃零件查询ABG4361 Engine InstallationS/N 0847508050 - 8068 S/N 08 - 7570916606_0301-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
359 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM70911029
|
[1] |
Engine
|
|
| 6. |
RM70785571
|
[1] |
Bracket
|
|
| 7. |
RM70785563
|
[1] |
Bracket
|
|
| 8. |
RM70785589
|
[2] |
Bracket
|
|
| 9. |
|
[1] |
Installation kit
|
|
| 30. |
RM70811054
|
[2] |
Shock absorber
|
|
| 31. |
RM70811062
|
[2] |
Shock absorber
|
|
| 101. |
RM96719646
|
[24] |
Plain washer
|
|
| 102. |
RM13907761
|
[10] |
Lock washer
|
|
| 105. |
RM96718887
|
[6] |
Hexagon screw
|
|
| 106. |
RM70155668
|
[6] |
Washer
|
|
| 107. |
RM96753454
|
[8] |
Hexagon screw
|
|
| 108. |
RM94071909
|
[8] |
Washer
|
|
| 109. |
RM70154612
|
[4] |
Bolt
|
|
| 110. |
RM10641355
|
[4] |
Jam nut
|
|
| 120. |
RM96713326
|
[4] |
Hexagon screw
|
|
| 121. |
RM70155684
|
[8] |
Washer
|
|
| 200. |
|
[1] |
Fan Guard
|
|
| 201. |
|
[1] |
Exhaust Pipe
|
|
| 202. |
|
[1] |
Air Cleaner
|
|
| 203. |
|
[1] |
Gearbox
|
|
