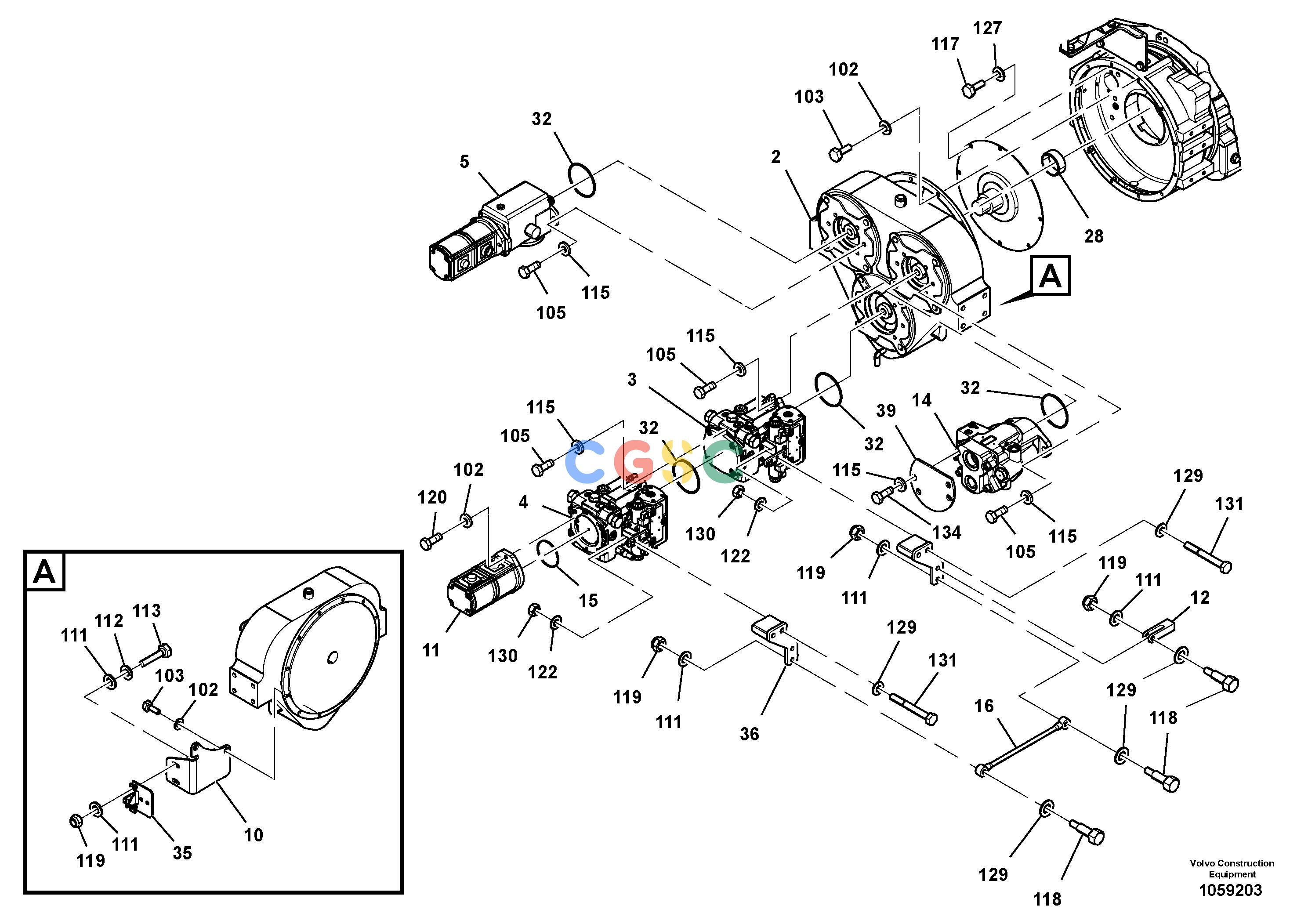

沃尔沃零件查询ABG4361 Engine InstallationS/N 0847508050 - 8068 S/N 08 - 7570916606 0304-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
497 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
RM70845151
|
[1] |
Transmission
|
TRIPPLE OUTPUT
|
| 3. |
RM80762065
|
[1] |
Hydraulic pump
|
|
| |
VOE17218608
|
[1] |
Hydraulic control
|
|
| |
VOE17218600
|
[1] |
Sealing kit
|
|
| |
VOE15103952
|
[2] |
Relief valve
|
|
| |
VOE15103193
|
[1] |
Relief valve
|
|
| |
RM54447057
|
[1] |
Shut-off valve
|
|
| |
VOE15179599
|
[2] |
Nozzle
|
|
| |
VOE15179598
|
[1] |
Nozzle
|
|
| |
VOE17218593
|
[1] |
Sealing kit
|
|
| |
VOE17218598
|
[1] |
Sealing kit
|
|
| 4. |
RM80762073
|
[1] |
Hydraulic pump
|
|
| 5. |
RM70781489
|
[1] |
Hydraulic pump
|
3 SECTION
|
| 5. |
RM70814801
|
[1] |
Sealing kit
|
|
| 5. |
RM70814819
|
[1] |
Sealing kit
|
|
| 5. |
RM70814827
|
[1] |
Sealing kit
|
|
| 5. |
RM70814835
|
[1] |
Sealing kit
|
|
| 10. |
RM70875018
|
[1] |
Bracket
|
|
| 11. |
RM80762099
|
[1] |
Gear pump
|
|
| 11. |
VOE17242569
|
[1] |
O-ring
|
|
| 11. |
VOE241625
|
[1] |
Sealing ring
|
|
| 11. |
VOE244432
|
[1] |
Sealing kit
|
|
| 12. |
RM70113428
|
[1] |
Clevis
|
|
| 14. |
RM80765977
|
[1] |
Hydraulic pump
|
|
| 15. |
RM95988796
|
[1] |
O-ring
|
|
| 16. |
RM70871751
|
[1] |
Track rod
|
|
| 28. |
RM59532093
|
[1] |
Adapter
|
|
| 32. |
RM70084975
|
[2] |
O-ring
|
S/N - 50065
|
| 32. |
RM70084975
|
[4] |
O-ring
|
S/N 50066 -
|
| 35. |
RM70037494
|
[1] |
Double clamp
|
|
| 36. |
RM70875588
|
[2] |
Bracket
|
|
| 39. |
RM80751290
|
[1] |
Cover
|
S/N 50066 -
|
| 102. |
RM13907761
|
[8] |
Lock washer
|
|
| 103. |
RM96713318
|
[8] |
Hexagon screw
|
|
| 105. |
RM96718887
|
[8] |
Hexagon screw
|
|
| 111. |
RM96719729
|
[7] |
Plain washer
|
|
| 112. |
RM58832916
|
[4] |
Lock washer
|
|
| 113. |
RM96714258
|
[4] |
Hexagon screw
|
|
| 115. |
RM14261002
|
[8] |
Lock washer
|
S/N - 50065
|
| 115. |
RM14261002
|
[10] |
Lock washer
|
S/N 50066 -
|
| 117. |
RM95919197
|
[8] |
Hexagon screw
|
|
| 118. |
RM70892104
|
[3] |
Bolt
|
|
| 119. |
RM14083448
|
[5] |
Jam nut
|
|
| 120. |
RM96713326
|
[2] |
Hexagon screw
|
|
| 122. |
RM58854316
|
[4] |
Lock washer
|
|
| 127. |
RM95081857
|
[8] |
Lock washer
|
|
| 129. |
VOE60110236
|
[7] |
Plain washer
|
|
| 130. |
RM96712799
|
[4] |
Hexagon nut
|
|
| 131. |
RM96713417
|
[4] |
Hexagon screw
|
|
| 134. |
VOE997446
|
[2] |
Hexagon screw
|
S/N 50066 -
|
