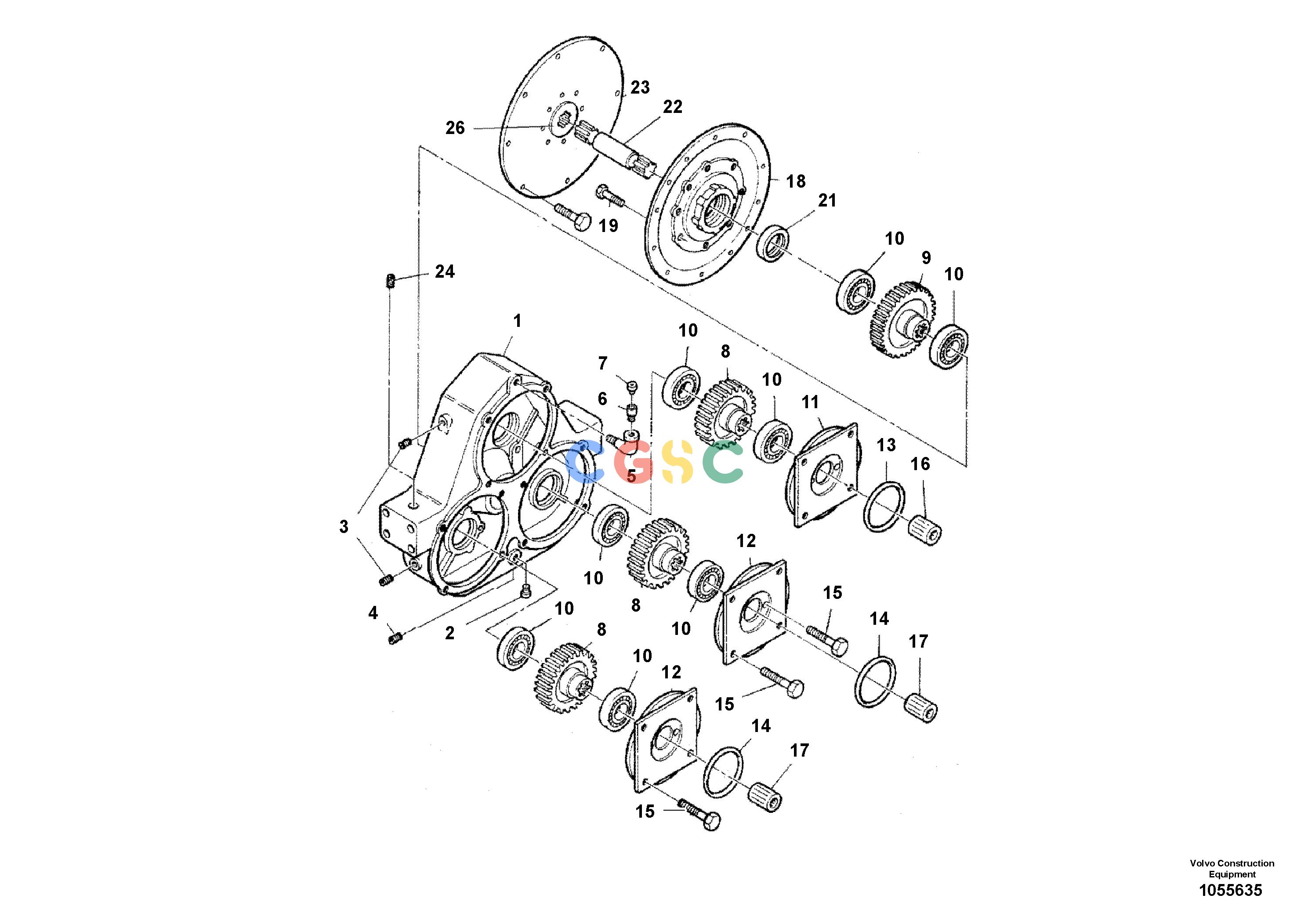

沃尔沃零件查询ABG4361 TransmissionS/N 0847508050 - 8068 S/N 08 - 75 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
857 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
RM70845151
|
[1] |
Transmission
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
|
[1] |
Plug
|
|
| 3. |
|
[2] |
Pipe Plug
|
|
| 4. |
|
[1] |
Pipe Plug
|
|
| 5. |
|
[1] |
Fitting
|
|
| 6. |
|
[1] |
Bushing
|
|
| 7. |
|
[1] |
Venting
|
|
| 8. |
|
[3] |
Gear
|
|
| 9. |
|
[1] |
Gear
|
|
| 10. |
RM94183209
|
[8] |
Bearing
|
|
| 11. |
|
[1] |
Adapter
|
|
| 12. |
|
[2] |
Adapter
|
|
| 13. |
RM70064183
|
[1] |
O-ring
|
|
| 14. |
RM70064183
|
[2] |
O-ring
|
|
| 15. |
RM94036829
|
[6] |
Hexagon screw
|
|
| 16. |
RM70667613
|
[1] |
Sleeve
|
|
| 17. |
RM70781976
|
[2] |
Sleeve Adapter
|
|
| 18. |
|
[1] |
Cover
|
|
| 19. |
|
[7] |
Hexagon screw
|
|
| 21. |
|
[1] |
Sealing
|
|
| 22. |
RM70564778
|
[1] |
Drive shaft
|
|
| 23. |
RM70559133
|
[1] |
Plate
|
|
| 24. |
|
[5] |
Plug
|
|
| 26. |
RM70559125
|
[1] |
Hub
|
|
