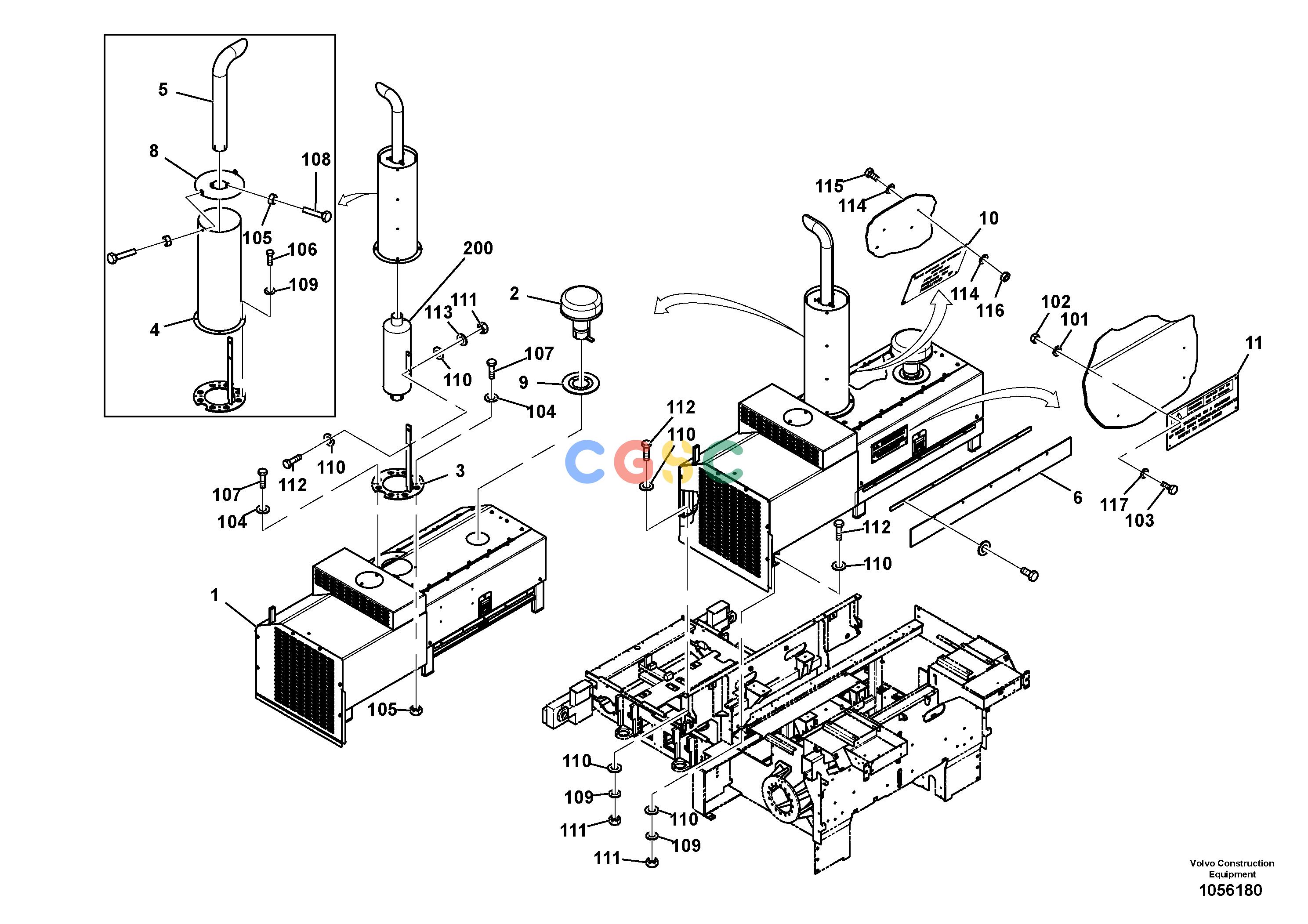

沃尔沃零件查询ABG4361 Engine Canopy InstallationS/N 0847508050 - 8068 S/N 08 - 7570890355_0001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
332 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM70914551
|
[1] |
Canopy
|
|
| 11. |
RM70790431
|
[1] |
Name plate
|
SAFETY DRIVING
|
| 101. |
RM96719729
|
[4] |
Plain washer
|
|
| 102. |
RM96712781
|
[4] |
Hexagon nut
|
|
| 103. |
RM96714233
|
[4] |
Hexagon screw
|
|
| 104. |
VOE60110236
|
[6] |
Plain washer
|
|
| 105. |
RM96712799
|
[5] |
Hexagon nut
|
|
| 106. |
RM96713177
|
[4] |
Hexagon screw
|
|
| 107. |
RM96705587
|
[4] |
Hexagon screw
|
|
| 108. |
RM96702261
|
[3] |
Hexagon screw
|
|
| 109. |
RM58854316
|
[10] |
Lock washer
|
|
| 2. |
RM70805882
|
[1] |
Bonnet
|
|
| 110. |
RM96719646
|
[16] |
Plain washer
|
|
| 111. |
VOE971071
|
[8] |
Hexagon nut
|
|
| 112. |
RM96704309
|
[8] |
Hexagon screw
|
|
| 113. |
RM13907761
|
[2] |
Lock washer
|
|
| 114. |
RM94327905
|
[8] |
Plain washer
|
|
| 115. |
RM96705728
|
[4] |
Hexagon screw
|
|
| 116. |
RM96712773
|
[4] |
Hexagon nut
|
|
| 117. |
RM58832916
|
[4] |
Lock washer
|
|
| 200. |
RM70887682
|
[1] |
Silencer
|
|
| 3. |
RM70896600
|
[1] |
Bracket
|
|
| 4. |
RM70896915
|
[1] |
Cover
|
|
| 5. |
RM70790233
|
[1] |
Exhaust pipe
|
|
| 6. |
RM70789847
|
[1] |
Rubber plate
|
|
| 8. |
RM70626106
|
[1] |
Cover plate
|
TOP
|
| 9. |
RM70826425
|
[1] |
Rubber bushing
|
|
| 10. |
RM20956223
|
[1] |
Sign
|
NO SMOKING, 00700-350-00
|
