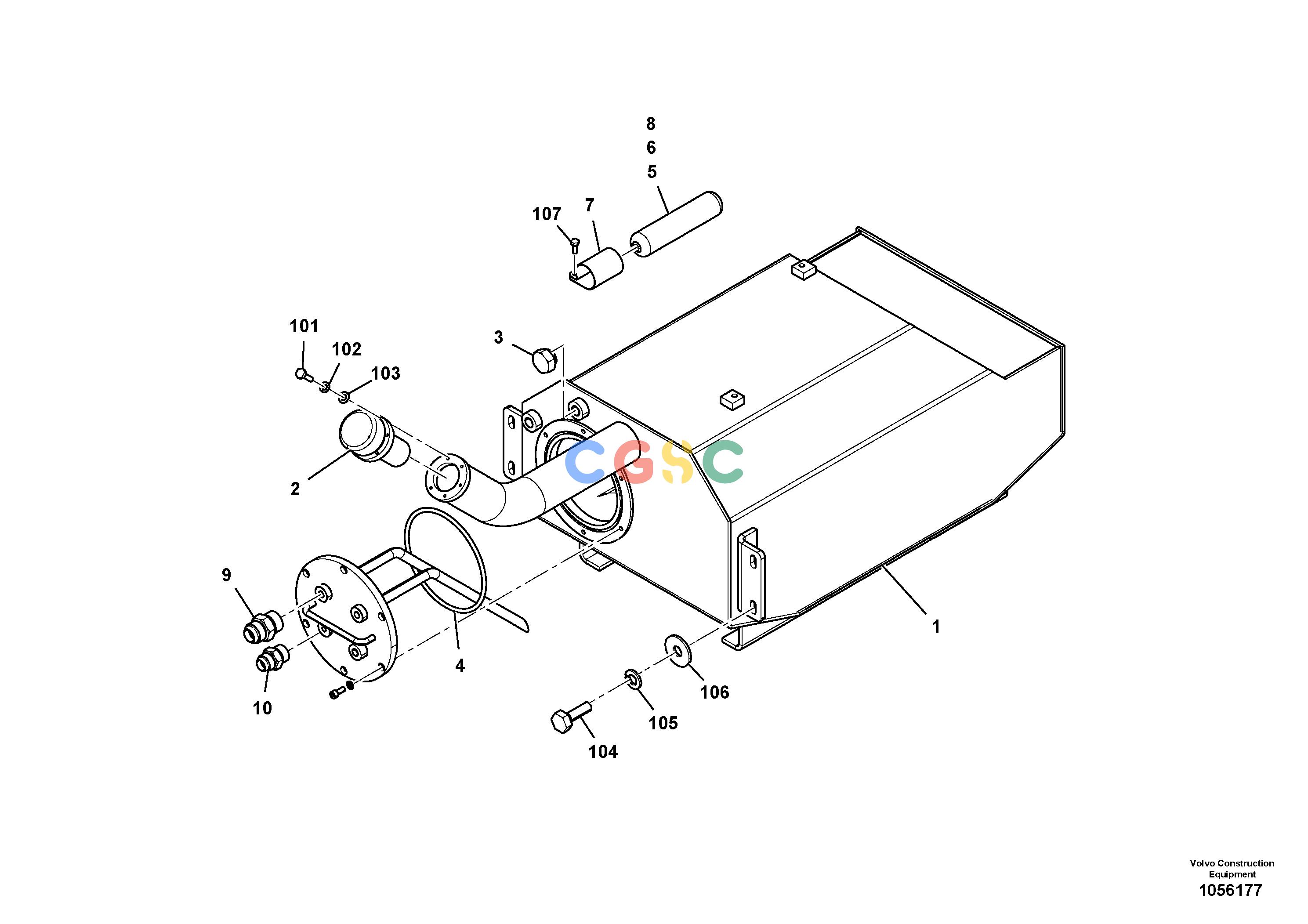

沃尔沃零件查询ABG4361 Fuel Tank InstallationS/N 0847508050 - 8068 S/N 08 - 7570786231_0001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
622 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM70784871
|
[1] |
Fuel tank
|
|
| 10. |
RM70625926
|
[1] |
Adapter
|
|
| 101. |
RM96705728
|
[6] |
Hexagon screw
|
|
| 102. |
RM96751847
|
[6] |
Spring washer
|
|
| 103. |
RM94327905
|
[6] |
Plain washer
|
|
| 104. |
RM96713326
|
[4] |
Hexagon screw
|
|
| 105. |
RM13907761
|
[4] |
Lock washer
|
|
| 106. |
RM14084131
|
[4] |
Plain washer
|
|
| 107. |
RM96718820
|
[2] |
Hexagon screw
|
|
| 2. |
RM70629399
|
[1] |
Breather cap
|
|
| 3. |
RM94141009
|
[3] |
Plug
|
|
| 4. |
RM94329125
|
[1] |
O-ring
|
|
| 5. |
RM70800446
|
[1] |
Pump
|
|
| 6. |
RM70626403
|
[1] |
Unit
|
|
| 7. |
RM70629035
|
[1] |
Clamp
|
|
| 8. |
RM70625231
|
[1] |
T-nipple
|
|
| 9. |
RM97113963
|
[1] |
Adapter
|
|
